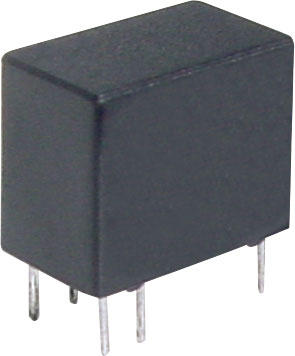

Relay 1A 12VDC SPDT PCB Mount Mini S4113
Relay 1A 12VDC SPDT PCB Mount Mini S4113
Regular price
$5.70
Regular price
Sale price
$5.70
Unit price
per
Taxes included.
Couldn't load pickup availability
A 1A SPDT PCB mount relay with sealed construction suitable for immersion cleaning. 12V DC coil.
Specifications
- Max Switching Voltage: 125V AC, 60V DC
- Max Switching Current: 1A DC
- Max VA (Watts): 62.5VA (30W)
- Contact Material: Gold Plated Silver
- Coil Resistance: 960Ω
- Max Coil Power: 150mw
- Insulation Resistance: >1000MΩ @ 500V DC
- Dielectric Strength (for 1 min):
- 400V AC between open contacts
- 1000V AC between coil & contact
- Electrical Life: 100,000 operations
- Mechanical Life: 5 million operations

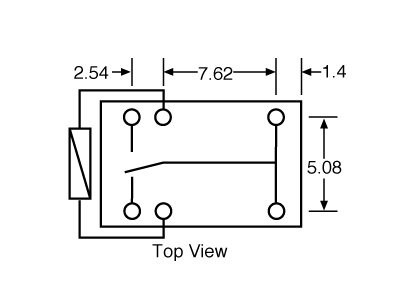

- Dimensions: ˜12.5W x 7.5L x 10H mm
