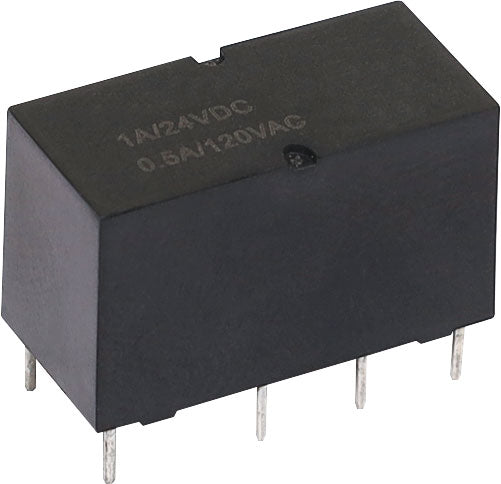

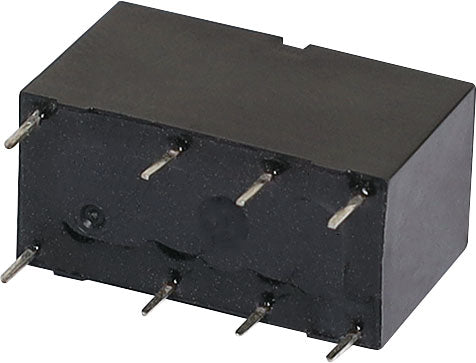

Relay 1A 24VDC DPDT PCB Mount Micro S4152
Relay 1A 24VDC DPDT PCB Mount Micro S4152
Regular price
$4.50
Regular price
Sale price
$4.50
Unit price
per
Taxes included.
Couldn't load pickup availability
1A DPDT micro relay. PCB mount style. 24V DC coil.
Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.
Specifications
- Max Switching Voltage: 250V AC, 220V DC
- Max switching Current: 0.5A AC, 1A DC
- Max VA (Watts): 125VA (30W)
- Contact Material: Silver Palladium
- Coil Resistance: 2880Ω
- Max Coil Power: 200mw
- Insulation Resistance: >1000MΩ @ 500V DC
- Dielectric Strength (for 1 min):
- 1500V AC between open contacts
- 1500V AC between coil & contact
- Electrical Life: 200,000 operations 1A 24V
- Mechanical Life: 10 million operations
- Dimensions: ˜10W x 20L x 15.5H mm
