Relay 24V 2A DPDT Miniature PCB Signal S4245
Relay 24V 2A DPDT Miniature PCB Signal S4245
Regular price
$6.85
Regular price
Sale price
$6.85
Unit price
per
Taxes included.
Pickup available at Leading Edge Electronics Gladstone Hi-Fi
Usually ready in 24 hours

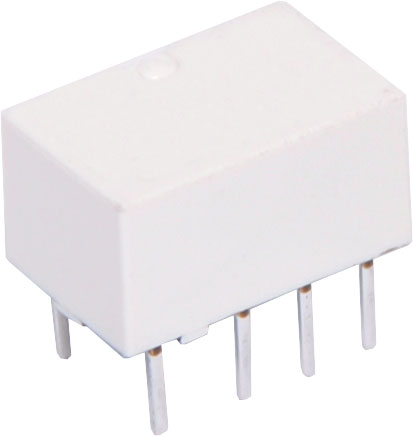

A compact 2A DPDT mini signal relay. PCB mount style. 24V DC coil.
Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.
Specifications
- Max AC Rating: 0.5A @ 125V
- Max DC Rating: 2A @ 30V
- Max Switching Power AC: 62VA
- Max Switching Power DC: 60W
- Contact Material: Silver palladium + Gold plated
- Coil Resistance (24V): 2880Ω
- Max Coil Power: 200mW
- Insulation Resistance: >1000MΩ @ 500V DC
- Dielectric Strength (for 1 min):
- 1000V AC between open contacts
- 1600V AC between coil & contact
- Life: 100,000 electrical 0.5A 125V, 10 million mechanical
- Dimensions: 10W x 6.5L x 5.4H mm
