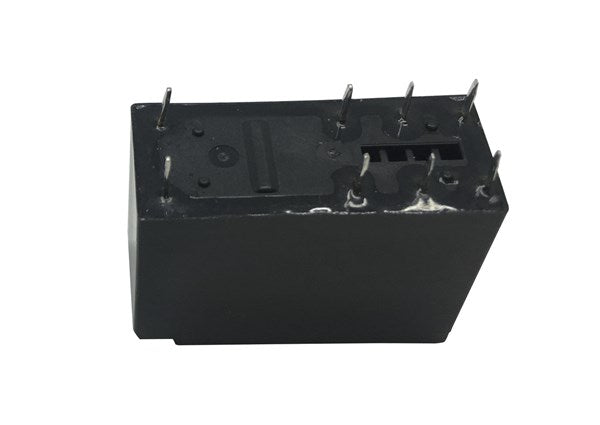

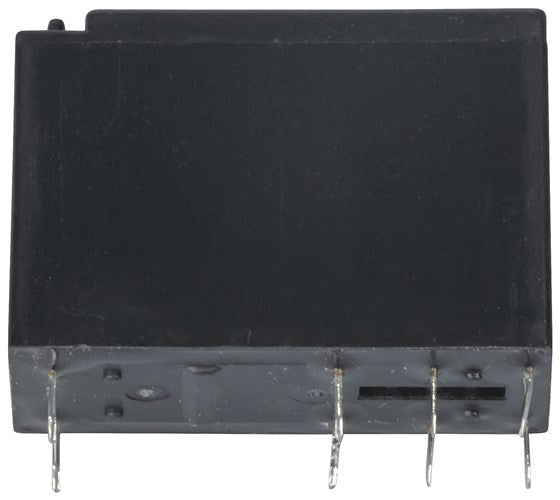

Relay 24V DPDT PC Mount Relay - JW Series SY4053

*24V DC
*Coil 1100 ohm
*2 x 5A @ 30VDC or 2 x 5A @ 250VAC contact rating

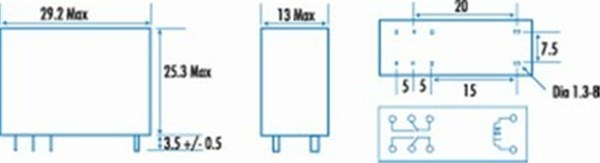

*Size: 29(W) x 12(D) x 29(H)mm

Specifications

Width : 29mm

Height : 25mm

Depth : 12mm

AC Voltage : 240V

AC Current Draw : 5A

DC Voltage : 24V

DC Current Draw : 5A

Packaged Volume : 0.01l

Packaged Weight : 0.02kg

Packaged Length : 2.8cm

Packaged Width : 1cm

Packaged Height : 3cm

Input : DC or AC Dual Mode

Contact format : DPDT

Coil Resistance : 1100Ω

AC Contact Voltage : 240V, 240V

AC Switching Current (Opening) : 5A, 5A

DC Contact Voltage : 24V, 24V

DC Switching Current (Opening) : 5A
