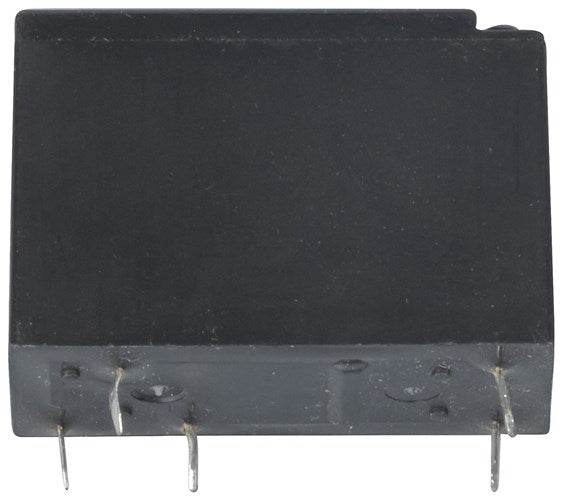

Relay 24V SPDT PC Mount Relay - JW Series SY4051
Relay 24V SPDT PC Mount Relay - JW Series SY4051
Regular price
$9.95
Regular price
Sale price
$9.95
Unit price
per
Taxes included.
Couldn't load pickup availability
Ideal for use in industrial, office and even home applications:
• Industrial: NC machines, robots, temperature, controllers
• Office: Photocopiers, vending machines
cHome: TV sets, VCR, microwave ovens
Features:
• Miniature package with universal terminal footprint
• High dielectric withstanding for transient protection: 10,000V surge in us between coil and contact
• Sealed construction
• Class B coil insulation
Specifications
| AC Voltage : 250V |
| AC Current Draw : 10A |
| DC Voltage : 24V |
| DC Current Draw : 10A |
| Packaged Volume : 0.01l |
| Packaged Weight : 0.01kg |
| Packaged Length : 3cm |
| Packaged Width : 2.5cm |
| Packaged Height : 1.2cm |
| Input : DC |
| Contact format : SPDT |
| Coil Resistance : 1Ω |
| AC Contact Voltage : 250V, 250V |
| AC Switching Current (Opening) : 5A, 5A |
| DC Contact Voltage : 30V, 30V |
| DC Switching Current (Opening) : 5A |
| Operation Time : 15ms |
| Release Time : 5ms |
