Relay 25A 12V SPDT PCB Mount S4144
Relay 25A 12V SPDT PCB Mount S4144
Regular price
$6.95
Regular price
Sale price
$6.95
Unit price
per
Taxes included.
Couldn't load pickup availability

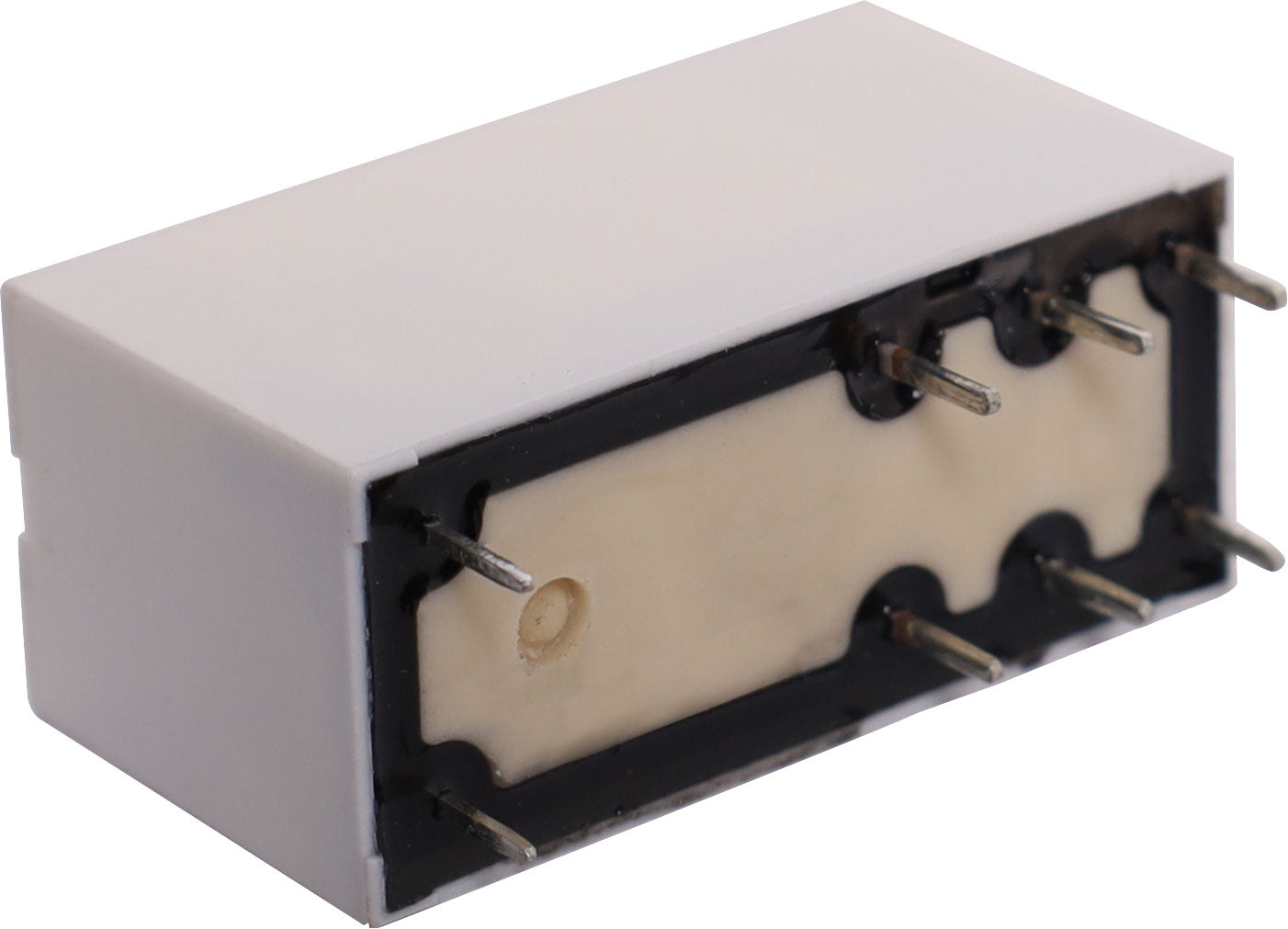

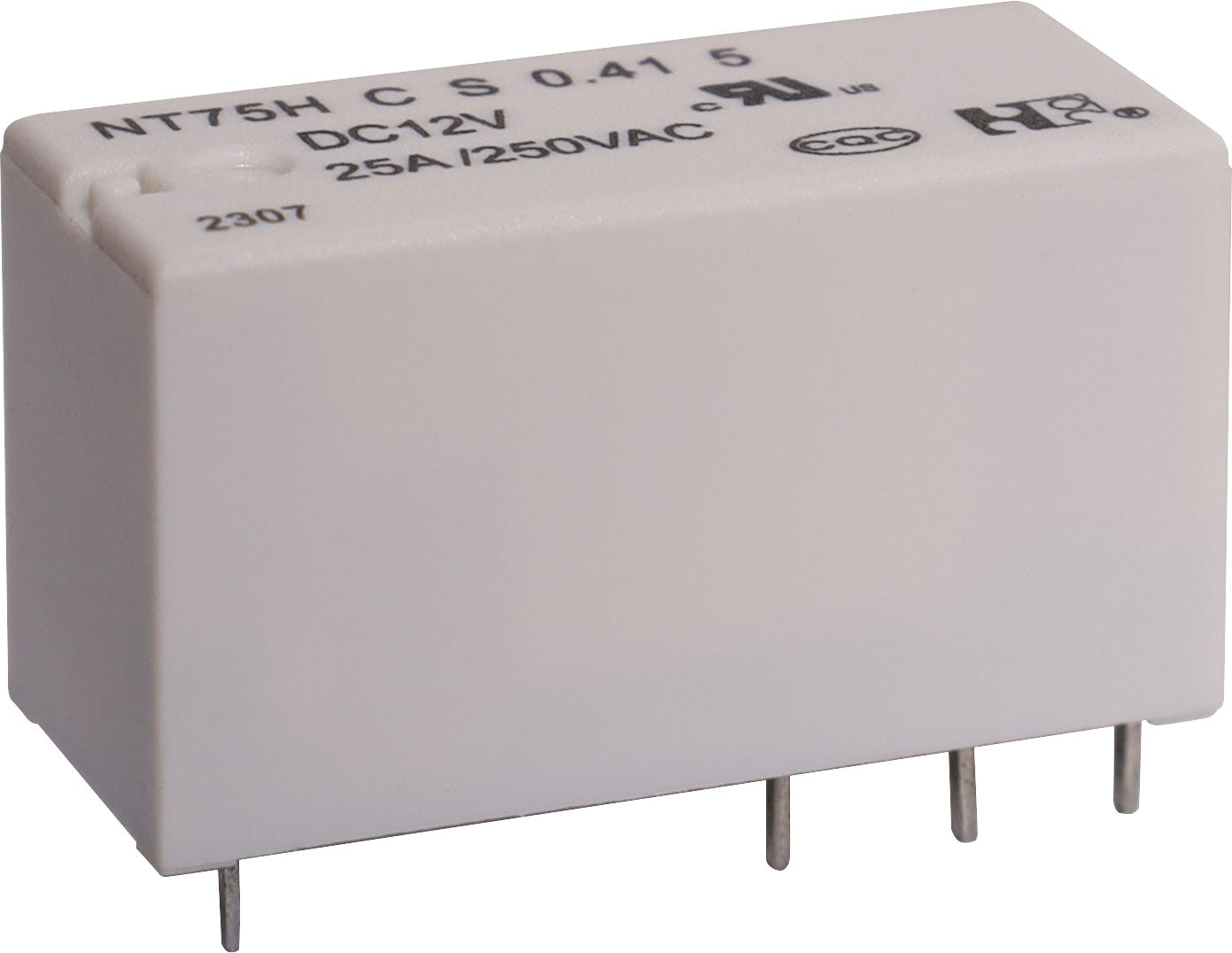

25A SPDT relay. PCB mount style. 12V DC coil.
Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing
Specifications
- Max AC switching rating: 25A @ 250V
- Max switching power AC: 6250VA
- Contact material: Silver alloy
- Coil resistance: 351Ω
- Max coil power: 410mW
- Insulation resistance: >1000MΩ @ 500V DC
- Dielectric strength (for 1 min): 1000V AC between open contacts, 5000V AC between coil & contact
- Electrical life: 80,000 operations
- Mechanical life: 10 million operations

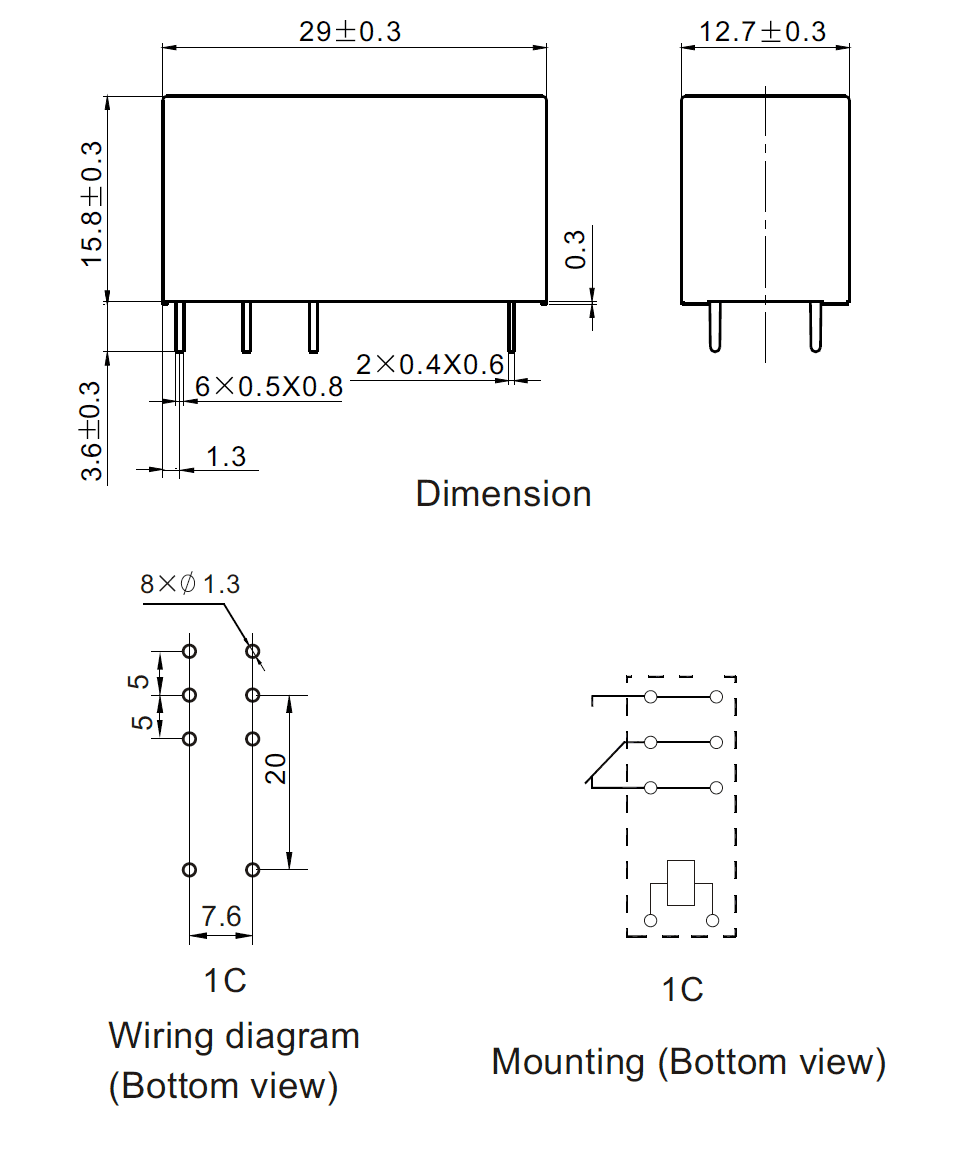

- Dimensions: ≈29W x 12.7L x 16H mm
- Sealed construction (immersion cleanable).
