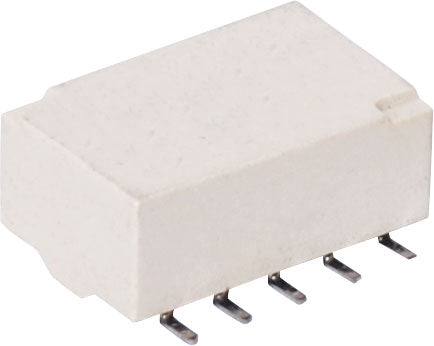

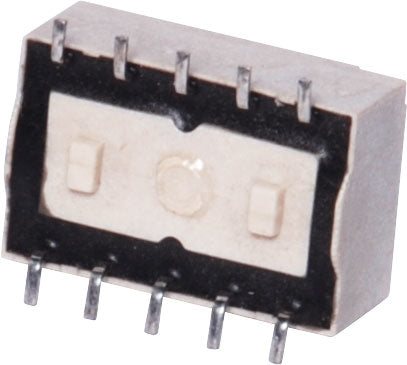

Relay 2A 5VDC DPDT SMD Telecom Relay S4134

Relay 2A 5VDC DPDT SMD Telecom Relay S4134

$6.00
$6.00
Sale Sold out
Taxes included.

2A DPDT telecommunications relay. SMD style. 5V DC coil.
Fully sealed construction, makes it ideal for immersion cleaning and large scale manufacturing.

Specification Sheet

Specifications

  • Max Switching Voltage: 250V AC, 220V DC
  • Max Switching Current: 0.5A AC, 2A DC (1A DC for UL approved applications)
  • Max VA (Watts): 62VA (30W)
  • Contact Material: Silver Palladium
  • Coil Resistance: 178Ω
  • Max Coil Power: 200mw
  • Insulation Resistance: >1000MΩ @ 500V DC
  • Dielectric Strength (for 1 min):
  • 1000V AC between open contacts
  • 1000V AC between coil & contact
  • Electrical Life: 200,000 operations 1A 24V
  • Mechanical Life: 10 million operations

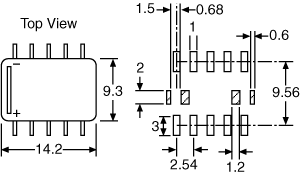

  • Dimensions: 14W x 9L x 5H mm
