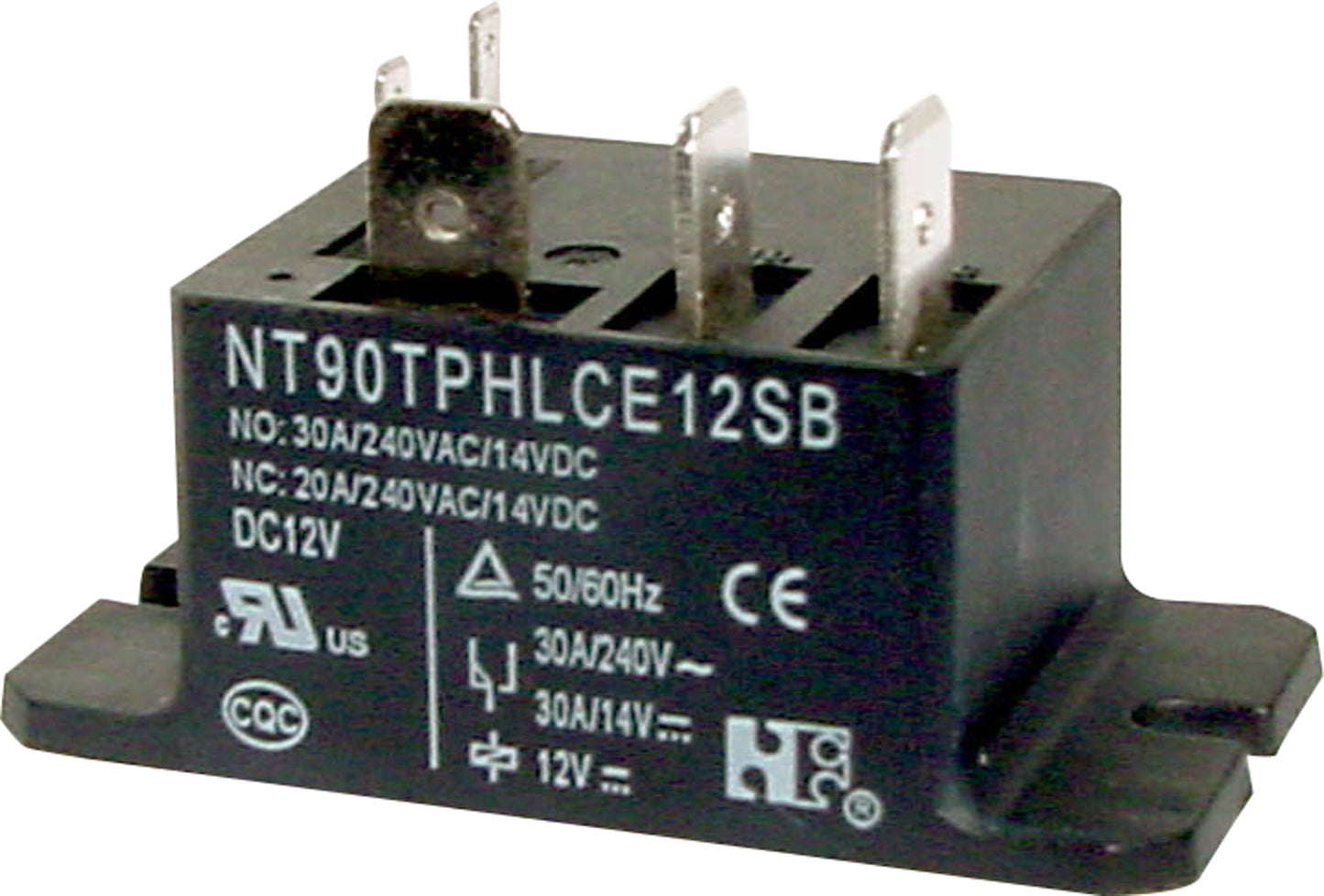

Relay 30A 12VDC SPDT Tag Connection S4211
Relay 30A 12VDC SPDT Tag Connection S4211
Regular price
$9.20
Regular price
Sale price
$9.20
Unit price
per
Taxes included.
Couldn't load pickup availability
30A SPDT relay. Tag connection style. 12V DC coil. 6.4mm spade terminals for NC, NO and Common connections. 2.7mm spade terminals for DC coil.
Specifications
- Max Switching Voltage: 250V AC
- Max Switching Current: 30A
- Max VA (Watts): 7200VA (1100W)
- Contact Material: Silver Nickel Alloy
- Coil Resistance: 160Ω
- Max Coil Power: 2.5W
- Insulation Resistance: >1000MΩ @ 500V DC
- Dielectric Strength (for 1 min):
- 1500V AC between open contacts
- 2500V AC between coil & contact
- Electrical Life: 100,000 operations
- Mechanical Life: 1 million operations
- Dimensions: ˜50W x 27L x 20H mm (excluding terminals)
