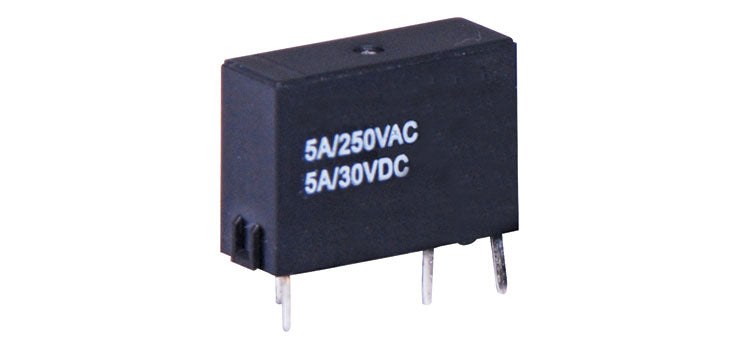

Relay 5A 5VDC SPST PCB Mount Mini S4230

5A SPST mini relay. PCB mount style. 5V DC coil.
Fully sealed construction makes it ideal for immersion cleaning and large scale manufacturing.

Max Switching Voltage AC: 250V
Max Switching Voltage DC: 30V
Max Switching Current AC: 5A
Max Switching Current DC: 5A
Max Switching Power AC: 1250VA
Max Switching Power DC: 150W
Contact Material: Silver alloy
Coil Resistance (5V): 125Ω
Max Coil Power: 200mW
Insulation Resistance: >1000MΩ @ 500V dc
Dielectric Strength (for 1 min):
750V ac between open contacts
3000V ac between coil & contact
Electrical Life: 100,000 operations
Mechanical Life: 10 million operations
Dimensions: ~6.5W x 17.5L x 12.5H mm
