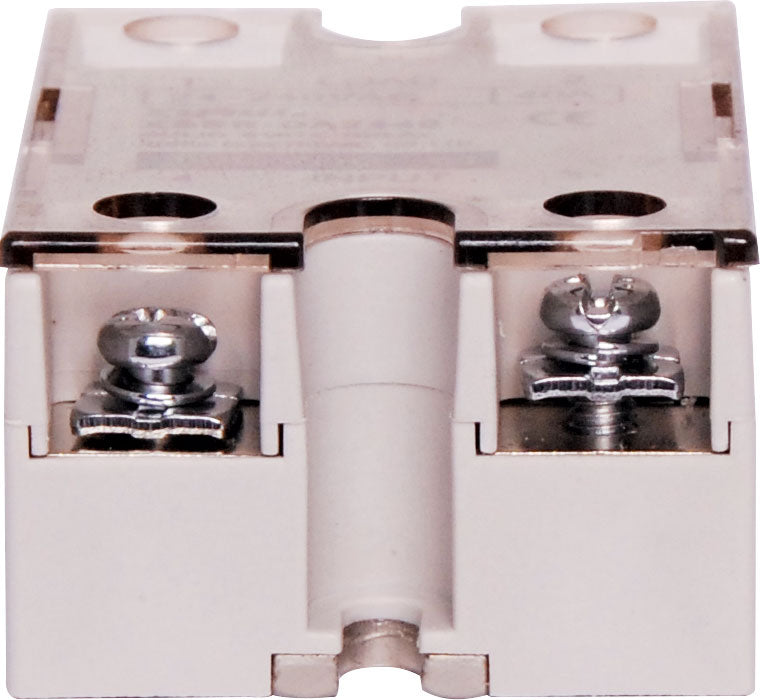

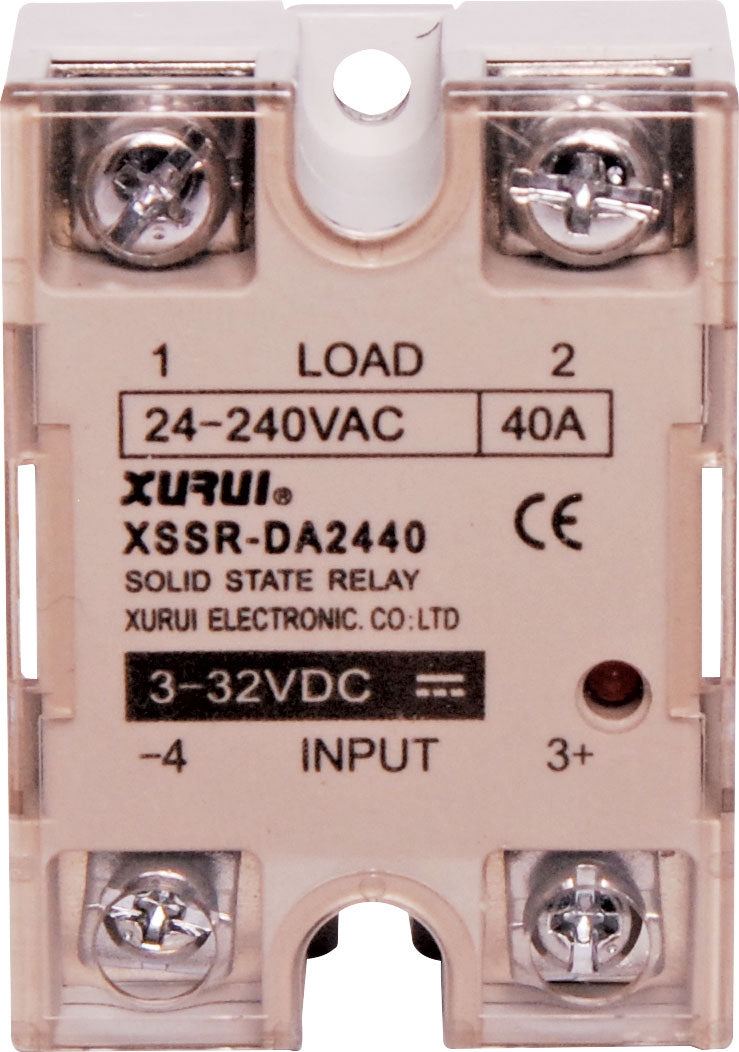

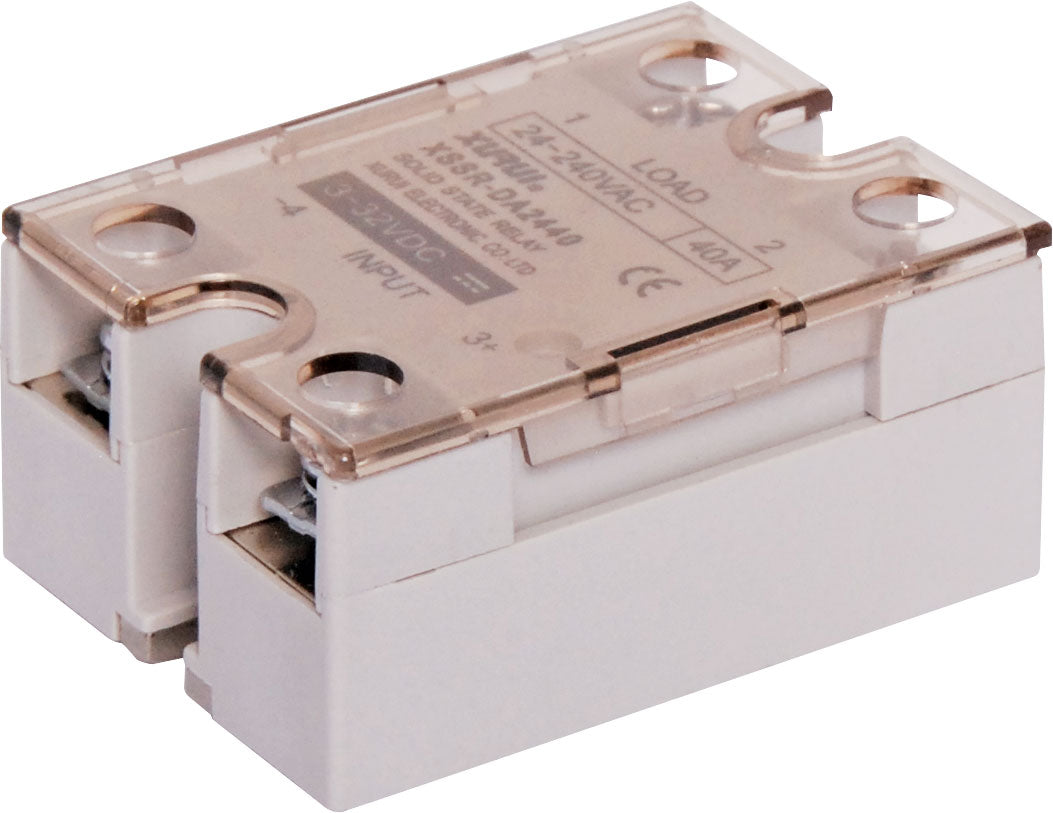

Relay AC 40A SPST Solid State S4416A
Relay AC 40A SPST Solid State S4416A
Regular price
$56.50
Regular price
Sale price
$56.50
Unit price
per
Taxes included.
Couldn't load pickup availability
40A SPST relay. Solid state type. Switches AC only. 3-32V DC coil.
No moving parts and no contact arcing. Features zero voltage turn on, zero current turn off.
Specifications
- Control Voltage: 3-32V DC
- Control Current: 6-25mA
- Reverse Voltage: 32V DC
- Closing Voltage: 1V DC
- Opening Voltage: 3V DC
- Load Voltage: 24-240V AC, 75-480V AC
- Maximum Load Current: 5A-40A
- Minimum Load Current: 0.08A
- Breakover Voltage: ≤1.6VAC
- Output Leakage Current: ≤5mA
- Withstand Voltage: 2500V AC
- Insulation Resistance: >100MΩ
- Switching Time: <10mS
- Frequency Range: 50-60Hz
- Load Current Safety Factor: 50-60% resistive, 30-40% inductive
