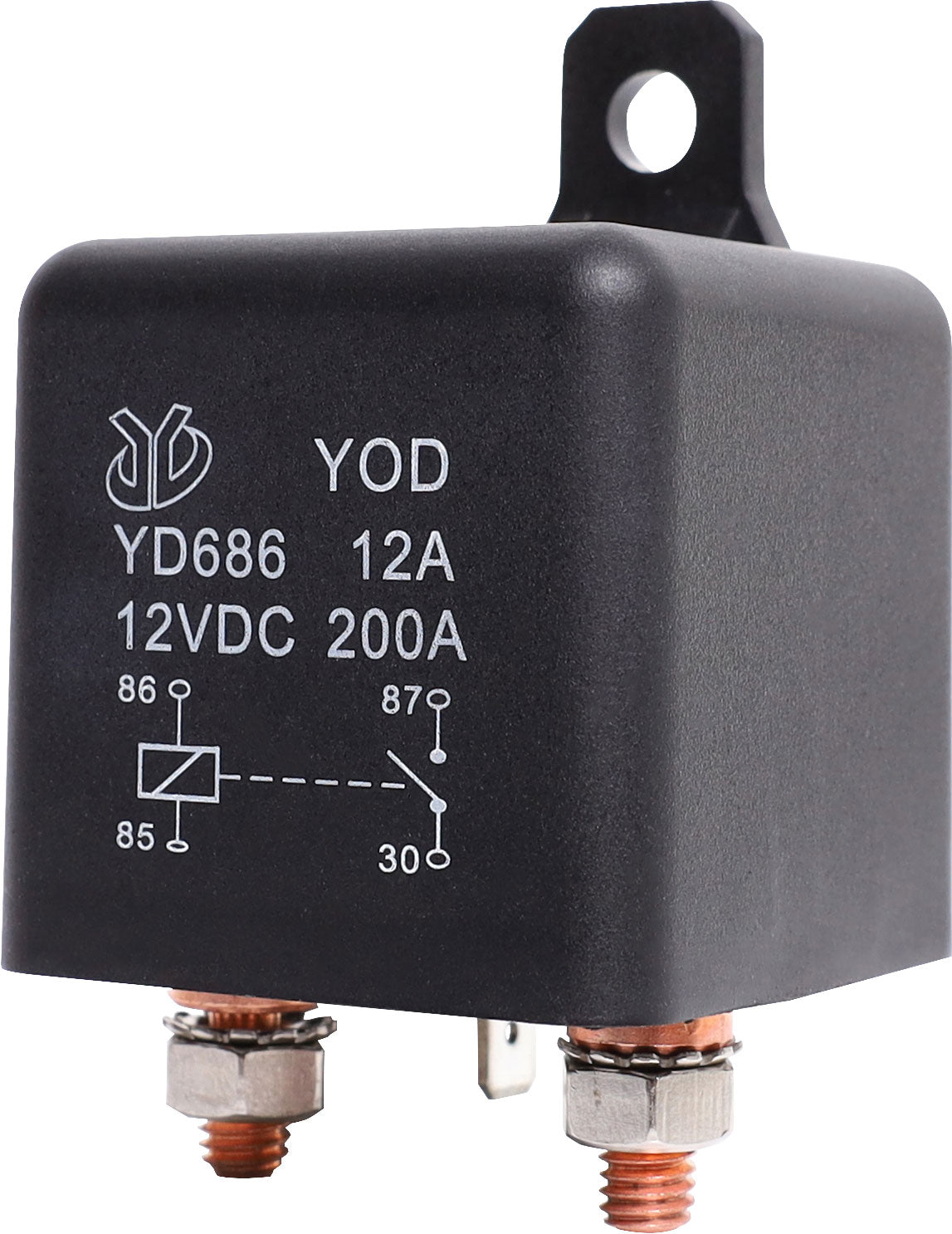

Relay Auto Spst 12VDC 200A S4343

Relay Auto Spst 12VDC 200A S4343

$24.95
$24.95
Sale Sold out
Taxes included.

Suitable for high current DC automotive applications. Not suitable for AC use. M6 bolt for contact load connection. 6.3mm spade terminals for contact coil connection.

Specifications

  • Max DC switching: 75V @ 200A / 1500W
  • Contact material: Silver alloy
  • Coil resistance: 120Ω
  • Max coil power: 4.8W
  • Insulation resistance:  >100MΩ @ 500V DC
  • Dielectric strength (for 1 min): 500V AC between open contacts
  • 750V AC between coil & contact
  • Connection: (Coil 6.3mm & M6 bolt for contact load)
  • Life: 100,000 operations electrical, 10 million mechanical
  • Dimensions: ≈46W x 46L x 77H mm
