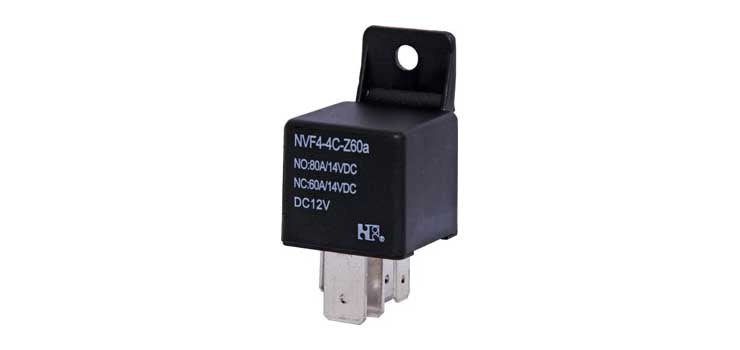

A 60A SPDT relay. Automotive type. 12V DC coil.
Suitable for automotive applications such as alarms, lights, etc.
Specifications
- Max Switching Voltage: 75V DC
- Max Switching Current: 60A
- Max VA (Watts): 980W
- Contact Material: Silver tin dioxide
- Coil Resistance: 80Ω
- Max Coil Power: 1.8W
- Insulation Resistance: >100MΩ @ 500V DC
- Dielectric Strength (for 1 min):
- 500V AC between open contacts
- 500V AC between coil & contact
- Electrical Life: 100,000 operations
- Mechanical Life: 10 million operations
- Dimensions: 29W x 29L x 26H mm
