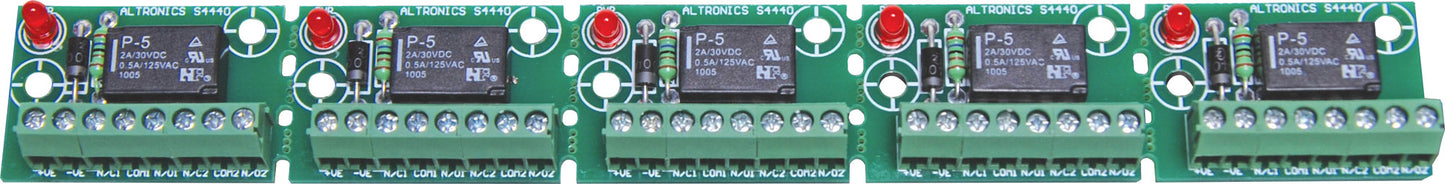

The S4445 is a handy 5 way "snap off" strip board fitted with 5x 24V relays. Two sets of changeover contacts are provided.
An on board LED illuminates when the relay is activated. Size: 32.5W x 22.5Dmm. 3.2mm hole size.
For 5V operation use S4441 board.
For 12V operation use S4443 board.
Note: For information and specs on the relay see S4132B.
Features
- LED indicator
- Dual changeover contacts
Specifications
- Max Switching Voltage: 250V AC, 220V DC
- Max Switching Current: 0.5A AC, 1A DC, 0.5A AC
- Max VA (Watts): 62VA (30W)
- Contact Material: Silver Palladium
- Coil Resistance: 2880Ω
- Max Coil Power: 200mw
- Insulation Resistance: >1000MΩ @ 500V DC
- Dielectric Strength (for 1 min):
- 1000V AC between open contacts
- 1000V AC between coil & contact
- Electrical Life: 200,000 operations 1A 24V
- Mechanical Life: 10 million operations
- Dimensions: 14W x 9L x 5H mm
