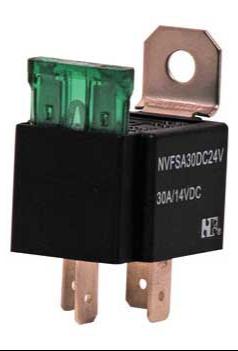

Relay Fused Automotive 24VDC 30A SPST S4332

30A SPST relay. 24V DC coil. Fitted with 30A blade fuse. Suitable for automotive applications such as alarms, lights, etc.

Note: Not suitable for AC use.

Max Switching Voltage DC: 75V
Max Switching Current DC: 30A
Max Switching Power DC: 420W
Contact Material: Silver tin dioxide
Coil Resistance: 320Ω
Max Coil Power: 1.8W
Insulation Resistance: >100MΩ @ 500V DC
Dielectric Strength (for 1 min):
500V AC between open contacts
750V AC between coil & contact
Electrical Life: 100,000 operations
Mechanical Life: 10 million operations
Dimensions: 25.4W x 33.3L x 21.2H mm (excluding fuse and tab)
