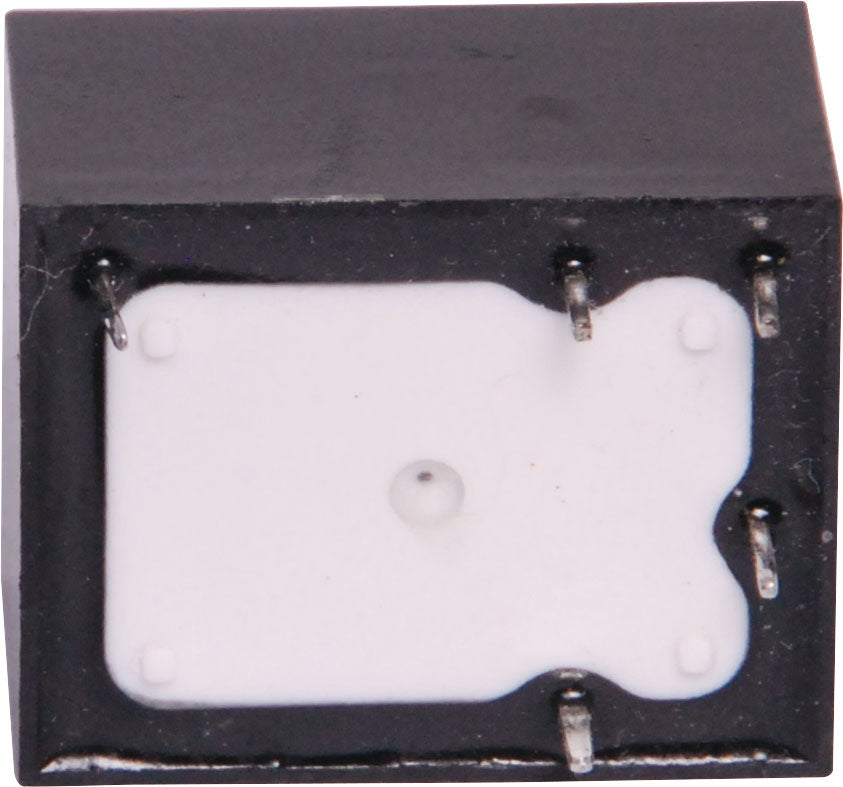

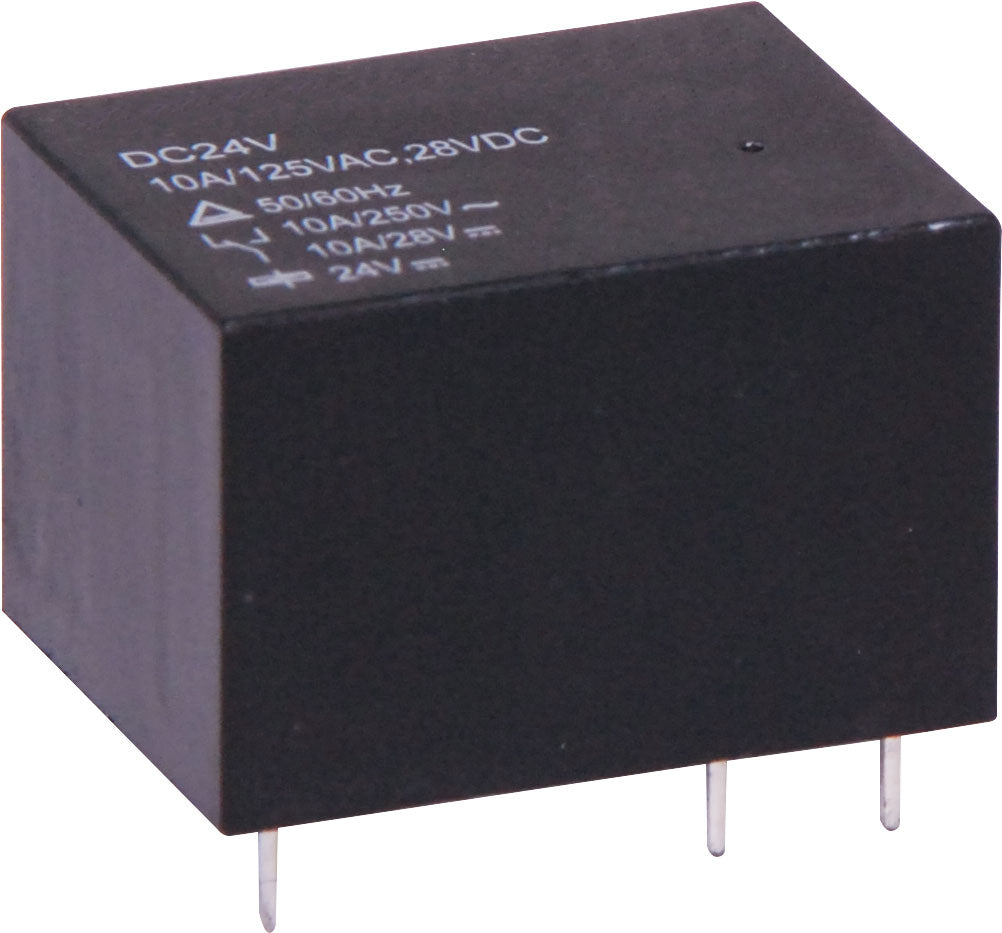

Relay PCB 24VDC 10A SPDT S4204B
Relay PCB 24VDC 10A SPDT S4204B
Regular price
$5.95
Regular price
Sale price
$5.95
Unit price
per
Taxes included.
Couldn't load pickup availability
10A SPDT relay. PCB mount style. 24V DC coil.
Non-sealed type, suitable for flow soldering.
Specifications
- Max Switching Voltage: 380V AC, 110V DC
- Max Switching Current: 10A
- Max VA (Watts): 2400VA (336W)
- Contact Material: Silver Nickel
- Coil Resistance: 1600Ω
- Max Coil Power: 360mw
- Insulation Resistance: >500MΩ @ 500V DC
- Dielectric Strength (for 1 min):
- 1000V AC between open contacts
- 2500V AC between coil & contact
- Electrical Life: 100,000 operations 5A 24V
- Mechanical Life: 10 million operations
- Dimensions: 22W x 17L x 15H mm
