Remote Control Switch System Two Channel UHF Outdoor A1018B

SKU: 9321758167342

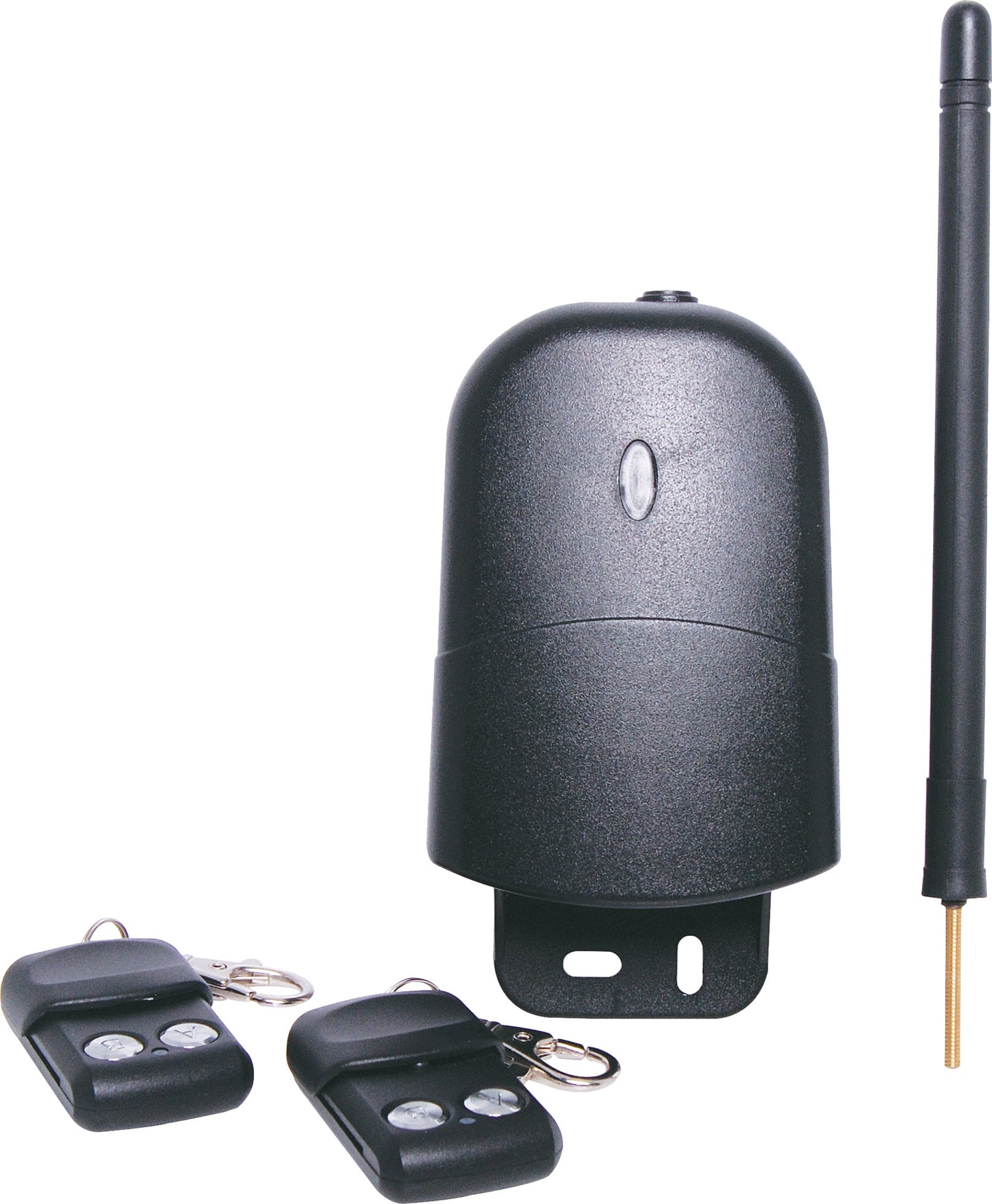

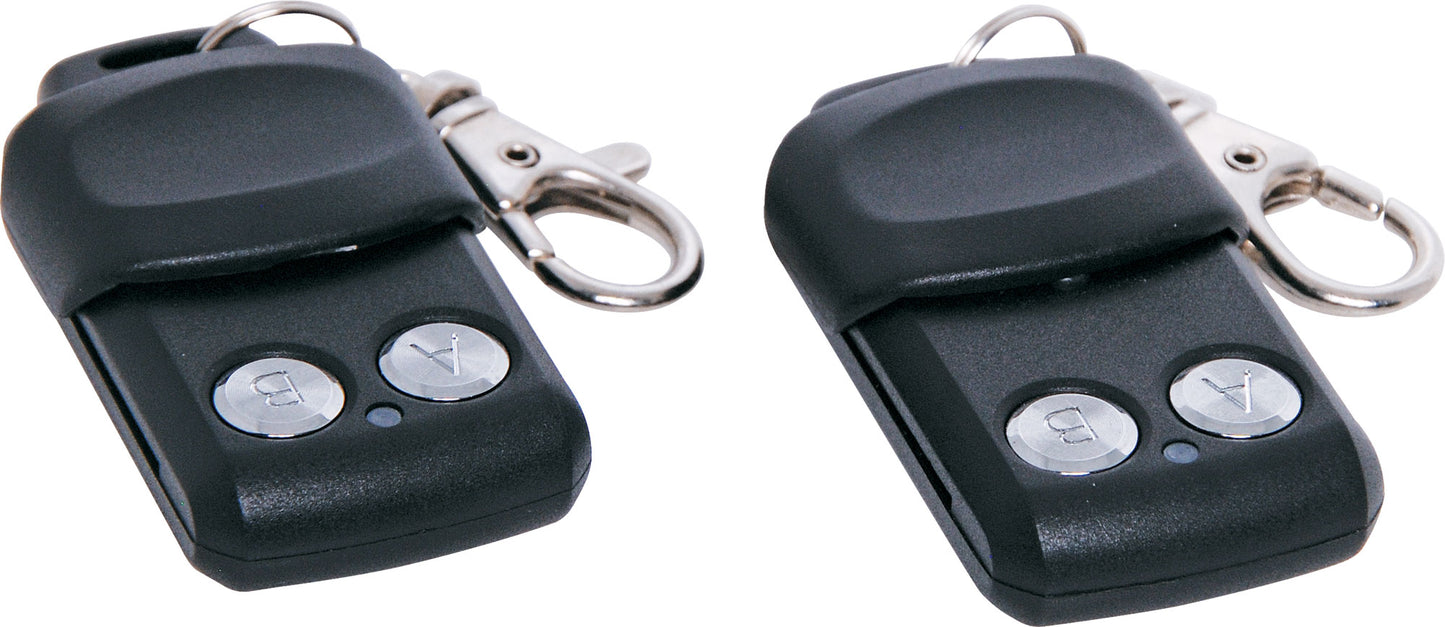

This 433MHz rolling code remote control switching system allows you to switch connected devices on and off remotely. It could be integrated with fans, LED lighting, cameras, doors, locks, motors and much more! Package includes two dual button remote transmitters and waterproof outdoor receiver unit.

Two channels are available, both with dedicated relays (rated at 12A @ 14V dc, 7A 120V ac). Can be programmed for use with up to 100 transmitters. Requires 9-24V ac/dc power. Typical range 100m.


Note: Requires 2 x GP27A batteries (sold separately)

  • Specifications
  • Power supply: 9V-24V DC/AC
  • Frequency: 433.92 Mhz, 315 Mhz
  • Max Consumption: 200mA
  • Decoding: Binary
  • Max Codes: 140
  • Channels: 2
  • Outputs: NO/NC 2
  • Max Switching Power: 0.5A / 120VA
  • Working Distance: 100m
  • Relay Spec.: 12A 14VDC or 7A 120VAC
