Metal Film Resistor.
SMD. 1% Tolerance.

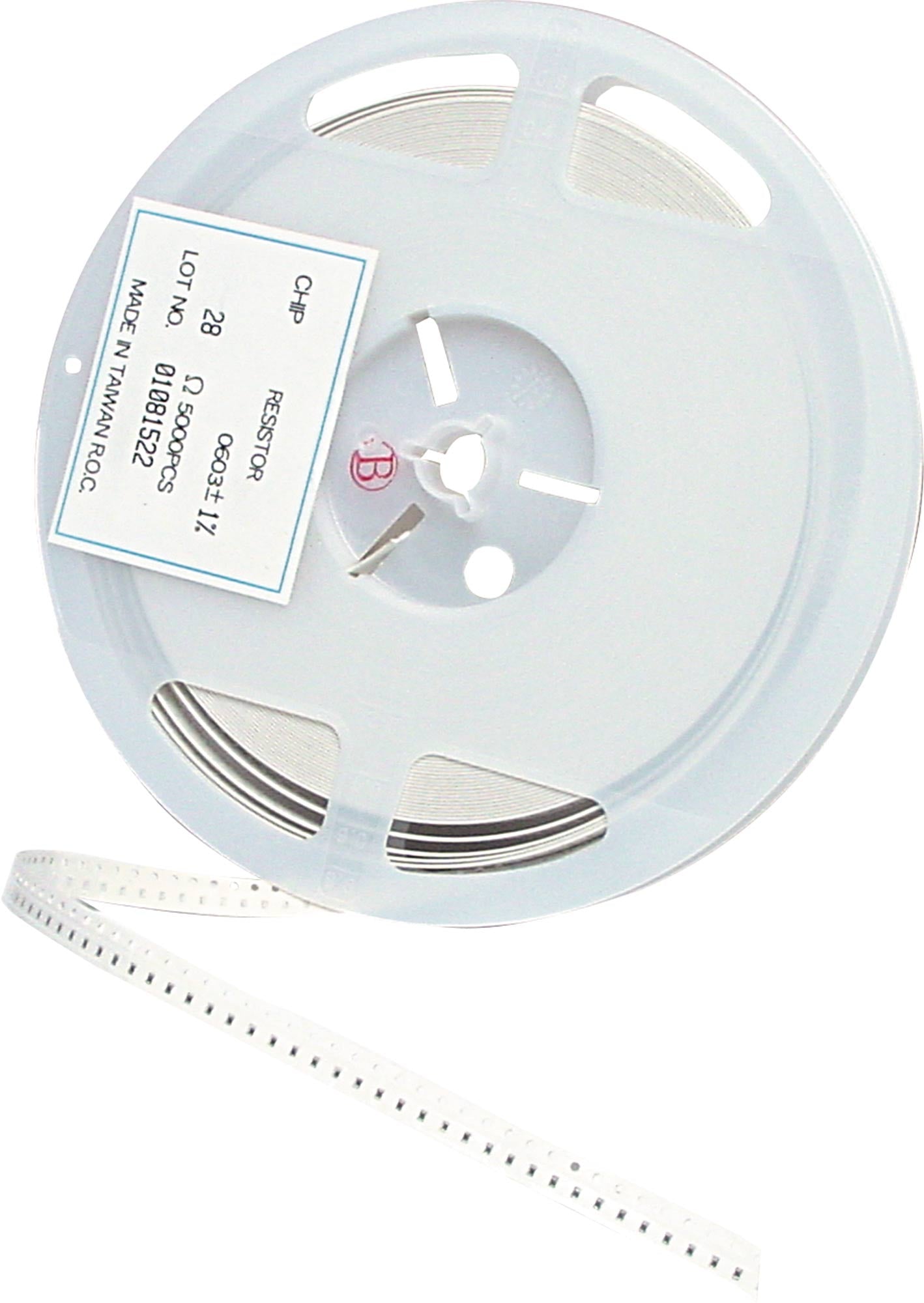

Reel of 5000.
SMD Resistor Value Markings:
0603 series
Our range of 0603 resistors use a combination of normal 3 digit marking and the EIA-96 marking system. The normal 3 digit marking is identified by 3 digits, the first 2 digits are the value followed by the multiplier, or number of zeros. ie. 333 printed on the resistor equates to 33 + three zeros = 33,000 Ohm or 33K Ohm (1% markings are the same as 5% markings). The EIA-96 marking used for selected values is as per the table above.
0805 & 1206 series
Identified by a 4 digit figure, the first 3 digits are the value followed by the multiplier, or number of zeros. ie. 1503 printed on the resistor equates to 150 + three zeros = 150,000 Ohm or 150K Ohm
Features
- High grade thick film metal glazed ceramic body
- Suitable for reflow or hand soldering
- Temperature range -55° to +125°C
- Temperature co-efficient ±100 ppm/°C
- Tolerance ±1%
- 0.25W rated
