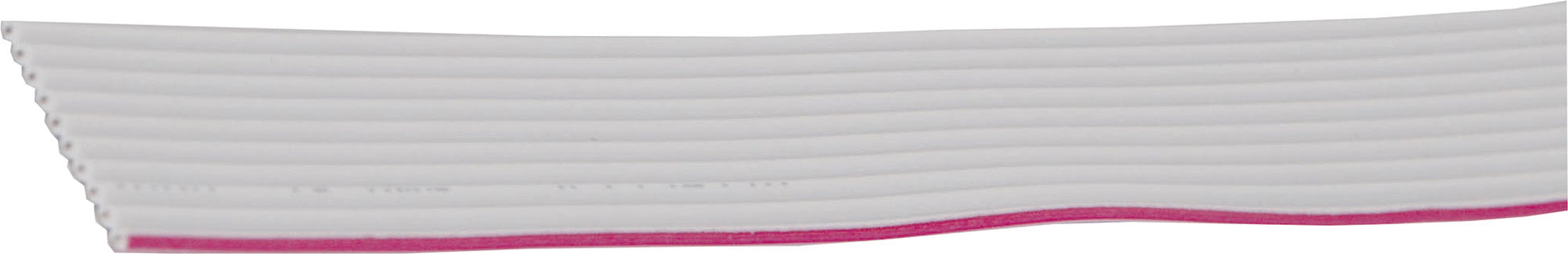

This ribbon cable is a quick and convenient way to connect circuit boards and IDE drives. Termination is very straightforward and it is compatible with both our IDC P 5310- P5350 cable sockets and our P4120-4153 range of D-sub connectors. 10 Way, Grey insulation. 30m Roll 1.27mm pitch
Specifications
Conductor
- Size: 28AWG (0.89mm2)
- Material: tinned copper
- Construction: 7/0.127mm
Insulation
- Material: Fire resistant PVC 105ºC
- Average thickness: 0.26mm
- Minimum thickness: 0.18mm
- Diameter: 10 x 1.29±0.15mm
- Colour: grey (edge with red trace)
Electric
- Conductor resistance: max. 237Ω/km, 20ºC
- Insulation resistance: min. 100MΩ/km, 20ºC
- Capacitance: 60pF/m (G-S-G), 42pF/m (G-S)
- Inductance: 1.45µH/m
- Impedance: 100±10Ω (G-S-G)
- Propagation delay time 5.0ns/m
- Spark test 2500V
- Dielectric strength: min. 2kV in 1 minute
- Rating voltage: max. 300V
- Rating temperature: -20ºC to 105ºC
- Standard: UL2651/CSA C22.2 No. 210.2
