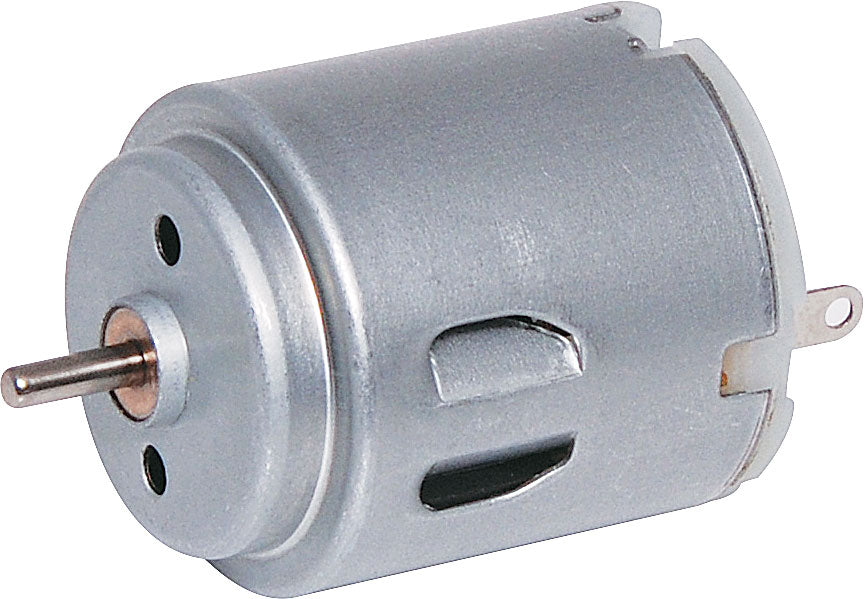

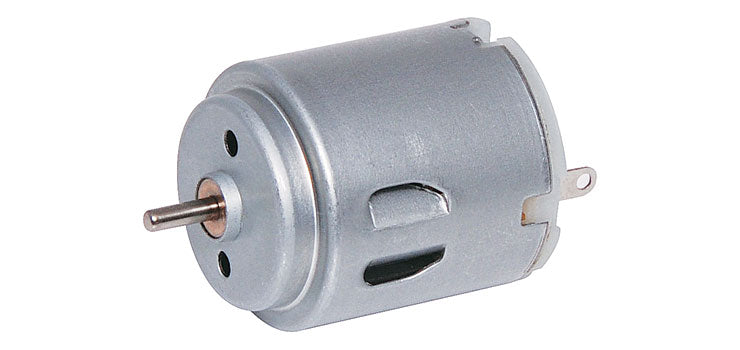

Robotics 4.5V Low Torque F260 Hobby Motor J0026
Robotics 4.5V Low Torque F260 Hobby Motor J0026
Regular price
$5.95
Regular price
Sale price
$5.95
Unit price
per
Taxes included.
Couldn't load pickup availability
10,000RM rated hobby motor commonly found in robotics kits, toys and much more! 3-6VDC operation. 4.5V constant nominal operating voltage. 22.42gcm torque @ max efficiency. Shaft diameter 1.9mm.
Specifications
- Operating voltage: 3.0~6.0V DC
- Nominal: 4.5V DC
No Load
- - Speed: 10000rpm
- - Current draw: 135mA
Maximum Efficiency
- - Speed: 8400rpm
- - Current draw: 740mA
- - Torque: 2.16mN/m, 22g/cm
Stall
- - Torque: 13.23mN/m, 135g/cm
- - Current: 3.9A
