Rocker Switch DPDT Centre Off 10a 240v SK0980
Rocker Switch DPDT Centre Off 10a 240v SK0980
Regular price
$9.95
Regular price
Sale price
$9.95
Unit price
per
Taxes included.
Couldn't load pickup availability
Momentary contacts with spring returns to centre on both sides. These are commonly used for car power antennas and power windows.
Specifications
| Packaged Volume : 0.02l |
| Packaged Weight : 0.01kg |
| Packaged Length : 3.2cm |
| Packaged Width : 2.5cm |
| Packaged Height : 3cm |

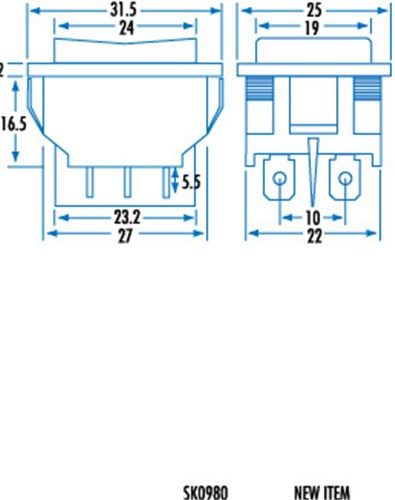

| Length : 31.5mm |
| Width : 25mm |
| Height : 16.5mm |
| AC Voltage rating : 240V |
| AC current rating : 10A |
| Switch Type : Rocker |
| Switch Function : Double Action Momentary |
| Centre Off : true |
| Mechanism Material : Plastic |
| Switch Connection : Spade Terminals |
| Switch Colour Coded : Black |
| Pole Throw Type : DPDT |
