Rocker Switch Illuminated Green SPST 15a 240v SK0979
Rocker Switch Illuminated Green SPST 15a 240v SK0979
Regular price
$4.50
Regular price
Sale price
$4.50
Unit price
per
Taxes included.
Couldn't load pickup availability

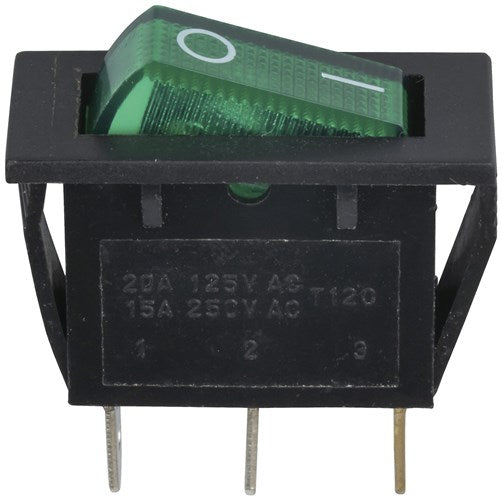

SPST 240V 15A rocker switches. Spade lug connectors with QC fittings. Black body with illuminated actuator.
Three types available:
> Blue: SK-0976
> Red: SK-0978
> Green: SK-0979
Three types available:
> Blue: SK-0976
> Red: SK-0978
> Green: SK-0979
Specifications
| AC current rating : 15A |
| AC Voltage rating : 240V |
| Nominal Voltage : 250V, 250V |
| Type : Neon |
| Illumination Colour : Green |
| Connection : Spade Terminals |
| Length : 33.8mm |
| Width : 13.8mm |
| Height : 19.9mm |
| Packaged Volume : 0.02l |
| Packaged Weight : 0.01kg |
| Packaged Length : 3.5cm |
| Packaged Width : 1.5cm |
| Packaged Height : 3.5cm |
| Switch Type : Rocker |
| Pole Throw Type : SPST |
| Poles / Contacts : 1 pole |
| Throws / Positions : 1pos |
| Switch Function : Locking On/Off |
| Switch Connection : Spade Terminals |
| Switch Colour Coded : Green |
| Cycle Life : 10000 cycles |
| Contact Resistance : 50Ω |
| Insulation Resistance : 100Ω |
| Dielectric Strength : 1000V |
| Mechanism Material : Plastic |
