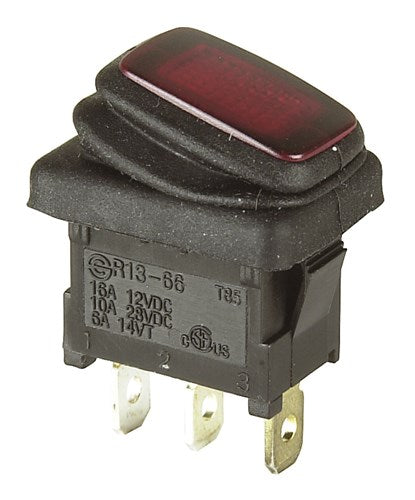

Rocker Switch SPST 16a 12v Ip65 SK0969

SPST mini rocker switches with spade QC lugs. Sealed with a rubber boot and IP56 rated.


• Cutout: 18.8 x 12.5mm

Specifications

Packaged Volume : 0.1l

Packaged Weight : 0.01kg

Packaged Length : 11.9cm

Packaged Width : 4.3cm

Packaged Height : 1.9cm

Length : 21mm

Width : 14.8mm

Height : 24.6mm

Dust/Particle Ingress Protection : 5 - Dust protected, protected but some dust may enter

Liquid/Moisture Ingress Protection : 6 - Powerful water jets

DC Voltage : 12V

DC current rating : 16A

Switch Type : Rocker

Poles / Contacts : 1 pole

Throws / Positions : 1pos

Switch Function : Locking On/Off

Contact Resistance : 50Ω

Insulation Resistance : 100MΩ

Dielectric Strength : 1000V

Mechanism Material : Plastic

Switch Connection : Spade Terminals

Switch Colour Coded : Black

Pole Throw Type : SPST

Illumination Colour : Red

Nominal Voltage : 12V, 12V

Connection : Spade Terminals

Type : 5mm Standard LED
