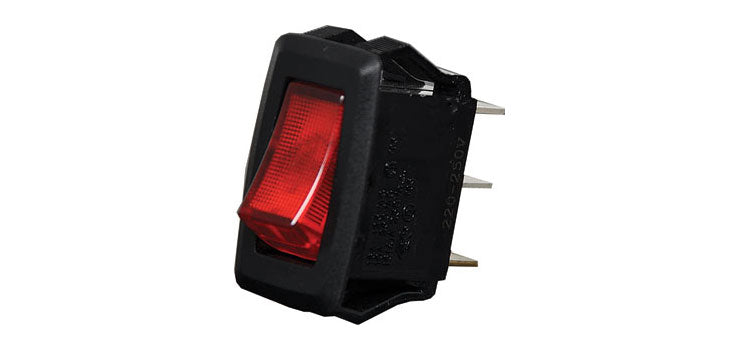

Rocker Switch SPST Heavy Duty Red Illuminated Rocker Switch S3228

A narrow profile heavy duty SPST rocker switch for AC/DC switching use. Red translucent actuator with 240V AC neon indicator.
Neon is connected to pins 1 and 3 in the diagram below.

Diagram

Switch Type: SPST
Contact Rating: 10A @ 250V AC
Neon: Red, 240VAC
Panel Cutout: 27.6 x 13.8 mm
Electrical Life: 20,000 Cycles
Mechanical Life: 100,000 Cycles
Contact Resistance: 100MRΩ
Dielectric Strength: >1500V AC 1 Minute
