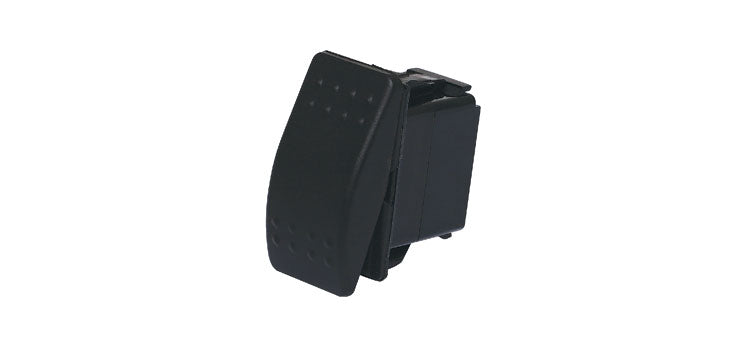

A marine/boat style flat rocker switch suitable for use in 12V DC or 24V DC power systems. IP67 rated weatherproof design. Suits panel thicknesses up to 4mm. Panel Cutout: 21 x 36.4mm approx. Will vary with panel thickness.
Features
- IP67 Waterproof Rating (front only)
Specifications
- Rating: 12V DC/20A, 24V DC/10A
- Switch Action : SPST
- Contact: 50MΩ (max)
- Insulation Rating: 500V DC / 100MΩ (min)
- Dielectric Strength: 1,500C AC, 1 minute
- Electrical Life: 20,000 make-and-break cycles at full load
- Mechanical Life: 50,000 cycles (min)
- Operating Temperature: -20°C ~ 65°C
