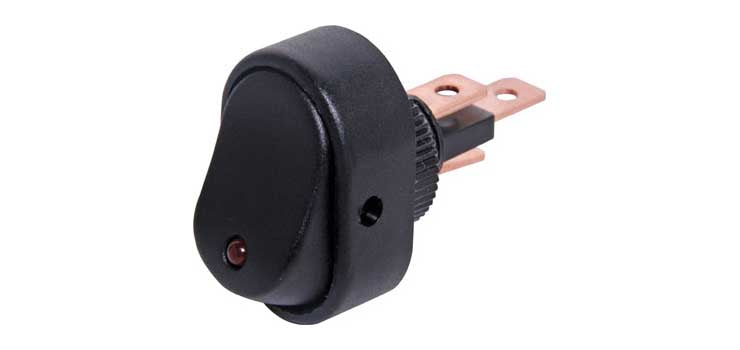

Rocker Switch SPST Low Voltage Red LED S3248

Designed for use in low voltage applications, this LED illuminated panel mount rocker switch is an SPST alternate type. The LED has an in-built resistor for direct connection to a 12V DC power source. Excellent mechanical and electrical lifetime specifications.

Contact Rating: 30A @ 12V DC
Electrical Life: 10,000 cycles
Mechanical Life: 100,000 cycles
Panel Cutout: 12.2mmØ
Panel Thickness: 4mm max.
LED: Red, 12V DC
Contact Resistance: 50m&Ω max.
Insulation Resistance: >100MΩ
Dielectric Strength: >1500V AC 1 minute
