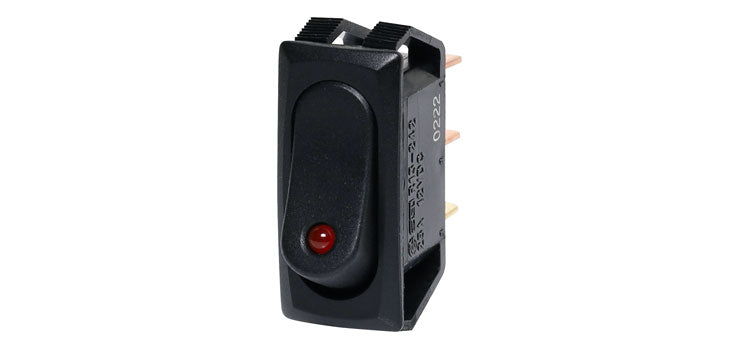

Switch Rocker SPST 25A@12Vdc Slim Red LED S3247

Switch Rocker SPST 25A@12Vdc Slim Red LED S3247

Regular price $4.45
Regular price Sale price $4.45
Sale Sold out
Taxes included.
Quantity
View full details

Designed for use in low voltage applications, this LED illuminated panel mount rocker switch is an SPST alternate type. The LED has an in-built resistor for direct connection to a 12V DC power source. Excellent mechanical and electrical lifetime specifications.

Switch Type: SPST
Contact Rating: 25A @ 12V DC
Electrical Life: 10,000 cycles
Mechanical Life: 100,000 cycles
Panel Cutout: 26.5 x 11.5 mm
Panel Thickness: 0.75 - 2mm
LED: Red, 12V DC
Contact Resistance: 50mΩ max.
Insulation Resistance: >100M ohm
Dielectric Strength: >1500V AC 1 minute
