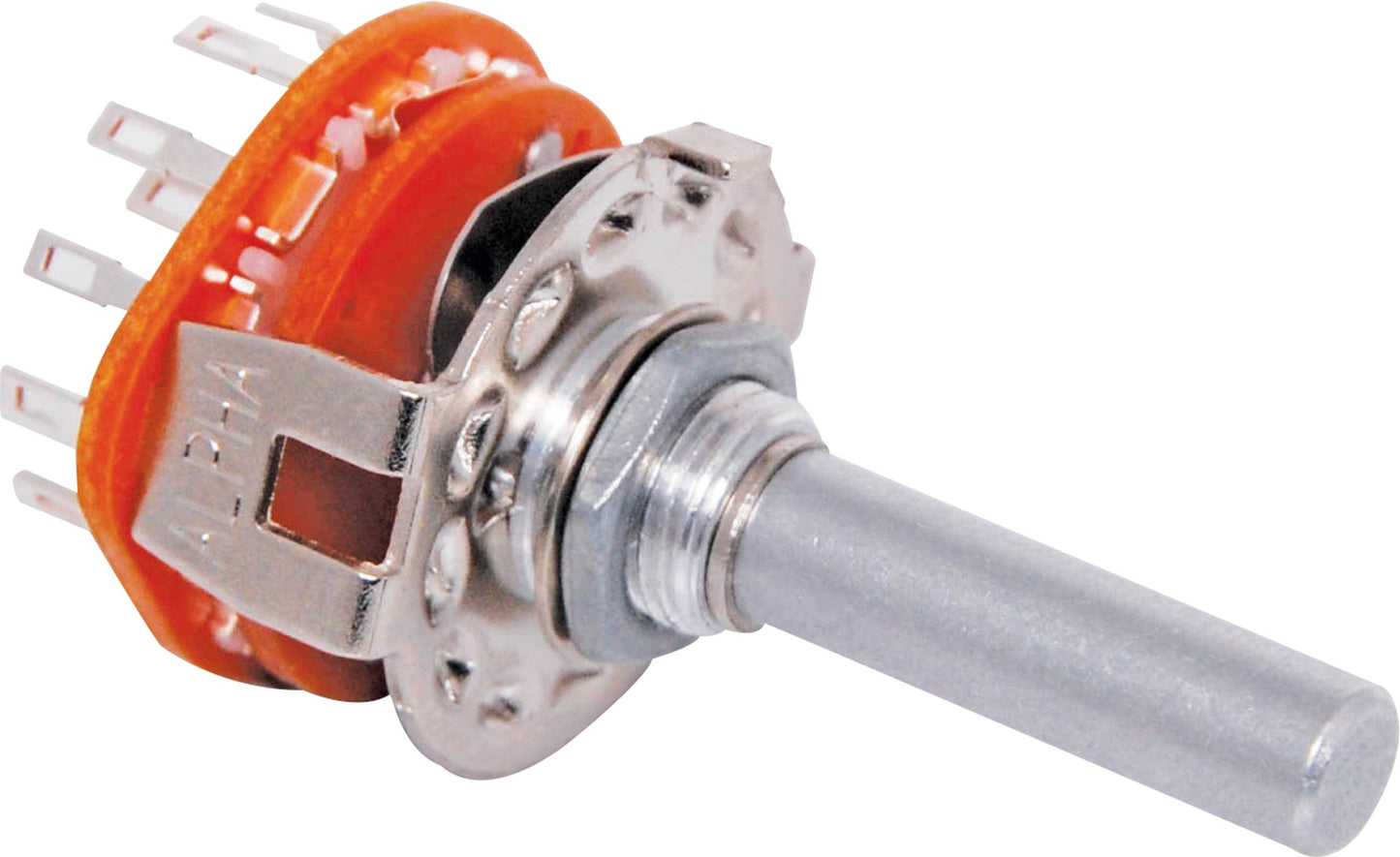

Rotary Switch 3 Pole 4 Position Wafer S3034
Rotary Switch 3 Pole 4 Position Wafer S3034
Regular price
$3.95
Regular price
Sale price
$3.95
Unit price
per
Taxes included.
Couldn't load pickup availability

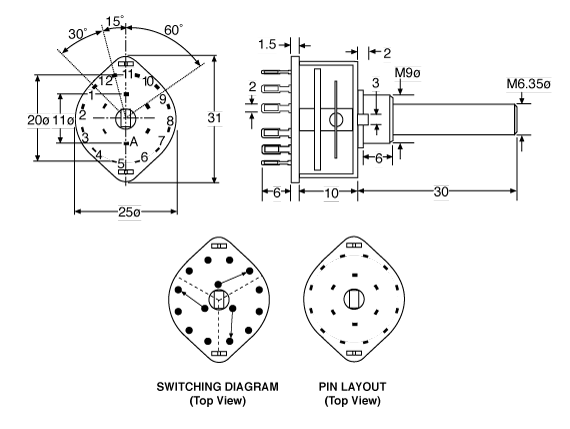

A 3 pole, 4 position rotary wafer switch designed for selection or level control applications. Solder tag terminal connection. Can be PCB mounted using 2mm PCB holes.
Specifications
- Shaft Ø: 6.35mm
- Shaft Length: 30mm
- Shaft Shape: Round
- Contact Timing: Break before make
- Contact Rating: 125V AC/DC @350mA
- Termination: Solder Tag Terminals
