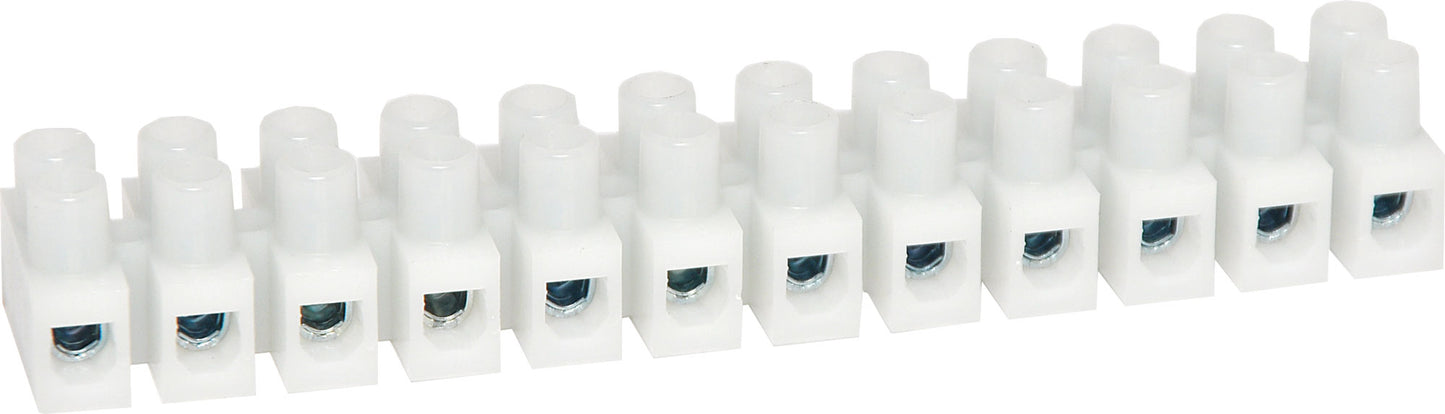

Screw Terminals 12 Way 50A 600V Terminal Block P2150

Name: Screw Terminals 12 Way 50A 600V Terminal Block P2150
Brand: Altronics
SKU: 9321758062289
Price: 8.80 AUD
Availability: InStock

$8.80

Sale Sold out

Taxes included.

Standard type, rated 600V @ 50A.

Dimensions:
A: 158mm
B: 26
C: 25
D: 5
Pitch: 13mm

Specifications

Clamping Area: 10mm²
Wire Range: 22AWG - 8AWG Sol/Str
Screw: M4 x9
Base: 1.0~2.5 mm Raised Base Type
Housing Material: Polyamide 66 (Nylon 66) Flame-retardant to UL 94V-2
Temperature Rating: -30°C to T110°C
Terminal Insert: Brass metal alloy, nickel plated
Screw: Steel, zinc plated
