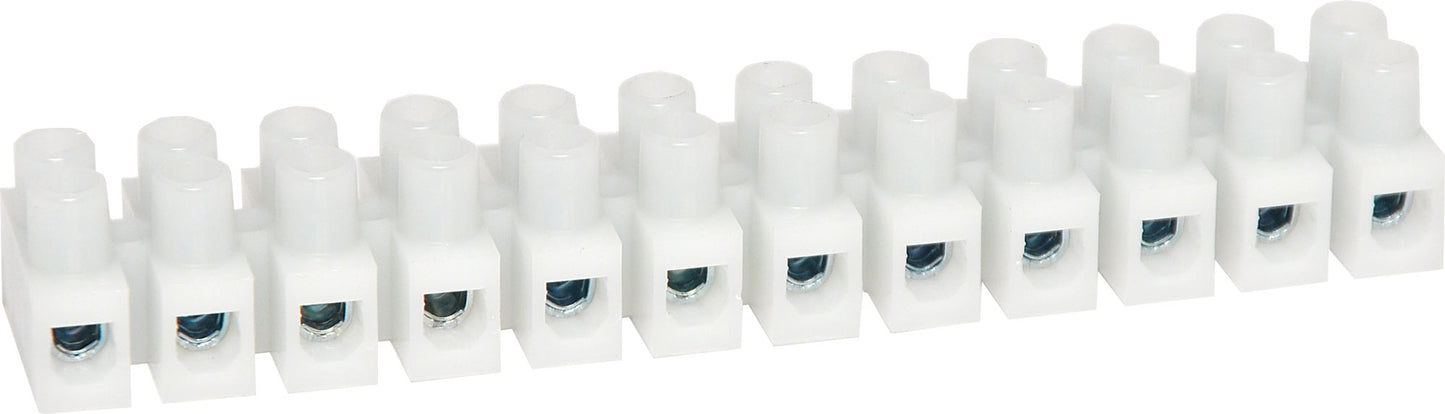

Wire protect type, rated 600V @ 35A.
Wire protect version has a flat spring plate under the screw to prevent damage to cables.
Dimensions:
A: 141mm
B: 24
C: 19
D: 4.2
Pitch: 12mm
Specifications
- ClampingArea : 6 mm2
- Wire Range: 22AWG - 10AWG Sol/Str
- Screw: M3.5x7
- Base：1.0~2.5 mm Raised Base Type
- Housing Material：Polyamide 66 (Nylon 66) Flame-retardant to UL 94V-2
- Temperature Rating： -30°C to T110°C
- Terminal Insert：Brass metal alloy, nickel plated
- Screw：Steel, zinc plated
- Wire Protector (DS)：Stainless spring steel
