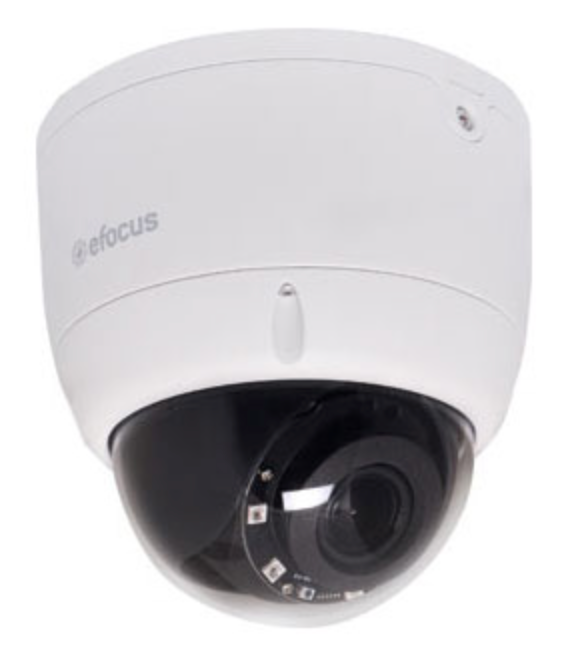

This IP 12MP Motor Zoom Dome Camera with SD Card Slot is a high resolution dome camera that will make a perfect security solution for an outdoor space. With a IP67 metal case it will be suitable for outdoor conditions. This camera also features a 3.6-11mm 3X Motor Zoom Auto Focus Lens and a 1/1.7"SONY Low Illumination CMOS Sensor.
Features
- 1/1.7"SONY Low Illumination CMOS Sensor
- H.264/H.265 Compression Method
- 3.6-11mm 3X Motor Zoom Auto Focus Lens
- IR Distance 30m Max.
- IP67 Outdoor Metal Case
Specifications
Camera
- Image Sensor: 1/1.7" SONY Low Illumination CMOS Sensor
- Resolution: 12MP
- Effective Pixels: 4072 (H) × 3046 (V)
- Compression: H.264/H.264+/H.265/H.265+/JPEG/AVI /MJPEG
- TV System: PAL/NTSC
- Electronic Shutter Time: Auto: PAL 1/25-1/10000Sec; NTSC 1/25-1/10000Sec
- Minimun Illumination: 0.01Lux
- S/N Ratio: ≥52dB
- Scanning System: Progressive
- Video Output: Network
- Reset Button: Optional
- Focus Length: 3.6-11mm
- Focus Control: Auto
- Lens Type: Motorized
- Pixels: 12MP
- Infrared LED: 42µ x 4PCS
- Infrared Distance: 30M
- IR Status: Auto Control
- IR Power On: Auto Control
- Ethernet: RJ-45 (10/100Base-T)
- Protocol: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP
- ONVIF: Support ONVIF 2.4
- P2P: YES, Support QR Code
- POE: Internal, Support IEEE 802.3af
- Video Delay: 0.3S (Within the Lan)
- Main Stream 1: 4000*3000@20fps
- 3840*2160 @30fps
- 3072*2048@30fps
- Main Stream 2: 2592*1944@30fps
- 2560*1920@30fps
- Main Stream 3: 2560*1440@30fps
- 1920*1080@30fps
- 1280*720@30fps
- Sub Stream 1: 720*480@20fps
- 720*480@30fps
- Tri Stream: 352*288@20fps
- 352*288@30fps
- IE Browser: IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53), Mac Safari(lower than version 12)
- Smart Phone: iPhone, iPad, Android, Android Pad
- Day/Night: Color/ B&W (IR-CUT )
- Image Config: Saturation/Brightness/Contrast /Sharpness, Mirror, 3D NR , White Balance, FLK(Flicker Control), Video Tampering
- Corridor Pattern: Support
- Defog Mode: Support
- ROI: Support
- BLC: Support
- WDR: DWDR: 50dB
- Motion Detection: Support
- Privacy Masking: 3 Rectangular Zone
- Recording Mode: NVR/CMS/Web
- Language: Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Farsi, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands, Czech, Vietnamese
- Audio: 2-Way Audio
- Alarm 1: channel Input/Output
- SD Card Slot: Optional, Support Max 512GB
- Housing: Metal ,IP67
- Anti-cut Bracket: Optional
- IR Cut Filter: YES
- Operation Temperature: -20℃ ~ +60℃ RH95% Max
- Storage Temperature: -20℃ ~ +60℃ RH95% Max
- Power Source: 12V DC±10%, 950mA
- Dimension: ¢142 x 142(H) mm
- Weight: 1200g
