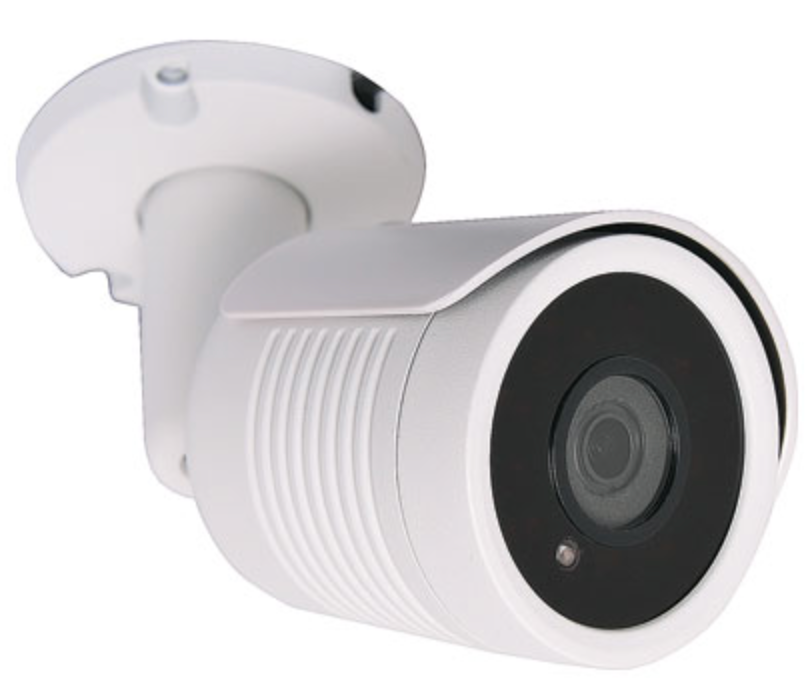

A high performance camera that features both 1080P AHD and 960H standard definition output. Great for installs where old standard definition DVRs are used and maybe upgraded in the future. The lead control toggles the video output between 1080P AHD and 960H standard definition. Day&Night setting should be changed to Auto if the you would like automatic day to night filtering.
Features
- 1/2.9"CMOS Sensor
- AHD/CVI/TVI/CVBS 4 IN 1
- 3.6mm Fixed Lens
- IR Distance max 25m
- IP66 outdoor, OSD&UTC support
Specifications
Camera
- Image Sensor: 1/2.9" CMOS Sensor
- Image Resolution: 2MP 1080P/ 960H
- Effective Pixels: 1920*1080
- TV System: PAL/NTSC
- Electronic Shutter: 1/25s~1/50,000s , 1/30s~1/60,000s
- S/N Ratio: ≥50dB
- Scanning System: Progressive Scan
- Focus Length: 3.6mm
- Focus Control: Fixed
- Lens Type: Fixed
- Pixels: 5M Pixels
- Auto Iris Support: NO
- Infrared LED: 14µ x 20PCS
- Infrared Distance: 25M
- IR Status: Under 10 Lux by CDS
- IR Power: On CDS Auto Control
- Day/Night: YES
- OSD Menu Language: YES
- White Balance: AUTO / MANUAL
- Gain Control: AUTO
- Noise Reduction: 3DNR
- Picture Adjustment: YES
- WDR: YES
- OSD Support: YES
- UTC: YES
- Dip Switch: Optional
