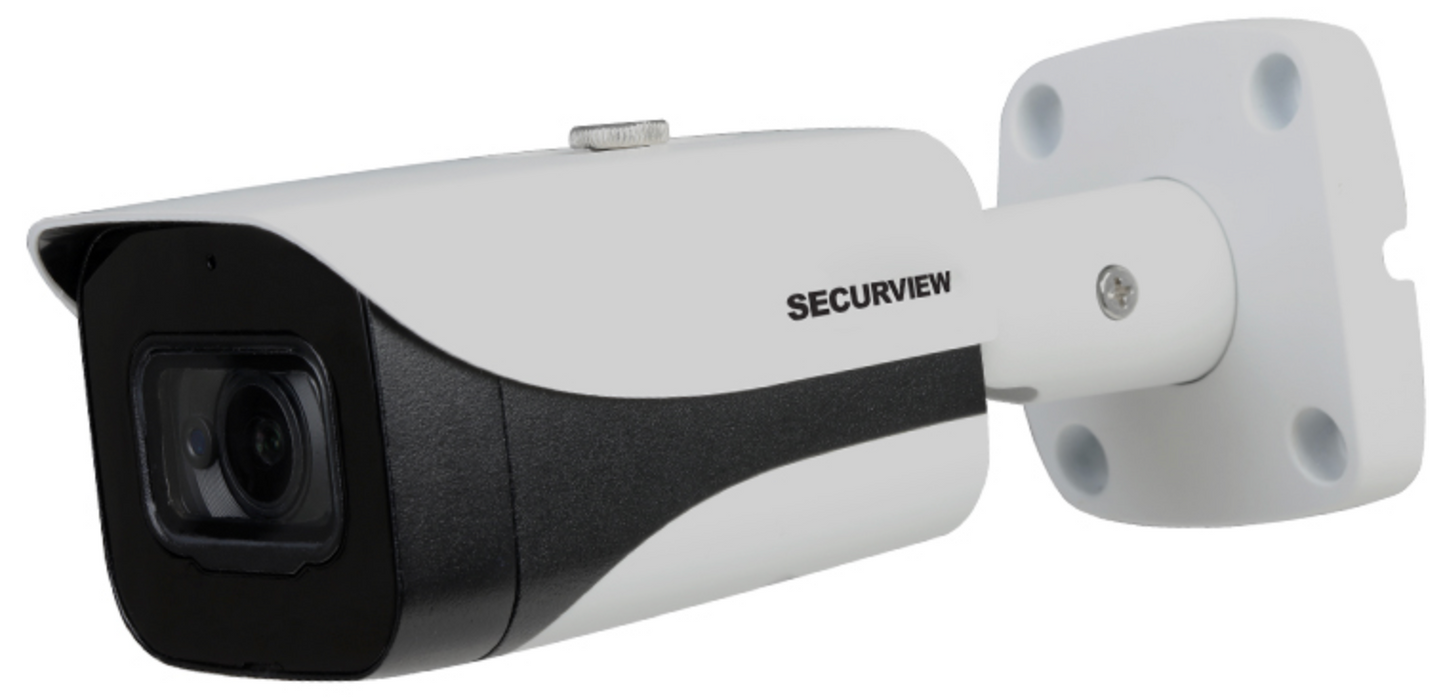

Securview UHD 8.0mp Fixed Mini Bullet Camera VSCVI-8BIRG
Securview UHD 8.0mp Fixed Mini Bullet Camera VSCVI-8BIRG
Couldn't load pickup availability
The VSCVI-8BIRG offers high performance surveillance over coax in a compact body. Deliver perfect evidence in challenging conditions with weather resistance for outdoor use, low light colour footage and a small install footprint.
Camera features:
• Stream up to UHD/4K/8.0MP (3840 x 2160) at 15fps
• 2.8mm lens with wide 111° viewing angle
• Superb colour image performance in low light at 0.005lx
• Up to 700m video transmission over coaxial cable
• Smart infrared illumination, up to 40m range
• Switchable BNC output for HD/composite video
• True WDR (120dB) and 2D/3D noise reduction
• IP67 rated weather resistance
• Compact 70x70mm base for versatile installation
• Supports HDCVI, AHD, HDTVI & Composite video format modes

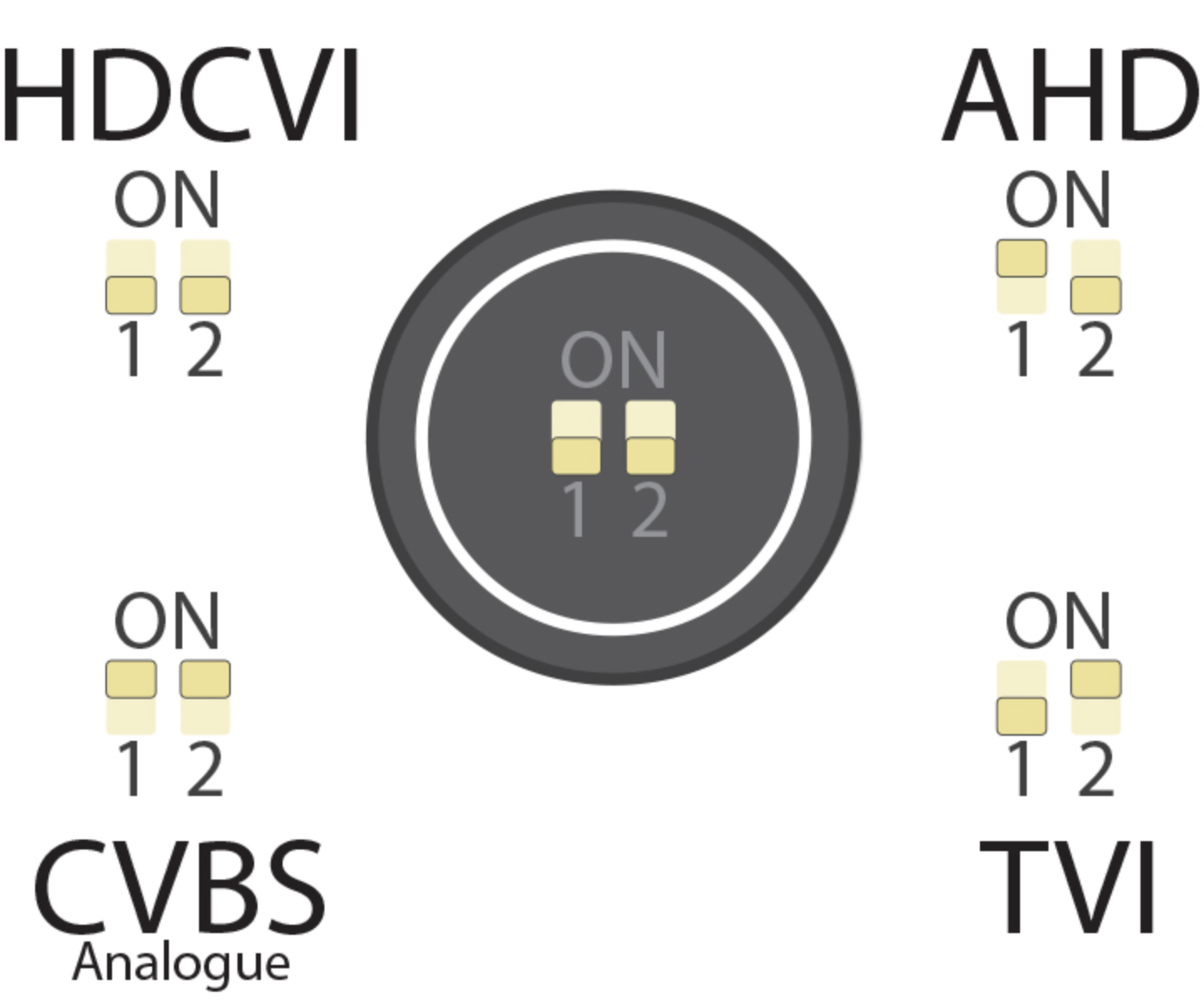

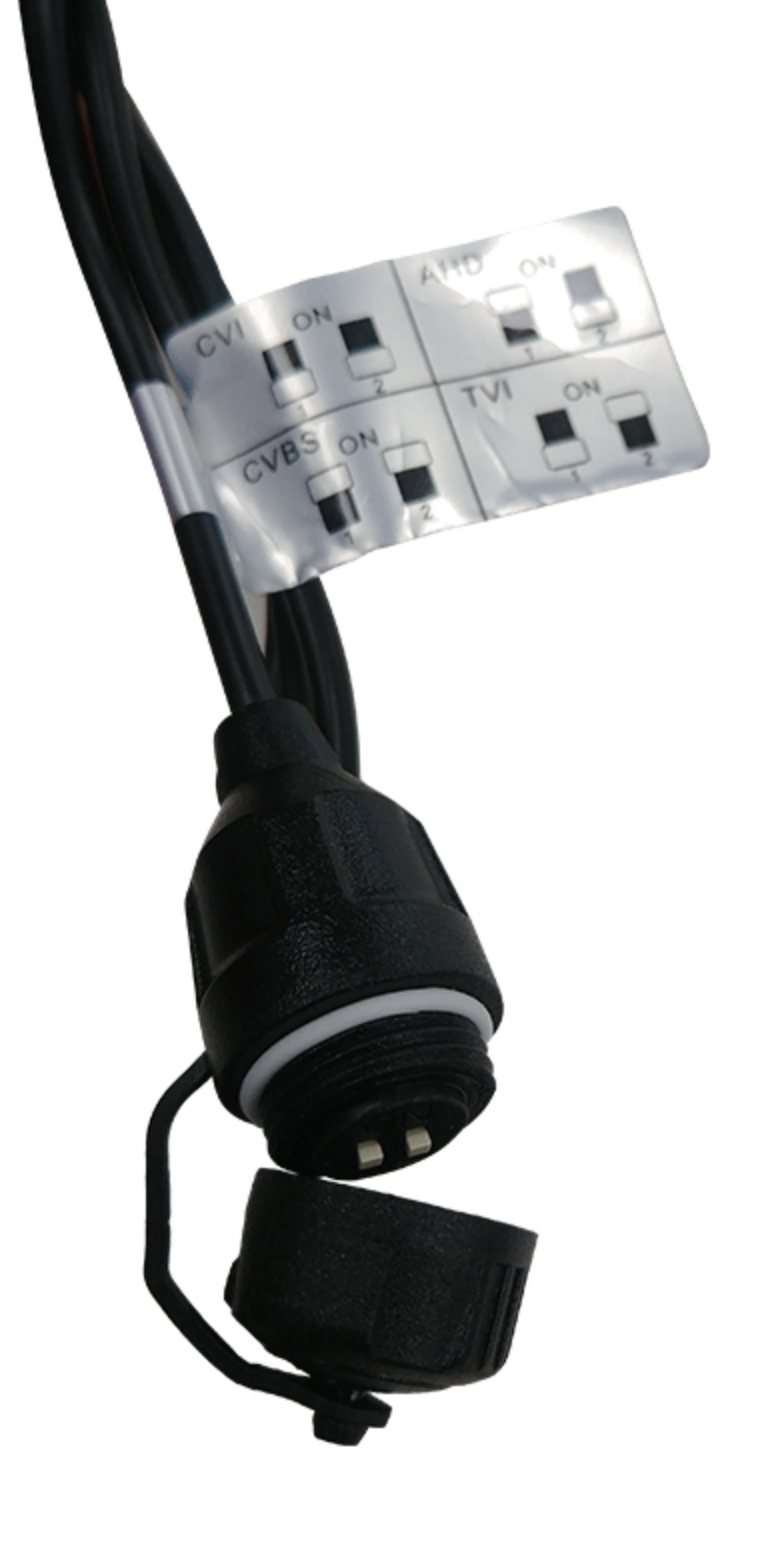

• Switch modes via DIP switches
Links and Downloads
Securview BIR Series Datasheet (PDF)
Accessory Compatibility Guide 2023 (PDF)
Specifications
General
| Image Sensor | 1/2" 8.0 Megapixel CMOS |
| Max. Resolution | 8.0 Megapixel |
| Effective Pixels | 3840 (H) x 2160 (V) |
| Signal Noise Ratio | > 65dB |
| Lens | 2.8mm F1.6 Fixed Lens |
| Lens Type | Fixed |
| Angle of View | 111° |
| Focus | Fixed / 1.8m Min. Focus Distance |
| Minimum Illumination | 0.005 Lux at F1.6 (Colour) / 0 Lux IR Active |
| Electronic Shutter | 1/4 ~ 1/100,000s |
| Day/Night | Auto (ICR) / Colour / B&W |
| Infrared Range | 40m |
| White Balance | Auto / Manual |
| Noise Reduction | 2D / 3D |
| Gain Control | Auto |
| Lighting Compensation | BLC / HLC / WDR (120dB) |
| Detect (25px/m) | 84m |
| Observe (63px/m) | 34m |
| Recognise (125px/m) | 17m |
| Identify (250px/m) | 8m |
| Resolution | 8.0MP (3840 x 2160) to CIF (352 x 288) |
| Frame Rate | 15fps (8.0MP) / 20fps (6.0MP) / 25fps (4.0MP and lower) |
| Transmission Distance | Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions) |
| Audio Input | 1 channel in & Built-in Mic |
| Alarm Interface | N/A |
| Video Output | 1 x HDCVI / AHD / TVI / Composite video output (switchable via DIP switch) |
| Modes Supported | HDCVI, AHD, HDTVI & Composite |
| Mode Switching | DIP Switches |
| Synchronisation | Internal |
| OSD Menu | Support |
| Ingress Protection | IP67 |
| Vandal Resistant | N/A |
| Series | Professional Series |
| Housing | Aluminium |
| Camera Type | Bullet |
| Tri-Axis Mounting | No |
| Power Input | 12VDC |
| Power Consumption | < 8W |

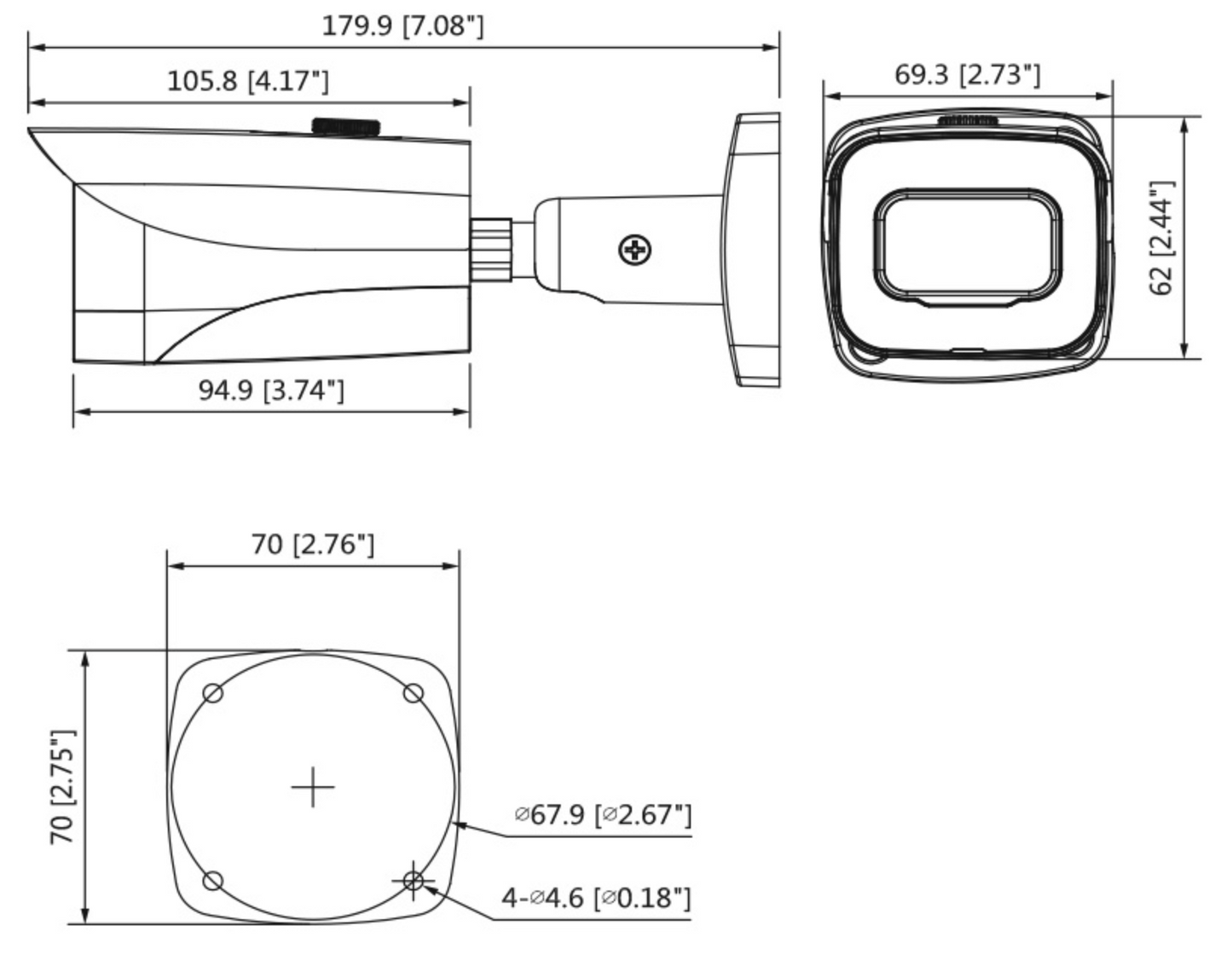

| Dimensions | 180 x 70 x 70mm |
| Weight | 0.42kg |
| Operating Environment | -30° to 60°C / RH90% (max) |
| Category | HDCVI Surveillance |
| Warranty (Years) | 4 |
Shipping Weight and Dimensions
Includes product packaging
| Width | 106 mm |
| Height | 206 mm |
| Depth | 97 mm |
| Weight | 0.50 kg |
