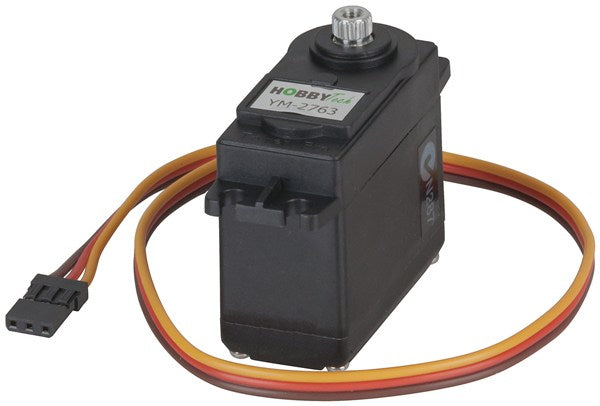

Servo Motor - Standard 6 Volt with Metal Gear - 13kg YM2763
Servo Motor - Standard 6 Volt with Metal Gear - 13kg YM2763
Regular price
$42.95
Regular price
Sale price
$42.95
Unit price
per
Taxes included.
Couldn't load pickup availability
These metal gear servos are an excellent replacement for the standard servos commonly used in all 1/10th and many 1/8th scale remote control cars, or for use in any number of robotics applications.
They feature digital control and super-tough metal gear construction with very high torque and super-quick rotational speeds. Perfect for the steering servo on an off-road truck or buggy where precise control and strength are needed.
Features:
- High speed and high torque digital servos
- Metal gears for maximum strength and durability
Specifications
| Operating Temperature : 0°C, 50°C |
| Length : 40.7mm |
| Width : 19.7mm |
| Height : 42.9mm |
| Weight : 55g |
| DC Voltage : 4.8V, 7.2V |
| DC Current Draw : 1.2A |
| Item connection : Flyleads |
| Packaged Volume : 0.2l |
| Packaged Weight : 0.07kg |
| Packaged Length : 11.1cm |
| Packaged Width : 7.6cm |
| Packaged Height : 2.4cm |
| Motor Type : Servo Motor |
| Motor Nominal Voltage : 6V |
| No load current : 170mA |
| No load RPM : 58RPM |
| Full load current : 1.2A |
| Full load torque : 13kg.cm |
| Servo Size : Standard |
| Servo Torque : 13 (6V) / 10.5 (4.8V)kg.cm |
| 60 Degree Transmit Time : 0.17(6V) / 0.2 (4.8V)sec |
| Servo Horns Included : true |
| Dual Bearing : true |
| Servo Arduino Compatible : true |
| Gear Material : Metal |
