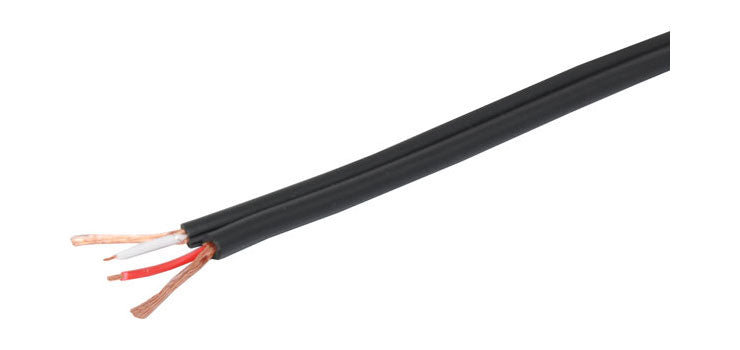

Shielded Cable Heavy Duty Figure 8 Shielded Cable Sold by the Meter W2995

Conductor

• Material: Bare Copper
• AWG: 25AWG
• Construction: 16/0.12mm ± 0.008mm
• Stranded Diameter: 0.55mm

Insulation

• Material: SR-PVC
• Average Thickness: 0.33mm
• Insulation Diameter: 1.30mm ± 0.008mm
• Core Assembly: 2 Cores

Shielded

• Material: Bare Copper
• Construction: 34/0.12mm ± 0.008mm
• Diameter: 1.54mm (each shielded)

Jacket

• Material: PVC
• Average Thickness: 0.92mm
• Cable Diameter: 3.6 x 7.2 ± 10mm

Colour

• Insulation: Red/White
• Jacket: Black

Physical & Electrical Characteristics

• Maximum DC Resistance: 11.1Ω/100m @ 20°C (max)
• Tensile Strength (Insulation): ≥ 2.11kgf/mm2
• Tensile Strength (Jacket): ≥ 1.05kfg/mm2
• Elongation (Insulation & Jacket): ≥ 100%

Mechanical Characteristics

• Cold Blend: -20 ± 2°C/4hr No Crack

Packaging

• Drum Size: 100m
