Signal Processors Line Isolation Transformer 600 ohms to 600 ohms XLR A2519
Signal Processors Line Isolation Transformer 600 ohms to 600 ohms XLR A2519
Regular price
$48.95
Regular price
Sale price
$48.95
Unit price
per
Taxes included.
Couldn't load pickup availability

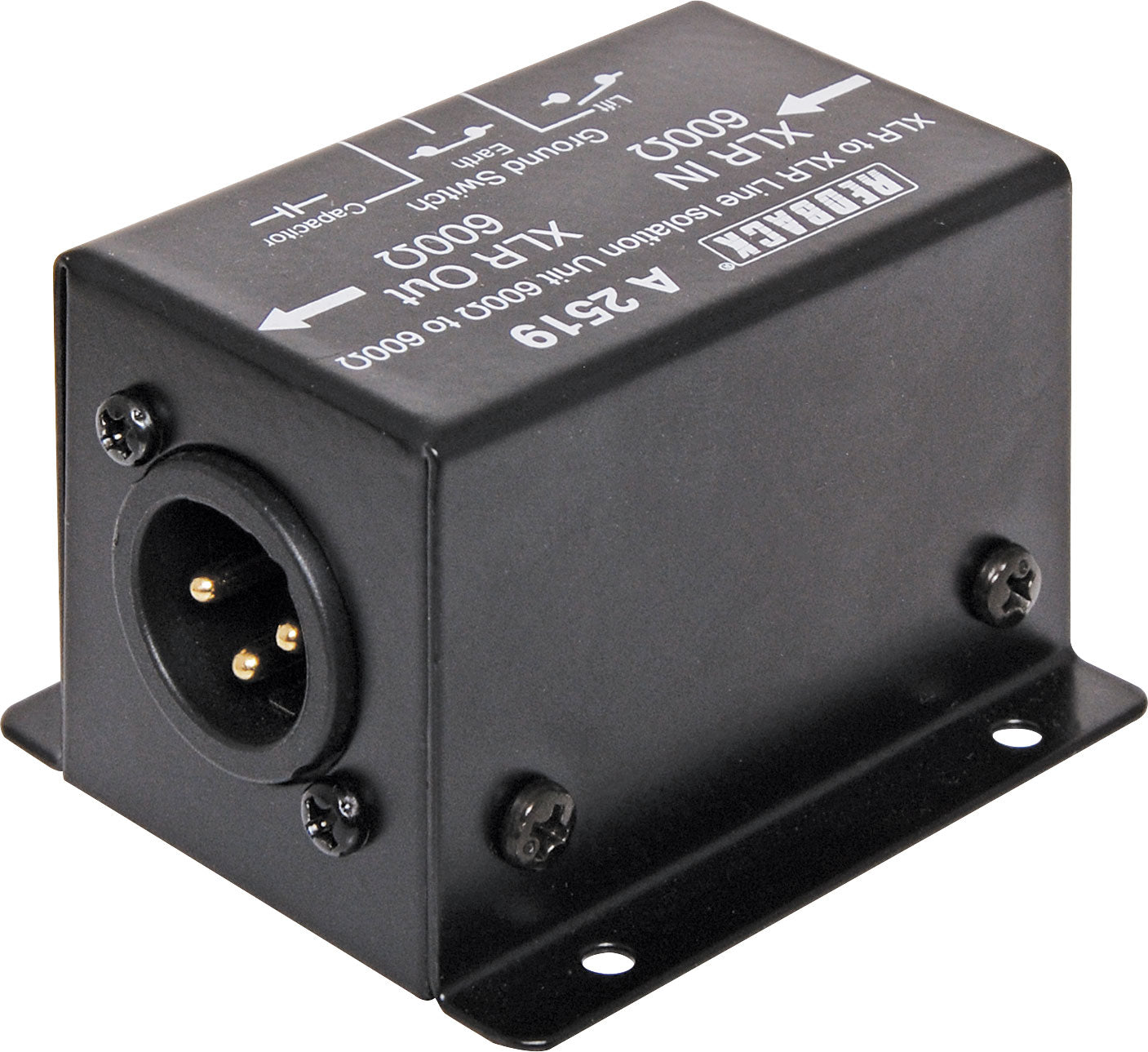

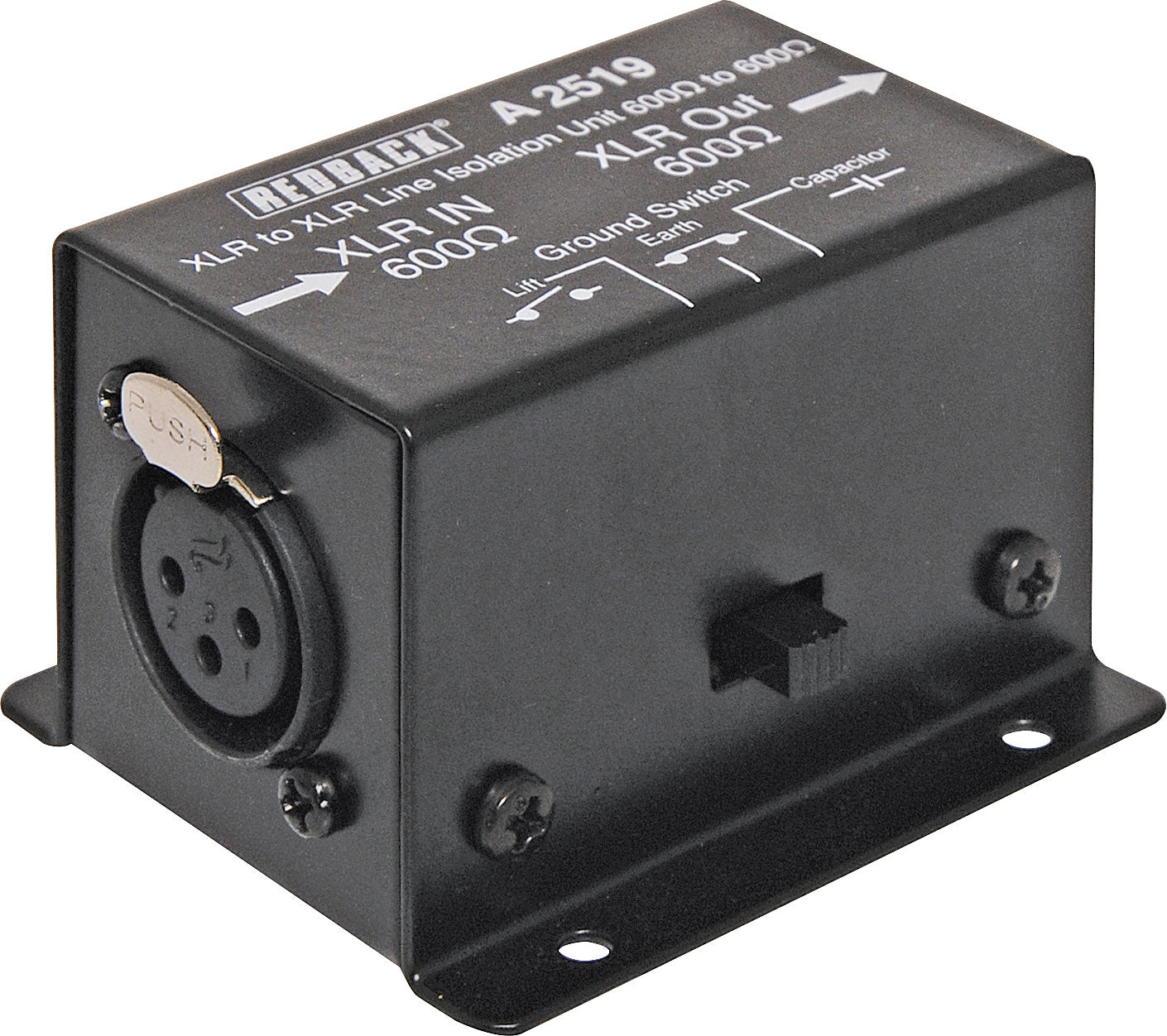

This unit is designed as an isolation unit to prevent hum loops in audio systems. Balanced 600Ω to balanced 600Ω 3 pin male XLR with ground, lift and capacitive coupling switch.
Specifications
- Frequency response: 20 Hz - 20kHz +/- 3dB
- Input level: 0.775Vrms
- Output level: 0.775Vrms
- Maximum output level before distortion: +18dBm
- Distortion: <0.05%
- Signal to noise ratio (IEC-A): >110dB
