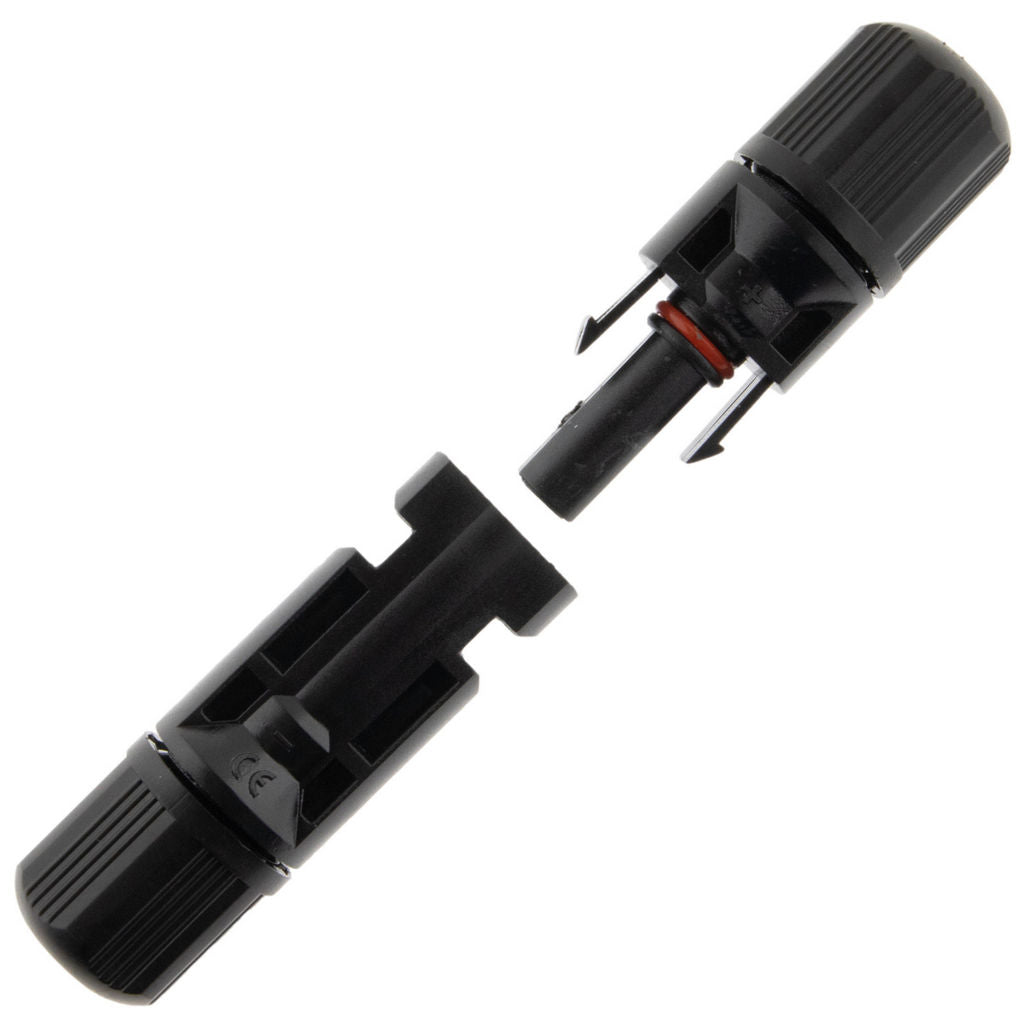

Solar Mc4 Connectors 5xPlug 5x socket 10pk Sc19300

 Note that this connector is a single contact type plug so you can arange solar panel connections in series.

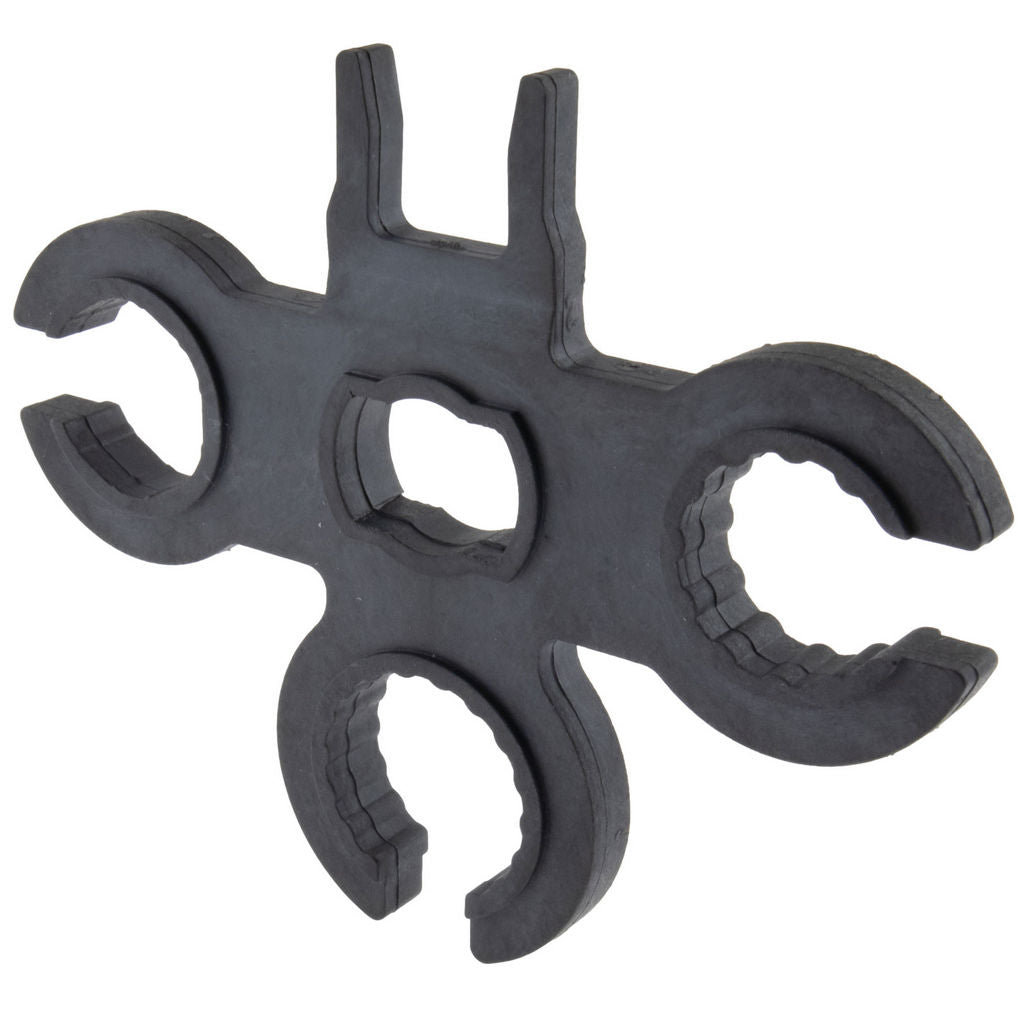

MC4 plug-in connector for photovoltaics. The set consists of 5 piece of male and 5 piece of female connectors. IP67 rated. Suits cable with outer diameter between 4.5-8.5mm, and 2.5-6mm² cable size. Supports power up to 1000V DC and 30A. Includes a plastic wrench.

• Fits cable size 2.5-6mm².
• Suits cable outer diameter between 4.5-8.5mm.
• Max voltage: 1000V DC.
• Max current: 30A.
• Complies with UL94-VO standards.

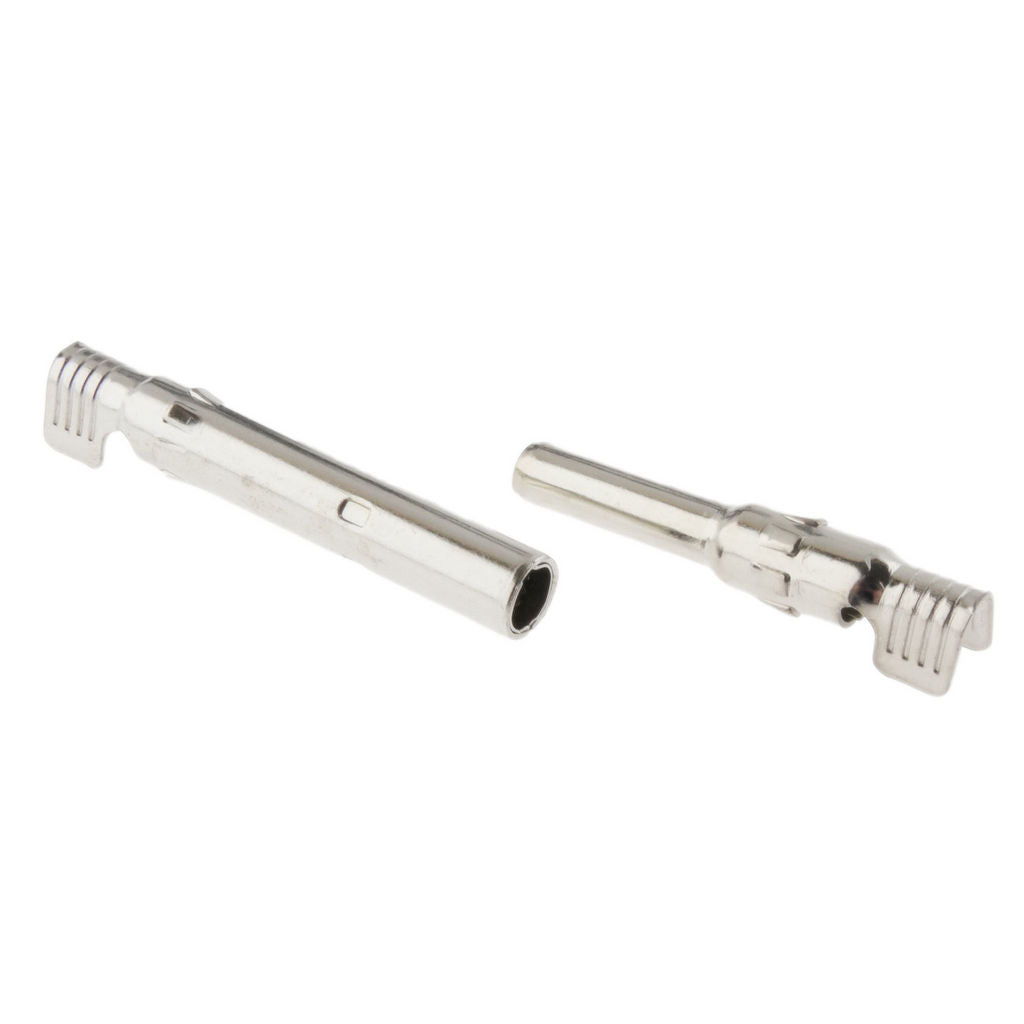

• Tin plated copper contacts.
• Provides IP67 protection.
• Operating temperature: -40°C to 125°C.

Specifications
