Specialised Switches Momentary SPDT IP54 Low Profile Foot Pedal Switch S2700

Specialised Switches Momentary SPDT IP54 Low Profile Foot Pedal Switch S2700

$28.75
$28.75
Sale Sold out
Taxes included.

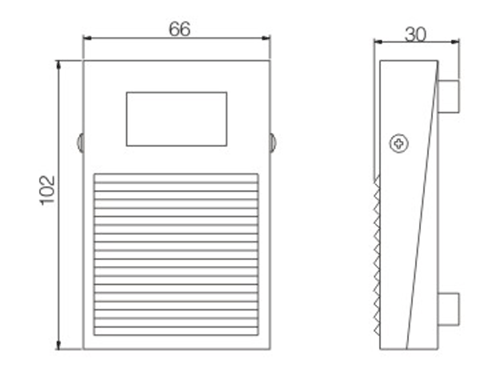

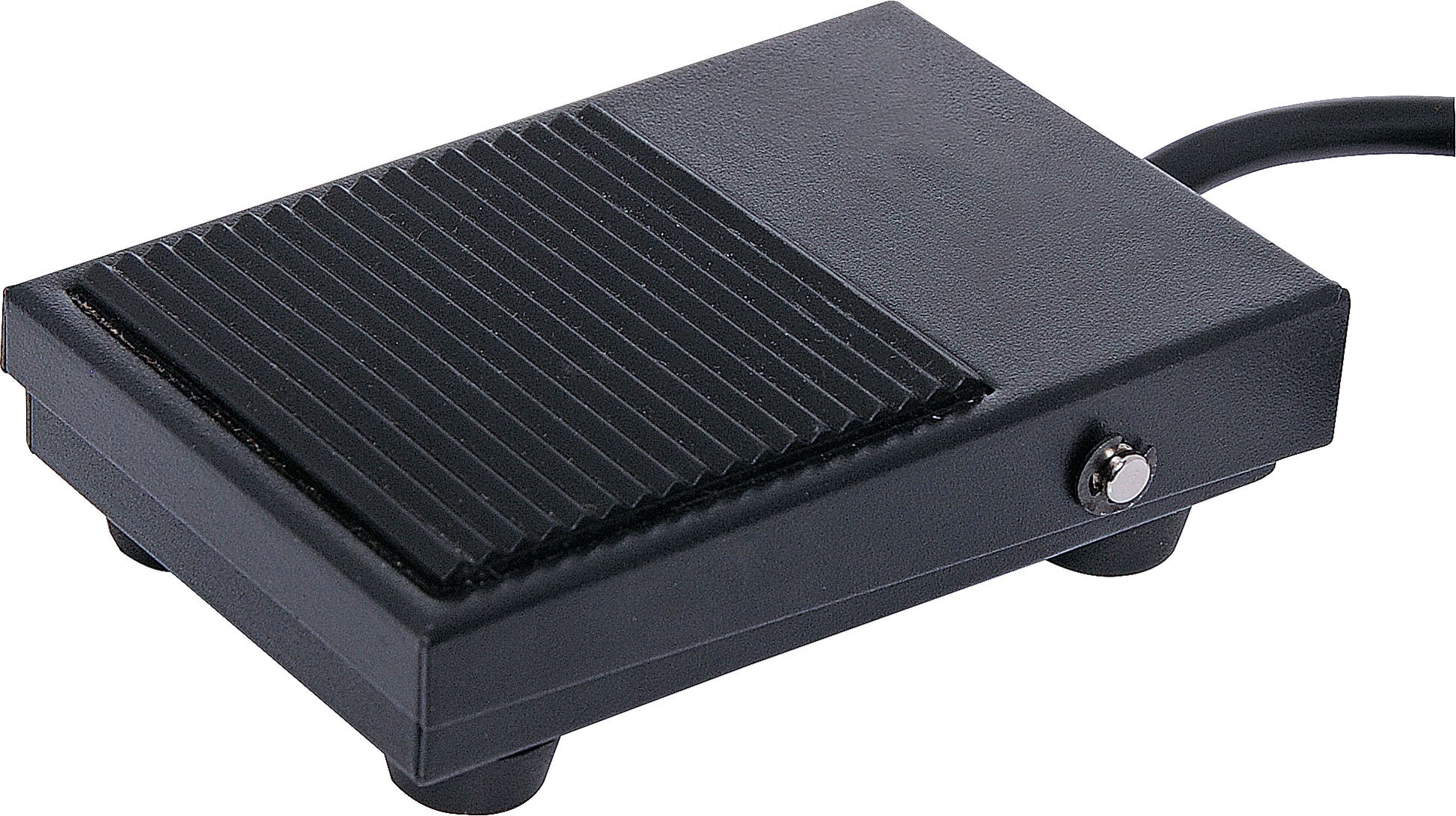

Momentary footswitch designed for foot operation of DC powered equipment. Metal casing ensures a long life. Fitted with rubber feet and 1m cable. 102L x 66W x 30Hmm.

Specifications

  • Contact: 1C
  • Material: Rind iron.
  • Contact resistance: 25mΩ
  • Contact rating: 5A @ 12-48V dc
  • Insulation resistance: 100MΩ DC500V
  • Dielectric strength: ≥2000V AC
  • Electrical life: >100,000 operations
  • Ingress protection: IP54
  • Temperature rating: -25 deg. C to +75 deg. C.
  • Humidity rating: <85%
