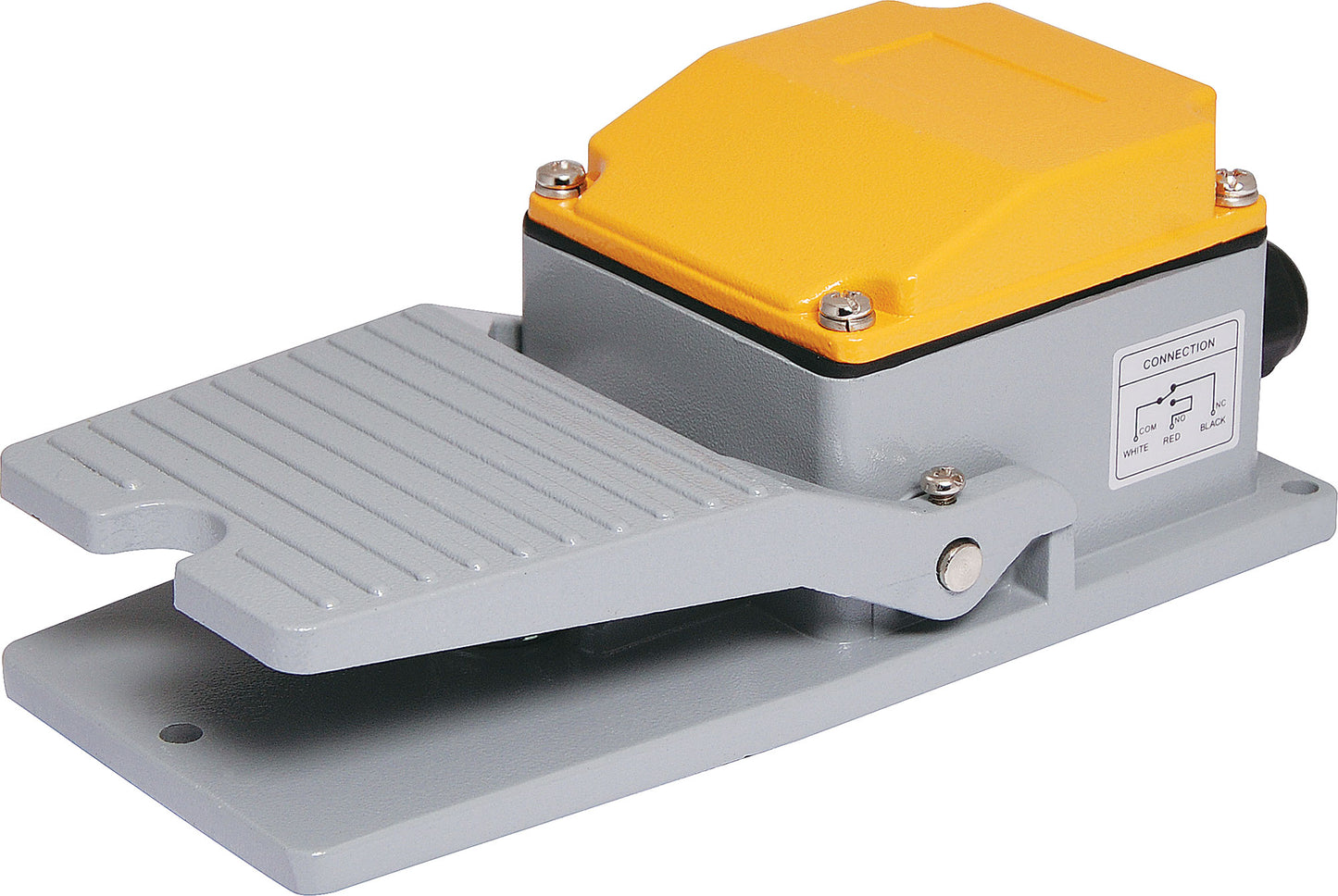

Specialised Switches Momentary SPDT IP65 Heavy Duty Foot Pedal Switch S2704
Specialised Switches Momentary SPDT IP65 Heavy Duty Foot Pedal Switch S2704
Regular price
$68.95
Regular price
Sale price
$68.95
Unit price
per
Taxes included.
Couldn't load pickup availability

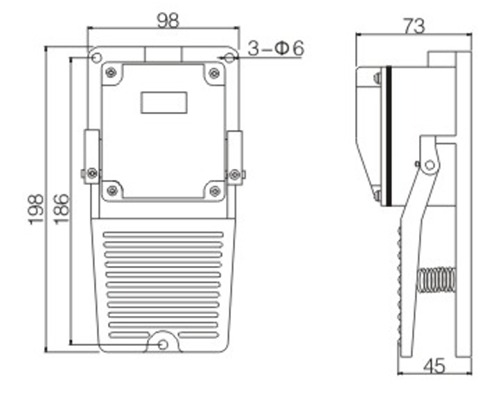

Momentary action, designed for foot operation of DC powered equipment. Diecast aluminium casing ensures a long life. Requires screw mounting to surface. 198L x 98W x 73Hmm.
Specifications
- Contact: 1C
- Material: Aluminium.
- Contact resistance: 25mΩ
- Contact rating: 5A @ 12-48V dc
- Insulation resistance: 100MΩ DC500V
- Dielectric strength: ≥2000V AC
- Electrical life: >100,000 operations
- Ingress protection: IP65
- Temperature rating: -25 deg. C to +75 deg. C.
- Humidity rating: <85%
- Thread (cable gland): Size G1/2.
