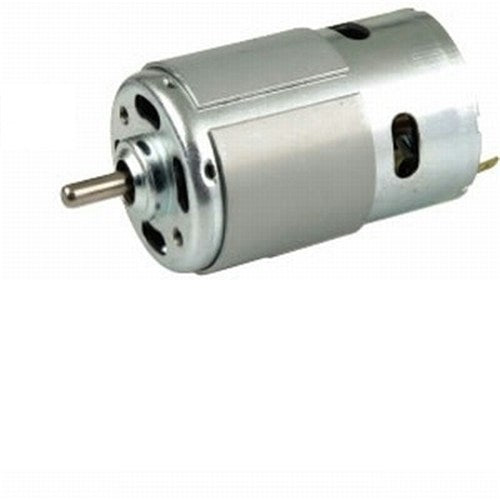

Standard (High Power) D.C. Motors 11000 RPM YM2770

SKU: 9319236907214


Astonishing speed and power from these compact ferrite magnet types.

All units feature hard steel drive shafts, long life design and are built in an ISO 9002 quality environment.

Operating Range: 6-12V

At Stall:
Current: 23.8A



Length : 71mm
Diameter : 36mm
DC Voltage : 6V, 12V
Packaged Volume : 0.1l
Packaged Weight : 0.22kg
Packaged Length : 8cm
Packaged Width : 3.5cm
Packaged Height : 3.5cm
Motor Type : High Power
Motor Nominal Voltage : 12V
No load current : 0.8A
No load RPM : 11800RPM
Full load current : 26A
Full load torque :
Max efficiency : 79%
Max efficiency power : 34.5W
Max efficiency RPM : 9800RPM
Maximum efficiency torque :
Max. efficiency current : 2.9A
Shaft diameter : 3.17mm
Shaft length : 15mm
