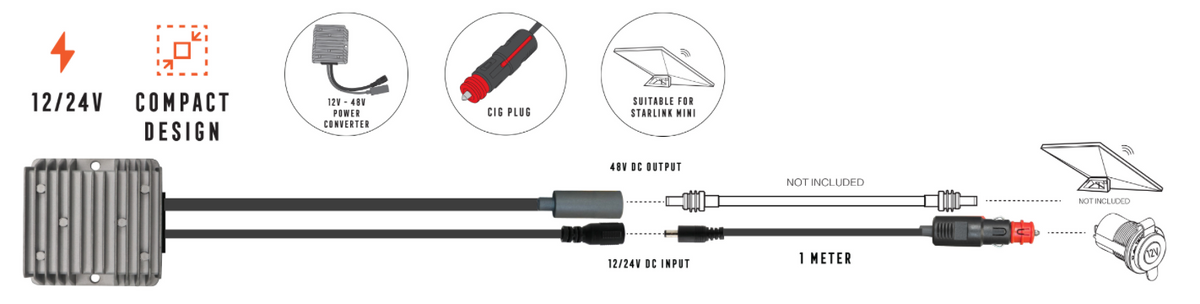

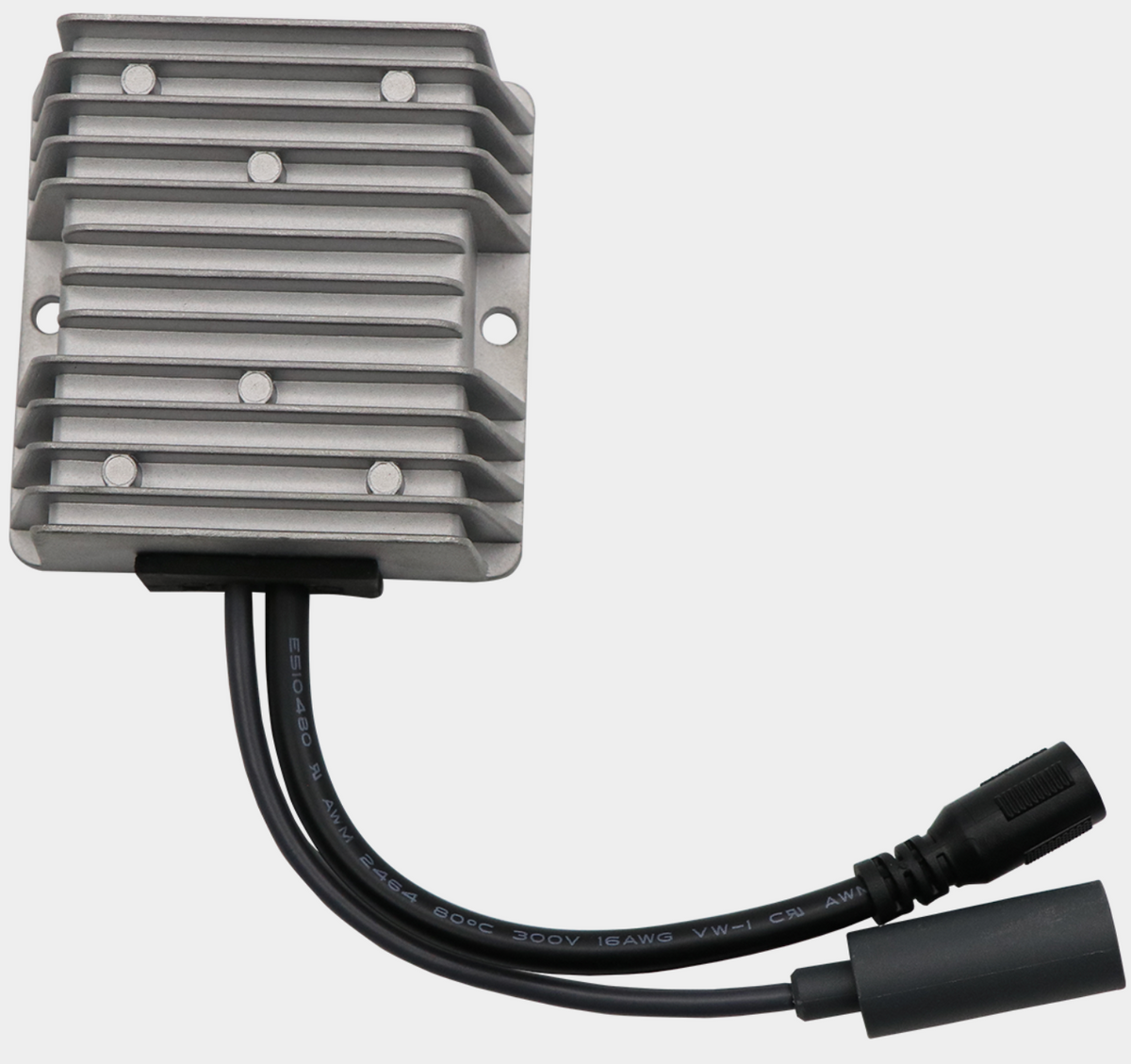

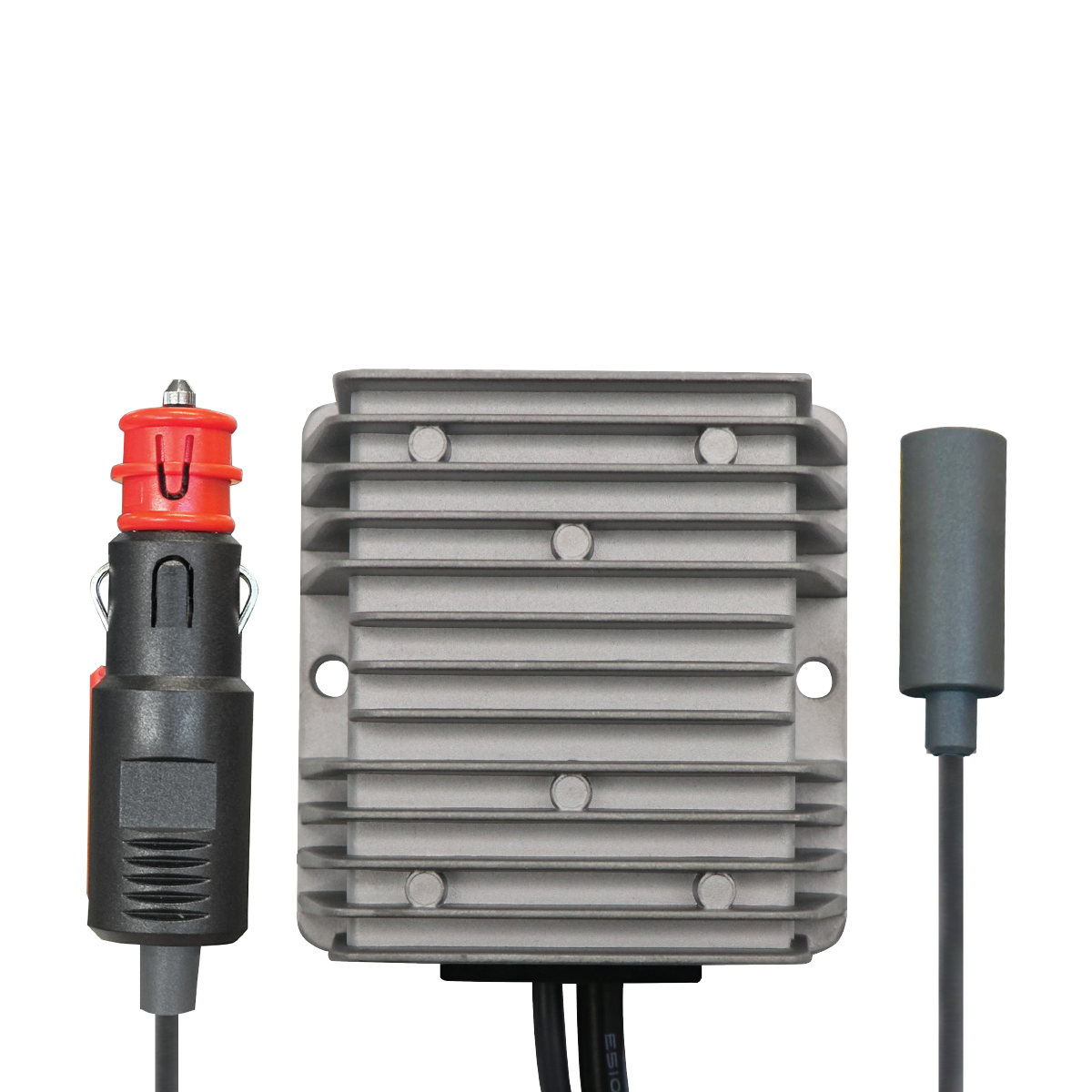

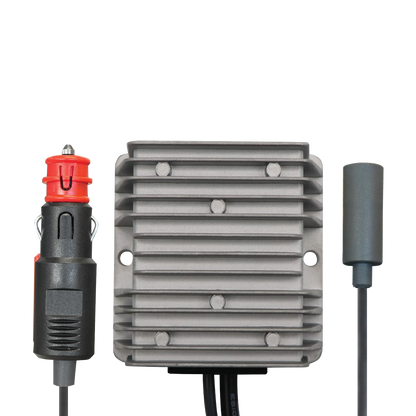

The SM-CIG48V will boost the standard 12V DC from a vehicle cigarette power outlet to a maximum of 48V DC which allows the STARLINK MINI to perform at its best. Being able to accept between 10V to 32V, it is suitable for a range of vehicles including trucks and machinery. It also includes a suite of safety features that enable it to work in extreme conditions, including thermal protection, over-current protection, and a DC isolated case.
Specifications
Input Voltage: 10-32V
Output Voltage: 48V
Output Power: 144W @ 13.8V
Output Current: 3A
Efficiency: 85-90%
Thermal Runaway Protection
Over-current Protection
Floating Case (DC Isolated)]
Dimensions: 78mm L x 75mm W x32mm H (excl. cables)
