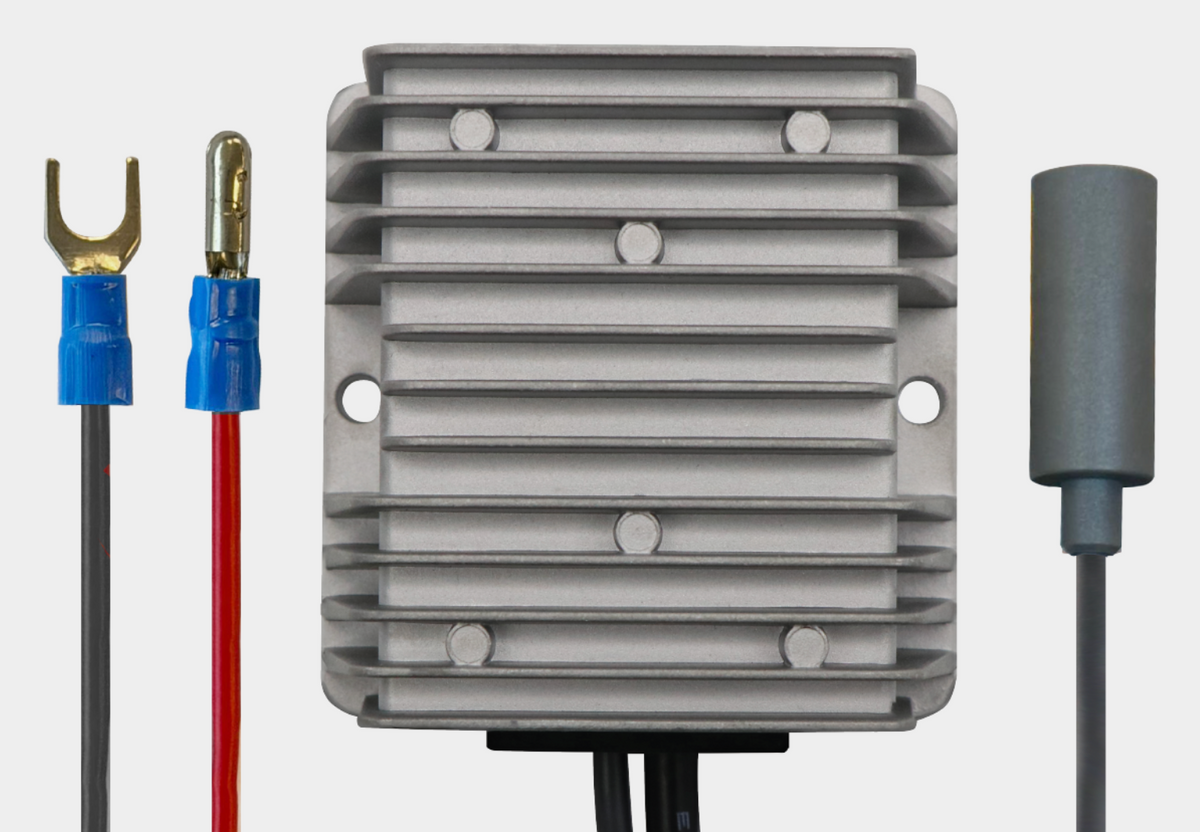

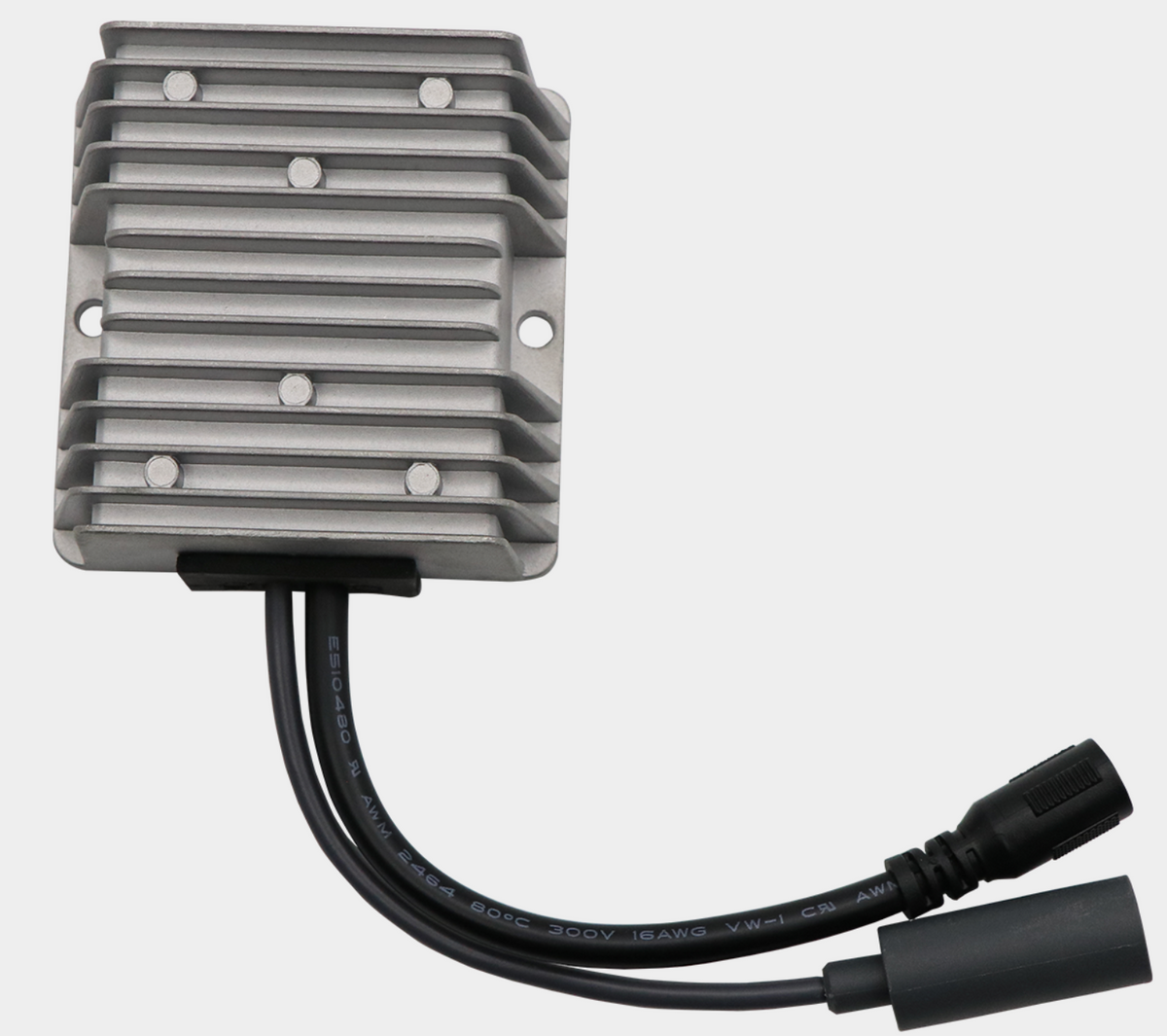

The MGX SM-DC48V by Autobacs boosts a vehicle’s 12V supply to 48V DC, ensuring optimal performance for the STARLINK MINI. Compatible with 10-32V systems, it suits a wide range of vehicles, including trucks and machinery. It features smart thermal and power management. Automatically reducing output voltage to control heat or when current draw exceeds 3A.
Specifications
Input Voltage: 10-32V
Output Voltage: 48V
Output Power: 144W @ 13.8V
Output Current: 3A
Efficiency: 85-90%
Thermal Runaway Protection
Over-Current Protection
Floating Case (DC Isolated)
Dimensions: 78mm L x 75mm W x 32mm H (Excl. Cabels)
Optional
Fuse Taps (NOT INCLUDED)
Certifications
EMC:AS/NZS2064, EN50081-2

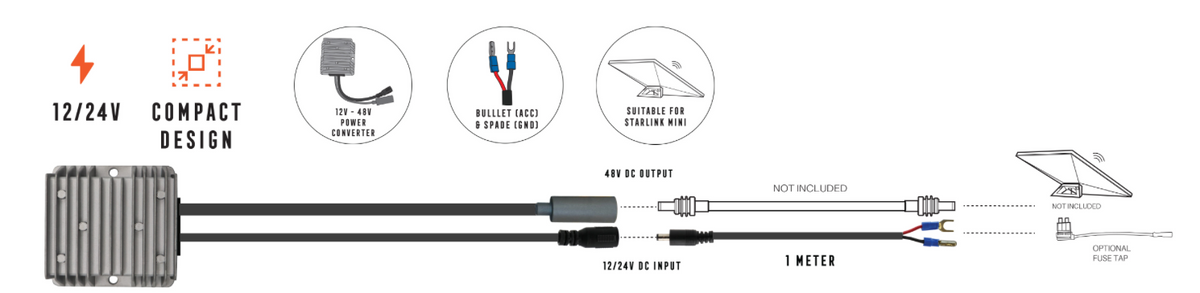

Includes:
1-meter Lead Terminated with Bullet (ACC) & Spade (GND)
