Starlink Standard Residential Installation Kit V4 02534003-CG
Starlink Standard Residential Installation Kit V4 02534003-CG
Regular price
$549.00
Regular price
Sale price
$549.00
Unit price
per
Taxes included.
Couldn't load pickup availability
High-Speed Internet No Matter How Remote
Engage in activities that have historically not been possible with satellite internet. Made possible via the world’s largest constellation of highly advanced satellites operating in a low orbit around the Earth.
Designed For Self-Install
Set up Starlink with just two steps. Instructions work in either order:
- Plug it in
- Point at Sky
Starlink requires an unobstructed view of the sky. Download the Starlink app to determine your best install location.
Unlimited Data Available
Starlink Residential service plans include unlimited, high-speed data options for your home.
Weather Resilient
Starlink is designed to endure the elements - it can melt snow and withstand sleet, heavy rain, and harsh winds.

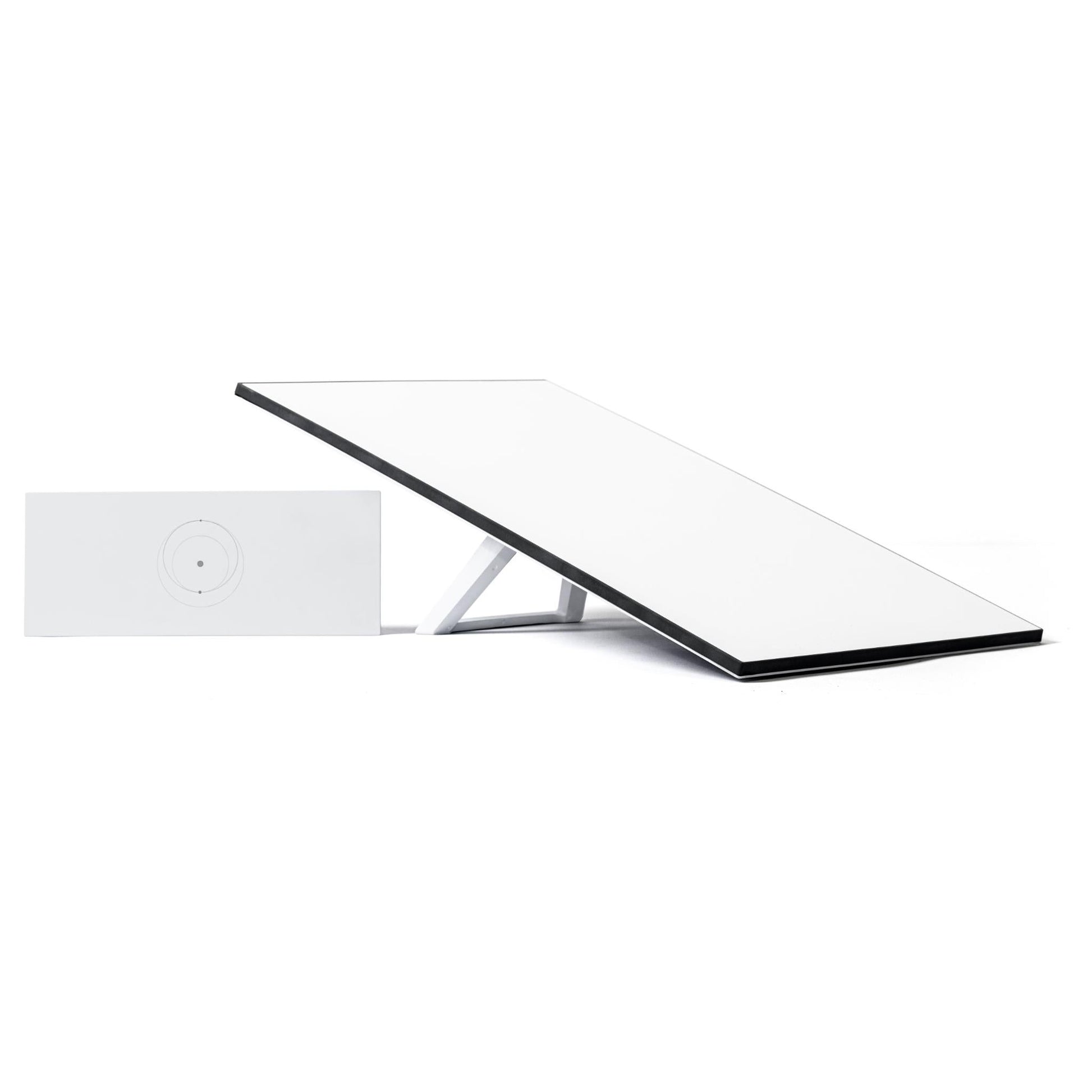

What's In The Box
- Starlink with Integrated WiFi

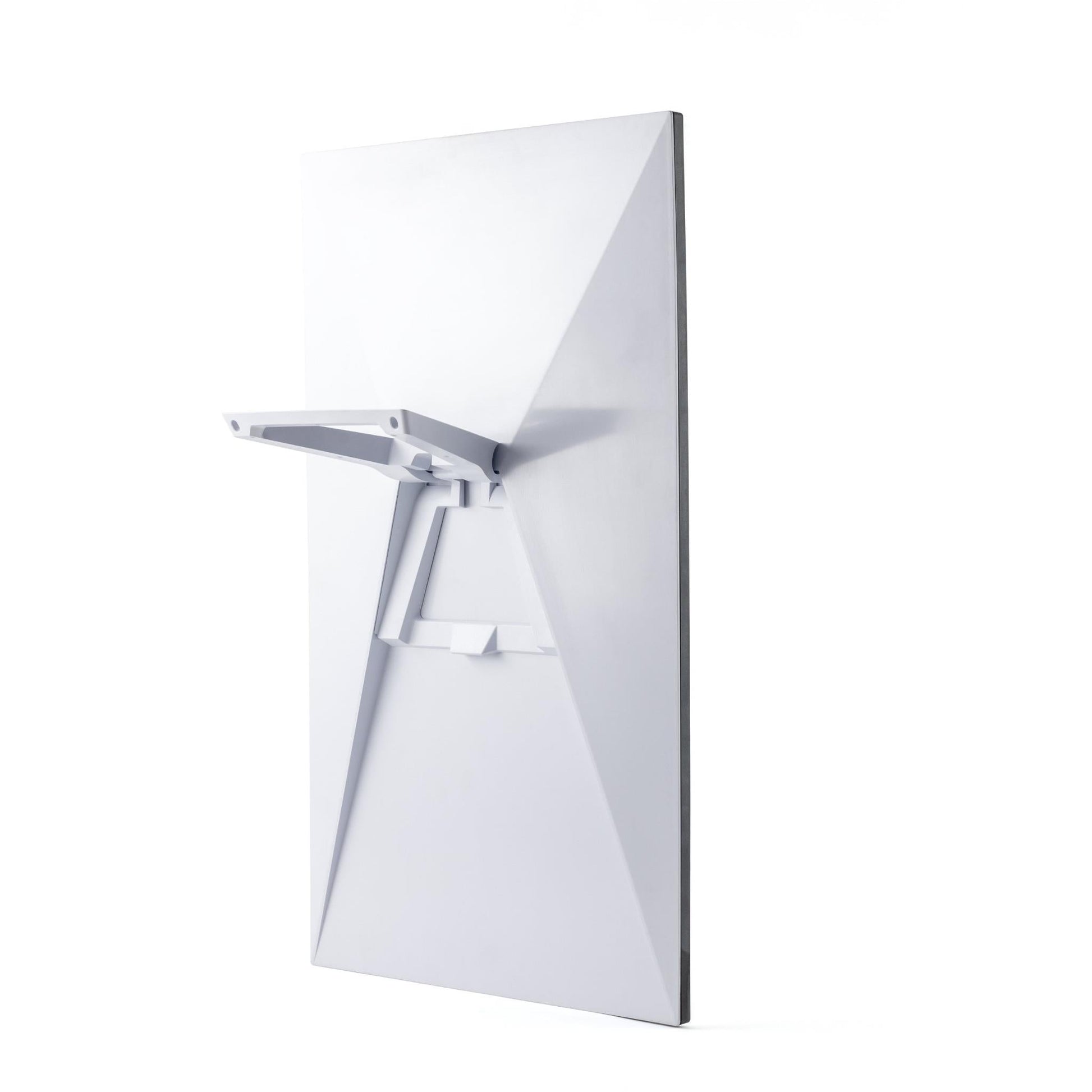

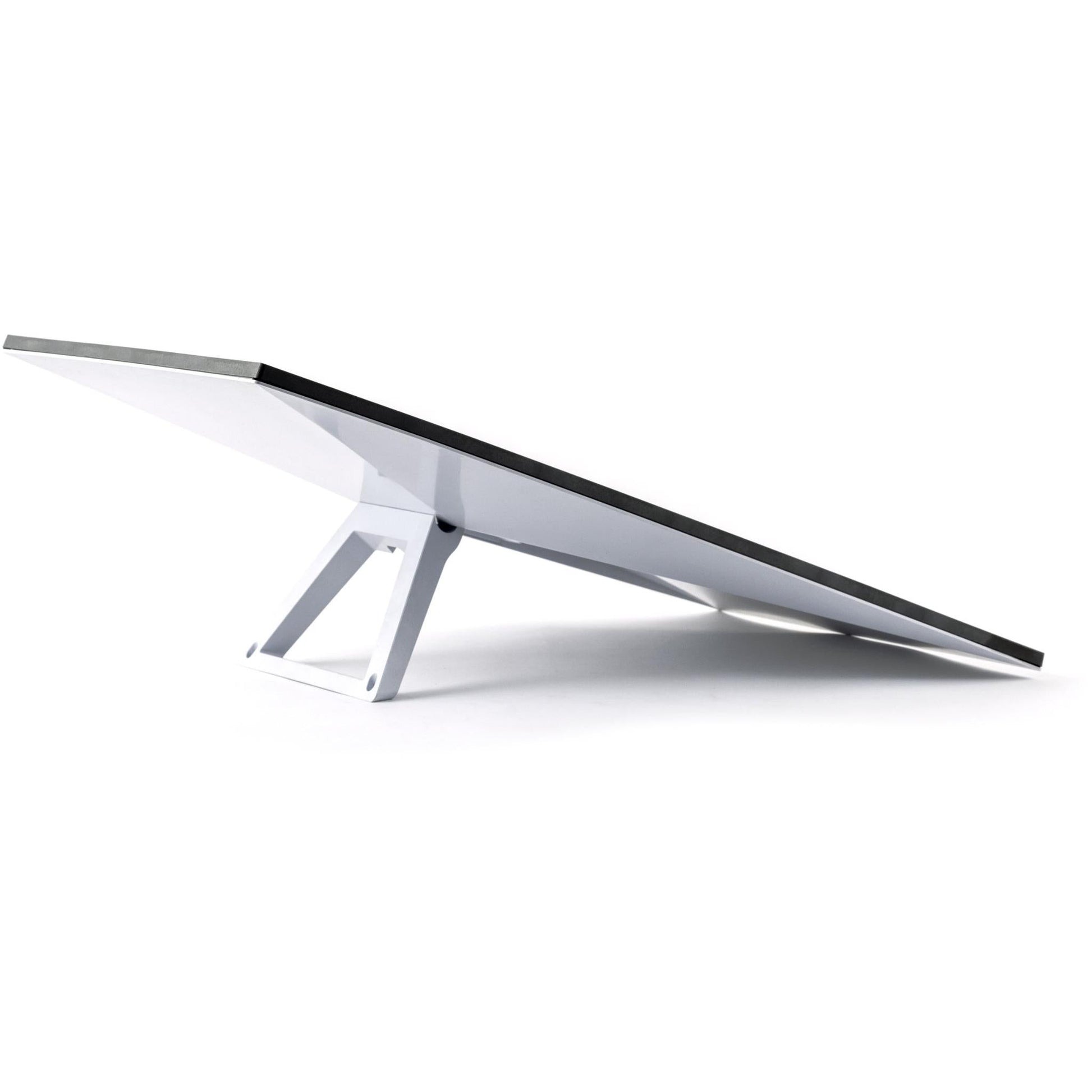

- Kickstand

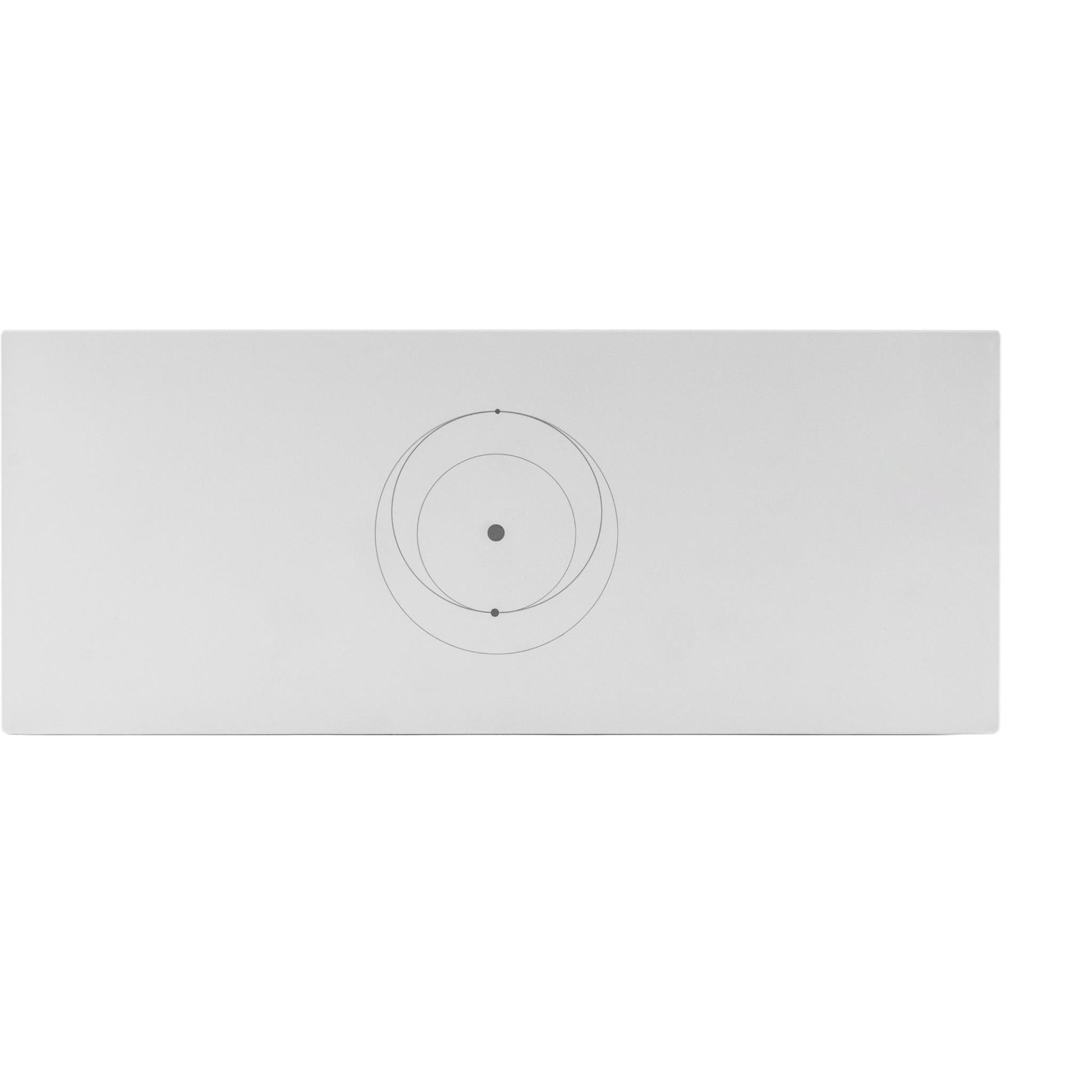

- Gen 3 Router
- Starlink Cable 15 m (49.2 ft)
-
AC Cable 1.5 m (4.92 ft)
- Power Supply 1.5 m (4.92 ft)
Resources
- Product Specifications
- Setup Guides
- Starlink App (iOS)
- Starlink App (Android)
- Support
- Setup Video
- Installation Video
- Product 3D Models
Specifications
Starlink
| Antenna | Electronic Phased Array |
| Field of View | 110 ° |
| Orientation | Software Assisted Manual Orienting |
| Weight | 2.9 kg (6.4 lb), 3.2 kg (7 lb) with Kickstand |
| Environmental Rating | IP67 Type 4 |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Wind Speed | Operational: 96 kph+ (60 mph+) |
| Snow Melt Capability | Up to 40 mm / hour (1.5 in / hour) |
| Power Consumption | Average: 75 - 100 W |

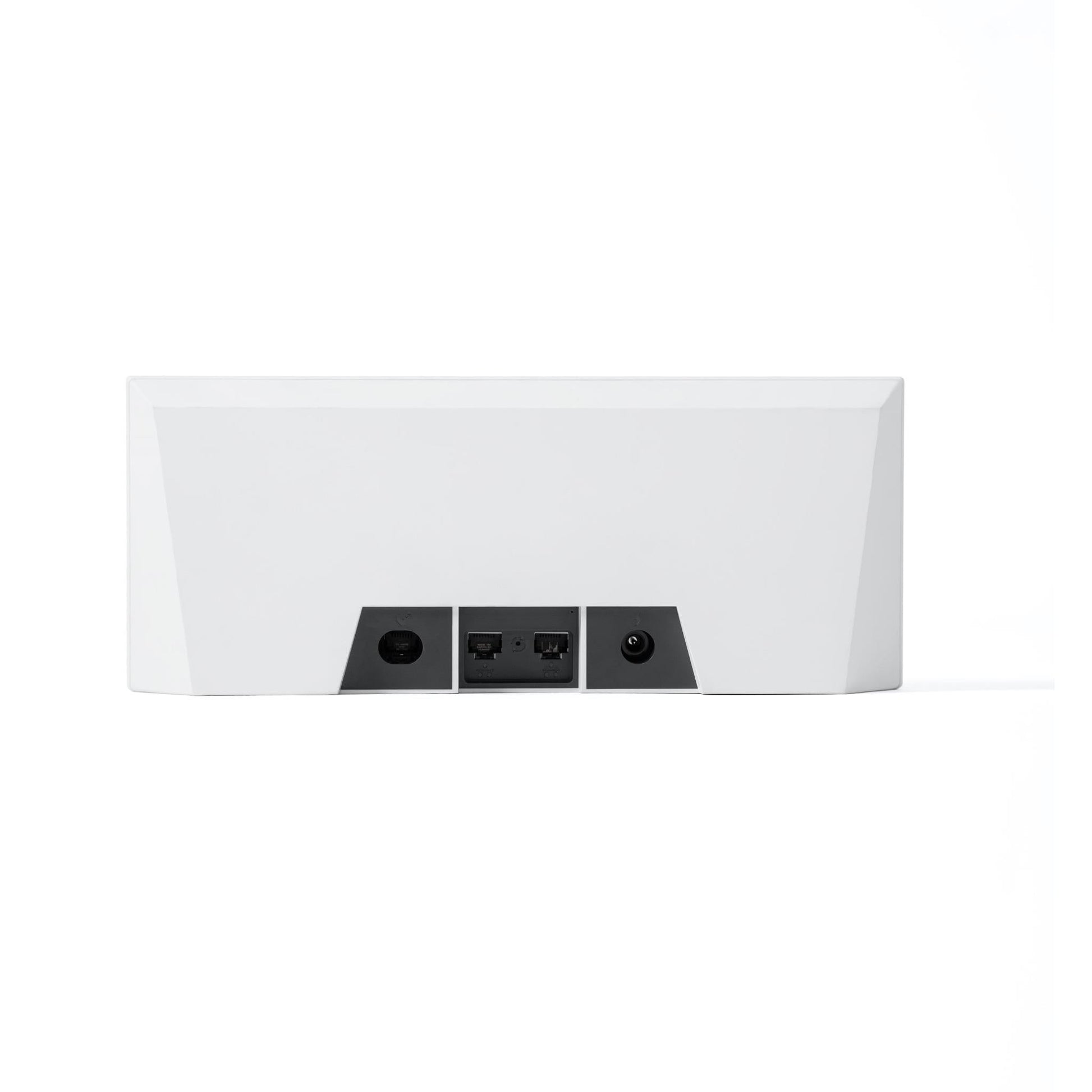

Starlink Wifi Router
| Product Dimensions | 43.4 x 298.6 x 120.4 mm (1.7 in x 11.76 in x 4.74 in) |
| Wi-Fi Technology | 802.11 a/b/g/n/ac/ax |
| Generation | Wi-Fi 6 |
| Radio | Tri Band 4 x 4 MU-MIMO |
| Ethernet Ports | Two (2) Latching Ethernet LAN ports with removable cover |
| Coverage | Up to 297 m² (3,200 ft²) |
| Operating Temperature | -30°C to 50°C (-22°F to 122°F) |
| Weight | 0.57 kg (1.25 lbs) |
| Security | WPA2 |
| Environmental Rating | Meeting IP56 (Water Resistant), configured for indoor use |
| Power Indicator | LED | face plate, lower left corner of router |
| Mesh Compatibility | Compatible with Starlink Gen 2 and Gen 3 Mesh nodes, up to 3 Starlink Mesh Nodes. *Not compatible with 3rd party mesh systems |
| Devices | Connect up to 235 devices |
Starlink Power Supply
| Product Dimensions | 173 x 93 x 35.75 mm (6.8 in x 3.66 in x 1.4 in) |
| Weight | 0.65 kg (1.43 lbs) |
| Environmental Rating | IP66 Type 4 |
| Operating Temperature | -30°C to 60°C (-22°F to 140°F) |
| Power Specifications | 100-240V ~ 2.5A 50 - 60 Hz |
