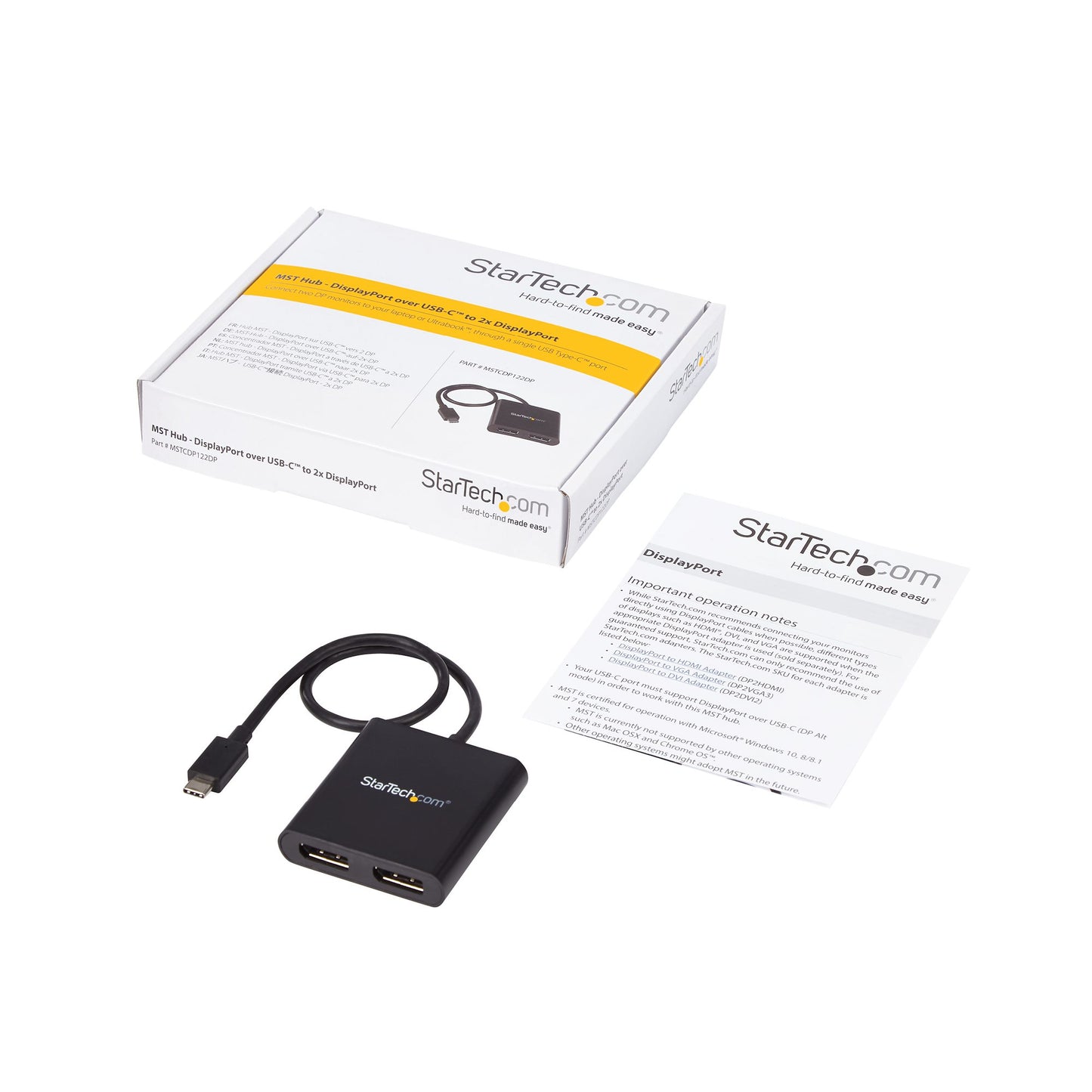

Startech Usb-c To Displayport 2-port Mst Hub 3372931

SKU: 065030864497

Price:
$129.95

Create a high-performance dual-display workstation by connecting a USB Type-C device to two independent DisplayPort monitors

  • MULTI-MONITOR CONFIGURATION: USB Type-C to Dual DisplayPort adapter/splitter drives up to 2x 4K 30Hz or 2x 1080p 60Hz DP monitors using a USB-C DP Alt-Mode port on Windows laptops; TB3/TB4/USB4 Compatible; Not compatible with macOS
  • NO DRIVERS OR SOFTWARE: Increase productivity by adding two extended or mirrored displays to a Windows laptop; Utilise integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
  • HARDWARE COMPATIBILITY: Host system must support DP Alt Mode 1.2 / HBR2 / MST; Please verify maximum number of displays supported by your GPU; Some GPU chips (such as Intel HD Graphics) are only capable of supporting a maximum of three displays
  • EXTRA-LONG CABLE: 1ft (30 cm) built-in cable for extended reach reduces USBC port/connector strain on 2-in-1 devices like Surface Pro 7, HP Elite x2/laptops on riser stands; Ideal for on-the-go travel use in office/home office/shared workspaces
  • OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the USBC to Dual DisplayPort Adapter

This USB-C to DisplayPort MST Hub lets you connect two DisplayPort monitors to your USB Type-C Windows device, conveniently helping you to maximise your productivity.

Multitasking Made Easy

With devices becoming more portable than ever, you can be limited to fewer video outputs and confined to your small integrated screen. This multi-stream transport hub solves that problem by enabling you to connect two separate displays to your USB-C computer, making multitasking much easier.

Using this USB-C to dual DisplayPort monitor adapter, you can mirror your display onto additional monitors or stream independent content to each display, which makes it the ideal accessory for travel or hot-desking.

Astonishing Picture Quality

MST technology uses your existing video card to minimise the use of system resources, while delivering UHD 4K resolutions for two monitors or displays simultaneously. With support for HD 1080p and UHD 4K, the dual-monitor splitter is perfect for all high-resolution applications such as graphic design and CAD drawing.

Hassle-Free Setup

Multi-stream transport offers an easy setup, by natively working on any Windows device that supports DP Alt Mode over USB Type-C. This USB-C dual-monitor adapter is Thunderbolt 3 compatible, and offers plug-and-play installation with no drivers or software required. Additionally, this DP MST hub is powered by the USB-C port, meaning no external power cords are necessary.

Applications

  • Extend your desktop onto additional monitors or displays
  • Create dynamic digital signage with a panoramic video wall
  • Avoid side-scrolling by spanning across dual monitors
  • Edit media across additional displays in any orientation
  • Ideal for travel or hot-desking

Compatibility

  • Microsoft Windows 11, 11 ARM, 10, 10 ARM, 8/8.1, 7

Specifications

Connector(s)
Connector A
  • 1 - USB-C (24 pin) DisplayPort Alt Mode
Connector B
  • 2 - DisplayPort (20 pin)

Environmental

Operating Temperature
  • 5°C to 35°C (41°F to 95°F)
Storage Temperature
  • -20°C to 60°C (-4°F to 140°F)
Humidity
  • 50-90%

Hardware

AV Input
  • USB-C
Ports
  • 2
AV Output
  • DisplayPort - 1.2
Audio
  • Yes
Chipset ID
  • MegaChips - STDP4320
  • VIA/VLI - VL100

Packaging Information

Package Height
  • 1.2 in [3.0 cm]
Package Length
  • 6.7 in [17.0 cm]
Shipping (Package) Weight
  • 4.8 oz [136.0 g]
Package Width
  • 5.7 in [14.4 cm]
Package Quantity
  • 1

Performance

Audio Specifications
  • DisplayPort - 5.1 Channel Audio
Maximum Cable Distance To Display
  • 6.6 ft [2 m]
Maximum Digital Resolutions
  • 3840x2160 @ 30hz
Supported Resolutions
  • Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup.

Average resolution bandwidth allocation

1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%

Note: Exceeding 100% will reduce functionality.

Wide Screen Supported
  • Yes

Physical Characteristics

Colour
  • Black
Cable Length
  • 12.8 in [32.4 cm]
Product Length
  • 15.2 in [38.6 cm]
Product Width
  • 2.3 in [5.8 cm]
Product Height
  • 0.6 in [1.4 cm]
Weight of Product
  • 1.6 oz [44.0 g]

Power

Power Source
  • USB-Powered

Software

OS Compatibility
  • Microsoft Windows 11, 11 ARM, 10, 10 ARM, 8/8.1, 7

Special Notes / Requirements

Note

DisplayPort 1.2 with MST+HBR2 support from the GPU is required for independent display output

Your USB-C equipped device must support video (DP alt mode) to work with this adapter

What's in the Box

Included in Package
  • 1 - MST hub
  • 1 - quick-start guide
