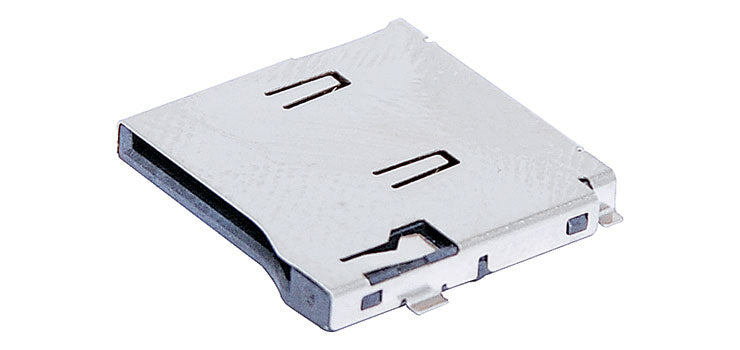

Surface Mount Micro SD Slot Type Memory Card Socket P5717

Push-push secure locking type. When inserted, card locks in. When card is pushed it springs outward.

Note: This item has a different footprint to the previous model P 5718.

Housing: High Temperature Plastic UL94V-0
Contacts: Copper Alloy
Shell: metal
Current rating: 0.5A
Voltage rating: 10V AC
Dielectric withstanding voltage: 500V AC for 1 minute
Insulator resistance: 100MΩ min. at 100mA DC
Contact resistance: 100mΩ max. at 100mA DC
Operating temp.: -20ºC ~ +80ºC
