Now with 4MP AHD recording on each channel & hybrid video recording for easy integration with IP cameras (IP cameras not included in package).
A total home or small business solution.
• Includes cameras, digital video recorder, connection leads & power supplies.
• Easily installs in just a few hours.
• Ideal for home or office.
• Suitable for DIY
• Just add a hard drive and plug it in!
Professional grade Hybrid Video Recorder (HVR).
The HVR includes professional grade features such as adjustable video quality, H.264 compression, external USB drive support, HDMI monitor connection, file management, date/time stamping, mouse & IR remote; schedule & motion. Ethernet connection provides the convenience of remote monitoring (but not archive footage playback) on most platforms and smart devices. CVI, TVI 2.0, TVI 3.0 and ONVIF compatible IP cameras may also be connected.
High spec cameras.
Each kit includes infra-red equipped cameras providing excellent quality picture during both day and night. Fitted with wide angle 2.8mm lenses for greater coverage. All cameras are IP66 weatherproof allowing you the flexibility of mounting indoors or in exposed outdoor locations.

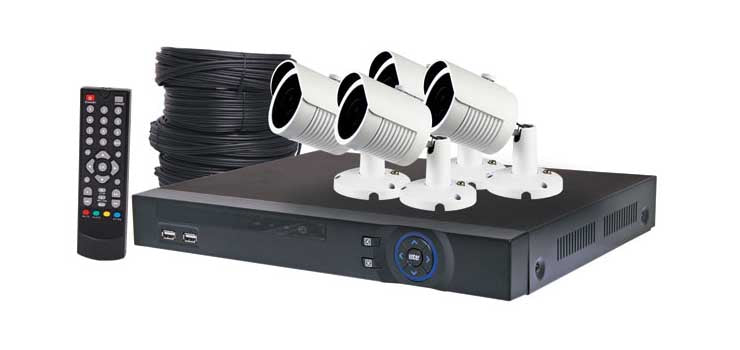

Package contents
• H.264 digital video recorder.
• 4 x bullet cameras
• 20m BNC & power combo leads.
• Power splitter lead.
• Power supply.
A total home or small business solution.
• Includes cameras, digital video recorder, connection leads & power supplies.
• Easily installs in just a few hours.
• Ideal for home or office.
• Suitable for DIY
• Just add a hard drive and plug it in!
Professional grade Hybrid Video Recorder (HVR).
The HVR includes professional grade features such as adjustable video quality, H.264 compression, external USB drive support, HDMI monitor connection, file management, date/time stamping, mouse & IR remote; schedule & motion. Ethernet connection provides the convenience of remote monitoring (but not archive footage playback) on most platforms and smart devices. CVI, TVI 2.0, TVI 3.0 and ONVIF compatible IP cameras may also be connected.
High spec cameras.
Each kit includes infra-red equipped cameras providing excellent quality picture during both day and night. Fitted with wide angle 2.8mm lenses for greater coverage. All cameras are IP66 weatherproof allowing you the flexibility of mounting indoors or in exposed outdoor locations.
Package contents
• H.264 digital video recorder.
• 4 x bullet cameras
• 20m BNC & power combo leads.
• Power splitter lead.
• Power supply.
Features
- H.264 compression
- Simultaneous all channel recording
- Near real time recording 15fps per ch. @ 4MP
- Real time 25fps @ 1080p
- AHD/CVI/TVI/IP camera compatible
- 2 SATA HDD bays (12TB max).
- QR code remote viewing app set up
- USB 2.0 ports for backup
- Audio inputs
- Schedule & motion detect recording
- Alarm triggered recording with 4 alarm inputs and 1 output
- Hexaplex operation: preview, recording, playback, network live viewing, network backup & network playback
- PTZ control (when used with PTZ cameras)
- Composite, VGA & HDMI monitor output • RJ45 ethernet connection
- Mouse & IR remote control
NOTE:
Installations of CCTV systems can vary greatly in configuration and technical complexity. We recommend that unless you have skills in computer networking that you engage a CCTV installer or professional to set up your installation. The process can involve opening router ports, setting up IP routes etc which can be daunting for a beginner. Every installation is different, as a result, it can be difficult to diagnose set up issues over the phone or via email.
Specifications
- Bullet Camera Specifications
- OV4689 4MP Sensor
- 4MP AHD resolution 2560x1440px
- IR Cut
- 30m IR range
- 2 Infra-Red LEDs
- 0.001 Lux
- Vandal resistant
- IP66 rated for outdoor use
- Analog BNC connection
- 2.8mm f2.0 lens
- Size: 157 x 70 x 66mm.
- DVR Specifications
- H.264 compression
- Simultaneous all channel recording
- Near real time recording 15fps per ch. @ 4MP
- Real time 25fps @ 1080p
- AHD/CVI/TVI/IP camera compatible
- 2 SATA HDD bays (12TB max).
- QR code remote viewing app set up
- USB 2.0 ports for backup
- Audio inputs
- Schedule & motion detect recording
- Alarm triggered recording with 4 alarm inputs and 1 output
- Hexaplex operation: preview, recording, playback, network live viewing, network backup & network playback
- PTZ control (when used with PTZ cameras)
- Composite, VGA & HDMI monitor output
- RJ45 ethernet connection
- Mouse & IR remote control
