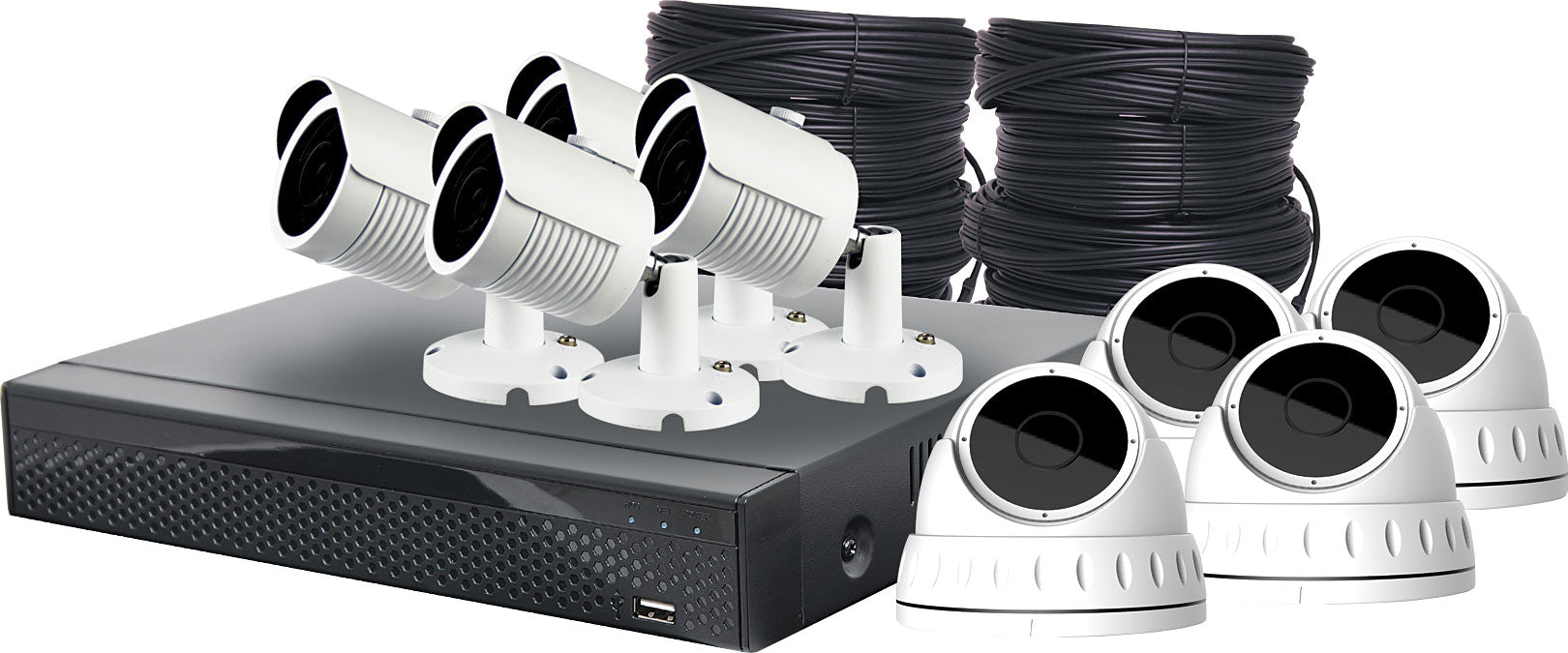

This package is a total home or small business solution as it contains 4 5MP bullet cameras and 4 5MP dome camera to suit a variety of needs and spaces. Cameras plus a surveillance DVR with 5MP recording and more. The solution ideal for homes and small businesses.
Features
- Support AHD/CVI/TVI/IP/Analog Camera Input
- Up to HD 5MP and IP 8MP Resolution Recording
- Support HD Output, VGA and CVBS Video Output
- Support Max. 4CH HD or 16CH IP Camera Input
- Support 1 SATA up to 6TB Capacity
- Includes cameras, digital video recorder, connection leads & power supplies.
- Easily installs in just a few hours.
- Ideal for home or office.
- Suitable for DIY.
- Just add a hard drive and plug it in!
NOTE:
Installations of CCTV systems can vary greatly in configuration and technical complexity. We recommend that unless you have skills in computer networking that you engage a CCTV installer or professional to set up your installation. The process can involve opening router ports, setting up IP routes etc which can be daunting for a beginner. Every installation is different, as a result, it can be difficult to diagnose set up issues over the phone or via email.
Specifications
- Dome Camera Specifications
- Camera
- Video Output Mode: AHD: 5M@20fps/12.5fps, 4M@30fps/15fps; TVI: 5M@20fps/12.5fps, 4M@30fps; CVI: 4M@30fps
- Image Sensor: 1/2.7" OmniVision 5MP CMOS Sensor
- DSP: NVP2475H
- Image Resolution: 5MP
- Effective Pixels: 5M:2592*1944 4M:2560*1440
- TV System: PAL/NTSC
- Electronic Shutter: 1/25s~1/50,000s , 1/30s~1/60,000s
- S/N Ratio: ≥50dB
- Scanning System: Progressive Scan
- Lens
- Focus Length: 3.6mm (2.8mm/6mm Optional)
- Focus Control: Fixed
- Lens Type: Fixed
- Pixels: 5M Pixels
- Auto Iris Support: NO
- Night Vision
- Infrared LED: 14μ x 18PCS
- Infrared Distance: 20M
- IR Status: Under 10 Lux by CDS
- IR Power On: CDS Auto Control
- Camera Features
- Day/Night: YES
- OSD Menu Language: YES
- White Balance: AUTO / MANUAL
- Gain Control: AUTO
- Noise Reduction: 2D/3D NR
- Picture Adjustment: YES
- WDR: YES
- OSD Support: YES
- UTC: YES
- General
- Housing: Metal, IP66
- Bracket: NO
- Dual Voltage: NO
- IR Cut Filter: YES
- Heater: NO
- Operation Temperature: -10° ~ +50° RH95% Max
- Storage Temperature: -20° ~ +60° RH95% Max
- Power Source: DC12V±10%, 500mA
- Dimensions: ¢94.5 x 76(H) mm
- Weight: 450g
- Bullet Camera Specifications
- Camera
- Video Output Mode: AHD: 5M@20fps/12.5fps, 4M@30fps/15fps; TVI: 5M@20fps/12.5fps, 4M@30fps; CVI: 4M@30fps
- Image Sensor: 1/2.7" OmniVision 5MP CMOS Sensor
- DSP: NVP2475H
- Image Resolution: 5MP
- Effective Pixels: 5M:2592*1944 4M:2560*1440
- TV System: PAL/NTSC
- Electronic Shutter: 1/25s~1/50,000s , 1/30s~1/60,000s
- S/N Ratio: ≥50dB
- Scanning System: Progressive Scan
- Lens
- Focus Length: 3.6mm
- Focus Control: Fixed
- Lens Type: Fixed
- Pixels: 5M Pixels
- Auto Iris Support: NO
- Night Vision
- Infrared LED: 42μ x 2PCS
- Infrared Distance: 30M
- IR Status: Under 10 Lux by CDS
- IR Power On: CDS Auto Control
- Camera Features
- Day/Night: YES
- OSD Menu Language: YES
- White Balance: AUTO / MANUAL
- Gain Control: AUTO
- Noise Reduction: 2D/3D NR
- Picture Adjustment: YES
- WDR: YES
- OSD Support: YES
- UTC: YES
- General
- Housing: Metal, IP66
- Bracket: YES
- Dual Voltage: NO
- IR Cut Filter: YES
- Heater: NO
- Operation Temperature: -10° ~ +50° RH95% Max
- Storage Temperature: -20° ~ +60° RH95% Max
- Power Source: DC12V±10%, 500mA
- Dimensions: 157(W) x 70(H) x 66(D)mm
- Weight: 650g
- DVR Specifications
- System
- Main Processor: HI3531A
- Operating System: Embedded LINUX
- Video
- Input: Analog: 8*(TVI/AHD: 5M; AHD/TVI/CVI: 4M; AHD/TVI: 3M; AHD/TVI/CVI: 1080P/720P; Analog: 960H)
- Analog+Network: 6*Analog+10*network(Max 8MP), 4*Analog+12*network(Max 8MP), 2*Analog+14*network(Max 8MP) Network: 32*network(Max 8MP)(Total incoming bandwidth ≤200M)
- Input: 8CH BNC
- Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
- Output: 1 HD Port,1 VGA, 1CVBS
- Audio
- Input: 4Channel, RCA
- Two-way Audio: NO
- Output: 1 Channel, RCA
- Alarm
- Sensor Input: NO
- Output: NO
- Motion Detection: 8 Channel(max 32 Channel in pure network mode)
- Trigger Events: Recording, Alarm, Email, Screen tips, Buzzer
- Email Alarm: Send Image to The Designated E-mail
- PTZ
- Interface: RS485
- Protocol: Pelco-D, Pelco-P
- Baud Rate: 110~921600
- Address: 0~255
- Display
- VGA: Resolution: 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
- HD Output: Resolution:2560*1440/30Hz, 1920 × 1080P/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,1024 × 768/60Hz
- Display Split: 16 Channel/9 Channel/8 Channel/4 Channel / 1Channel
- Privacy Masking: 3 Rectangular Zones (Each camera)
- OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording
- Recording
- Video Compression: H.264
- Audio Compression: G711u
- Resolution: 5MP(2592×1944), 5MP_HALF(1296×1944), 4MP(2560×1440), 4MP_HALF(1280×1440), 3MP(2048×1536), 1080P(1920×1080), 720P(1280× 720), 960H(P:960×576/N:960×480)
- Video Quality: worst/worse/ordinary/well/best
- Record Rate:
- Analog:PAL: 5MP(2592×1944 8*12fps), 5MP_HALF(1296×1944 8*20fps), 4MP(2560×1440 8*15fps), 4MP_HALF(1280×1440 8*25fps), 3MP(2048×1536 8*18fps), 1080P(1920x1080 8*25fps), 720P(1280×720 8*25fps), 960H(960×576 8*25fps)
- Pure IP:PAL: 4k@18×25fps, 5MP@20×25fps, 4MP@28x25fps, 3MP@28×25fps, 1080P@32×25fps, 960P@32×25fps, 720P@32×25fps, D1@32×25fps
- Record Mode: Manual/ Timer/ Motion/ Detection
- Playback & Backup
- Decode Capability: 4CH 1080P@30fps
- Sync Playback: Pure Analog: 8CH 5M@12fps,8CH 4M@15fps, 8CH 3M@18fps, 8CH 1080p@30fps, 2CH HD+14CH IPC: 2CH 5M@30fps, 2CH 4M@30fps, 3CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps 4CH HD+12CH IPC: 2CH 5M@30fps, 2CH 4M@30fps, 3CH 3M@30fps,4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps 6CH HD+10CH IPC: 2CH 4M@30fps, 3CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
- Pure IPC: 2CH 4K@30fps, 4CH 5M@30fps, 4CH 4M@30fps, 4CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
- Remote Playback: 4 Channel / 1 Channel
- Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection
- Playback Function: Play, Pause, Stop, Fast play, Rewind
- Smart Phone Playback: 4 Channel
- Backup Mode: USB Device/Network
- Network
- Interface: 1 RJ45 10M/100/1000M Adaptive Ethernet Interface
- Network Functions: HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS, NTP, FTP, UPNP
- DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES
- Web Browser: IE8-11, Google Chrome (IE Tab), Firefox (IE Tab)
- CMS Software: Support Windows 7/ Windows 8/Windows 10
- Extra Stream: CIF/D1(1~25fps)
- Smart Phone: iPhone, iPad, Android, Android pad
- Hard Disk Driver
- Interface Type: 1 SATA Interface
- Capacity: 2.5"/3.5" SATA, Up to 6TB
- General
- Language: Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek
- UTC Control: YES
- USB Interface: 2 USB 2.0 Interfaces
- Power consumption: DC 12V ≤10W (Without Hard Disk)
- Working Environment: -10~55°C/10~90%
- Dimension: (W×D×H)260*215*43(mm)
- Weight: 2.0kg (Without HDD)
