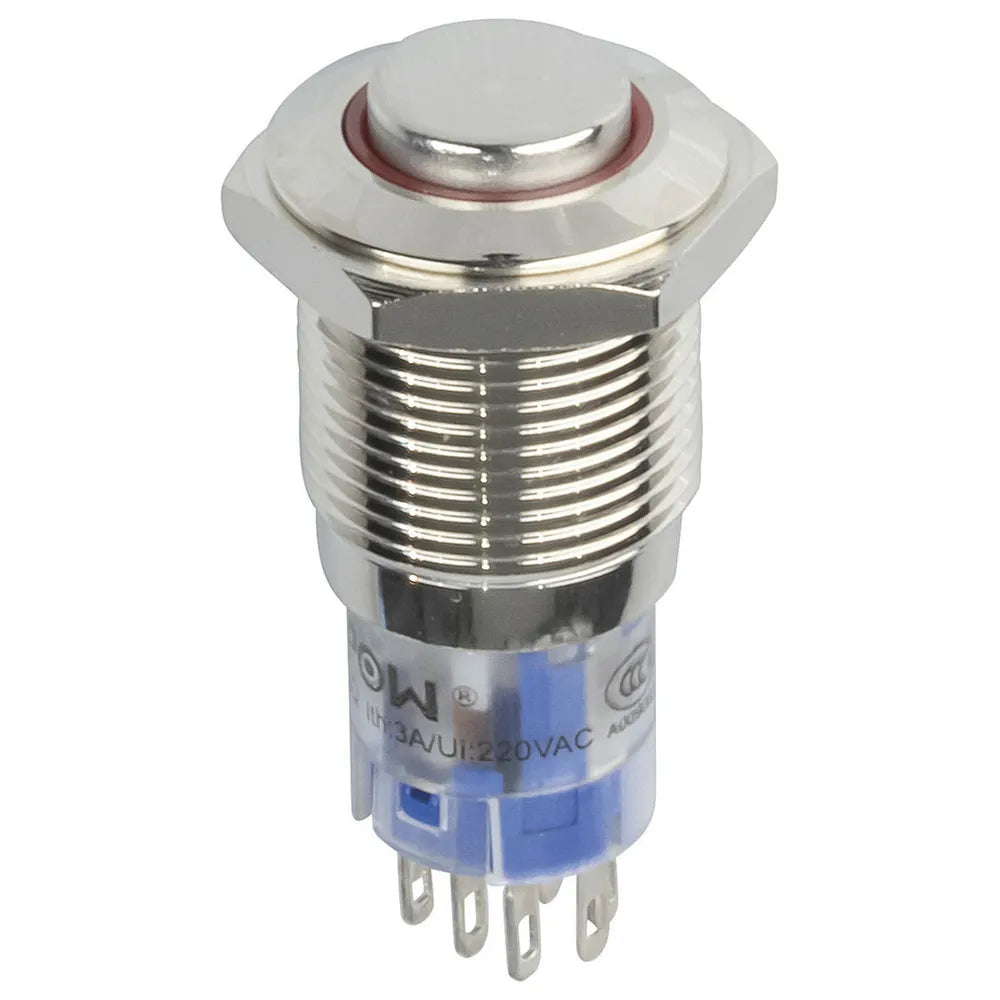

Pushbutton Switch IP67 Rated Illuminated Momentary Switch Red SP0796
Pushbutton Switch IP67 Rated Illuminated Momentary Switch Red SP0796
Regular price
$24.95
Regular price
Sale price
$24.95
Unit price
per
Taxes included.
Couldn't load pickup availability
P67 rated for industrial use or other harsh environments. Illuminated, metal body, DPDT, on-off or momentary action.
Specifications
| Switch Type | Pushbutton |
| Poles / Contacts | 2.0 pole |
| Throws / Positions | 2.0 pos |
| Switch Function | Single Action Momentary |
| Switch Connection | Solder Tags |
| Switch Colour Coded | Red |
| Actuator Length | 20.0 mm |
| Actuator Width | 18.0 mm |
| Pole Throw Type | DPDT |
AC Voltage Rating
| AC Voltage rating | 250.0 V |
AC Current Rating
| AC current rating | 3.0 A |
In-built Illumination
| Illumination Colour | Red |
| Nominal Voltage | 12.0V-12.0V |
| Connection | Solder Tags |
| Type | 5mm Standard LED |
Ingress Protection Rating
| Dust/Particle Ingress Protection | 6 - Dust tight, no ingress of dust |
| Liquid/Moisture Ingress Protection | 7 - Immersion up to 1m |
| IP Rating certificate | true |
| IP Rating | 67.0 |
Product Dimensions
| Height | 40.0 mm |
| Diameter | 22.0 mm |
Packaged Dimensions
| Packaged Dimensions | 4.0cm(Length) x 2.0cm(Width) x 2.0cm(Height) |
