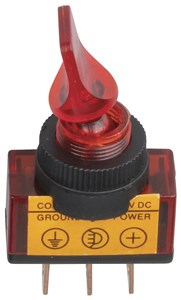

Switch Toggle 12V Illuminated Red ST0580
Switch Toggle 12V Illuminated Red ST0580
Regular price
$4.95
Regular price
Sale price
$4.95
Unit price
per
Taxes included.
Couldn't load pickup availability
Tell instantly if you have an accessory switched on in your vehicle. These illuminated duckbill switches are ideal for driving lights etc etc.
• Rated at 12VDC 10A SPST
• Rated at 12VDC 10A SPST
Specifications
| Packaged Volume : 0.03l |
| Packaged Weight : 0.01kg |
| Packaged Length : 2.5cm |
| Packaged Width : 2cm |
| Packaged Height : 5.2cm |
| Length : 26mm |
| Width : 18mm |
| Height : 55mm |
| DC Voltage : 12V |
| DC current rating : 10A |
| Switch Type : Toggle |
| Poles / Contacts : 1 pole |
| Throws / Positions : 1pos |
| Switch Function : Locking On/Off |
| Switch Connection : Spade Terminals |
| Switch Colour Coded : Red |
| Actuator Length : 17.5mm |
| Actuator Width : 11mm |
| Pole Throw Type : SPST |
| Illumination Colour : Red |
| Nominal Voltage : 12V |
| Connection : Spade Terminals |
| Type : Incandescent |
