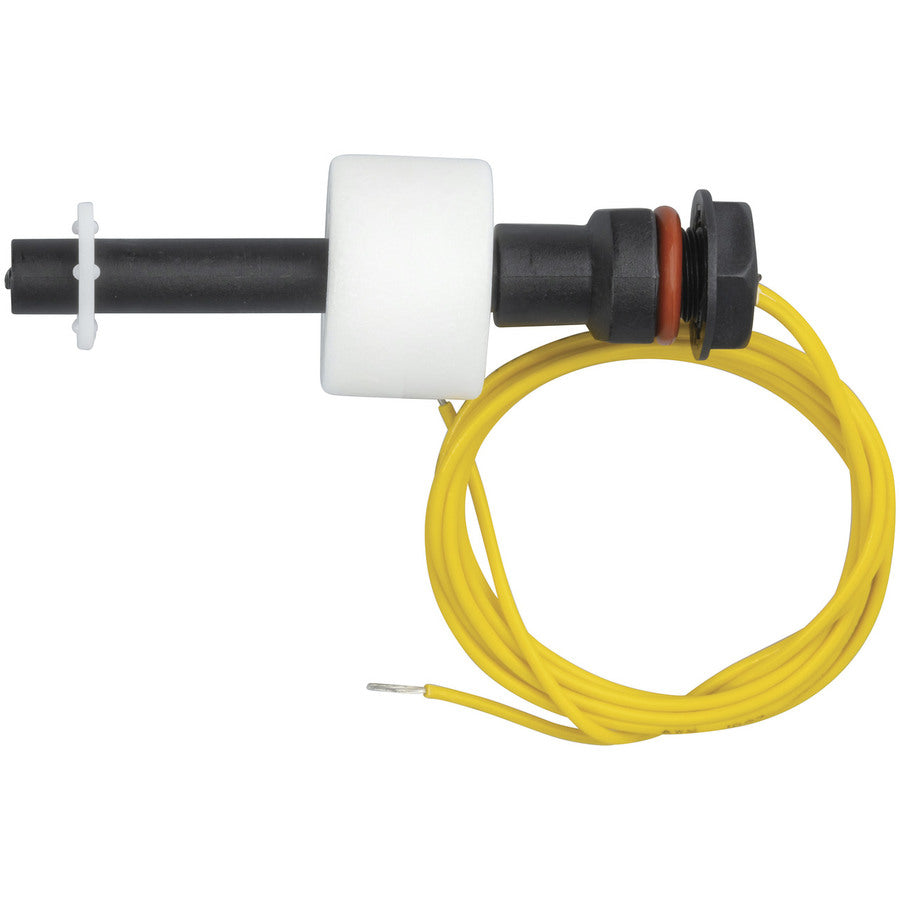

Ideal to control tank filling systems this vertical movement float switch fits quickly to the lid or top cover of a tank or other container. A mere 20mm travel distance for the float will trigger the switch ensuring you leave an air gap and dont overfill the vessel. Contacts are closed when the float is out of liquid and open when the float is elevated.
- Contact Rating: 200V 500mA
- Mounting Diameter: 8mm
Datasheet
Specifications
Electromechanical Switch
Poles / Contacts
|
1 pole |
Switch Type
|
Float |
Throws / Positions
|
1pos |
Product Mounting
Round Mount Hole Diameter
|
8mm |
Mounting Method
|
Panel |
Attachment / Securing Method
|
Collar / Nut |
Max Mount Panel Thickness
|
4mm |
AC Voltage Rating
AC Current Rating
Product Dimensions
Length
|
70mm |
Diameter
|
23mm |
Linear travel details
Linear travel direction
|
Bi-Direction |
Linear travel distance
|
40mm |
Packaged Dimensions
Packaged Volume
|
0.32256l |
Packaged Weight
|
0.014kg |
Packaged Length
|
12cm |
Packaged Width
|
9.6cm |
Packaged Height
|
2.8cm |
