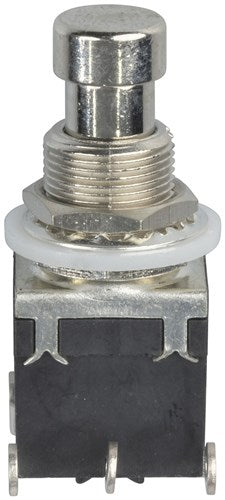

Switch Foot Heavy Duty DPD SP0764
Switch Foot Heavy Duty DPD SP0764
Regular price
$9.95
Regular price
Sale price
$9.95
Unit price
per
Taxes included.
Couldn't load pickup availability
The alternative action switch (push on, push off). Contact rating with resistive load 2A/250VAC. Contact resistance <0.08 ohms
Specifications
| AC current rating : 2A |
| AC Voltage rating : 250V |
| Packaged Volume : 0.08l |
| Packaged Weight : 0.18kg |
| Packaged Length : 7.3cm |
| Packaged Width : 5cm |
| Packaged Height : 2.2cm |
| Switch Type : Foot Pushbutton |
| Pole Throw Type : DPDT |
| Poles / Contacts : 2 pole |
| Throws / Positions : 2pos |
| Switch Function : Locking On/Off |
| Switch Connection : Solder Legs |
| Contact Resistance : 0.08Ω |
| Actuator Length : 24.4mm |
| Actuator Width : 12mm |
